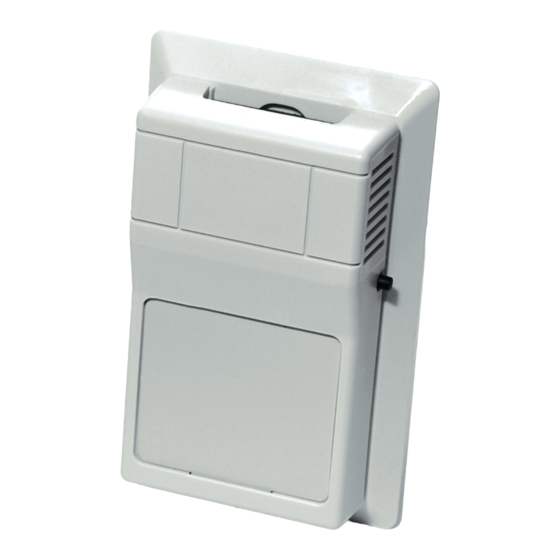

aci ROOM Series Installation & Operation Instructions

ROOM SERIES
Installation & Operation Instructions
PCB: SOLO
PRECAUTIONS
• DO NOT RUN THE WIRING IN ANY CONDUIT
WITH LINE VOLTAGE (24/120/230 VAC).
• THE OPTIONAL ACI/LCD MUST BE POWERED
WITH EITHER A 24 VAC OR 9-35 VDC POWER
SOURCE.
MOUNTING INSTRUCTIONS
Separate the cover from the base. Attach the base
directly to the wall or to a standard 2" x 4" junction box
using the (2) #6-32 x 1" screws provided.
Take care when mounting. Check local code for
mounting height requirements. Typical mounting
heights are 48-60" (1.2-1.5 m) o the ground and at least
1.5' (0.5 m) from the adjacent wall. The sensor should be
mounted in an area where air circulation is well mixed
and not blocked by obstructions.
*Reference FIGURE 2 (next page)
For optimal temperature measurement, follow
these tips:
• Do not install on external walls.
• Avoid air registers, di users, vents, and windows.
• Avoid con ned areas such as shelves, closed
cabinets, closets, and behind curtains.
• Eliminate and seal all wall and conduit penetrations. Air
migration from wall cavities may alter temperature
readings.
• A thermally-insulated backing should be used when
tting to solid walls (concrete, steel, etc.). ACI part:
A/ROOM-FOAM-PAD
• Do not install near heat sources, eg: lamps,
radiators, direct sunlight, copiers, chimney walls,
walls concealing hot-water pipes.
Refer to the wiring instructions (p. 2) to make
necessary connections. After wiring, attach the cover
to the base by snapping the top of the cover on rst
and then the bottom.
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com

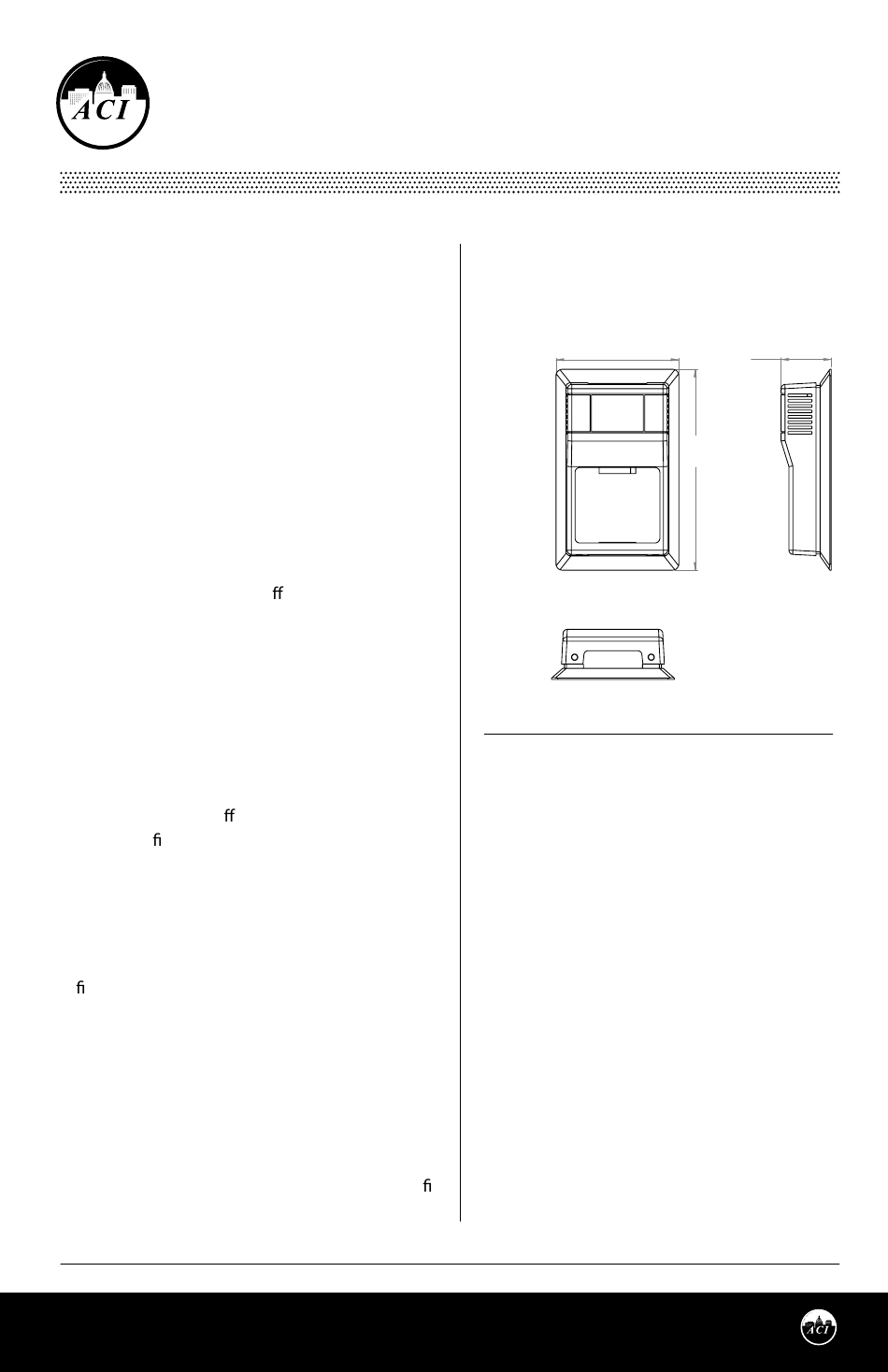

FIGURE 1: ROOM DIMENSIONS
ROOM, VERSION 1
[R]
2.75"
(69.85 mm)
FRONT
BOTTOM
MOUNTING (Continued)
Tighten the cover down, using the (2) 1/16" Allen
screws located in the bottom of the housing. A
1/16" Hex driver is needed to secure the cover to
the base.
Mounting Instructions for optional ACI/LCD
The ACI/LCD is shipped as a two-piece unit. The
LCD Module must be unplugged from the 10 pin
connector before the base of the sensor may be
mounted to either the drywall or over a standard
2" x 4" Junction Box using the mounting
hardware provided. The LCD Module should
then be gently inserted into the 10 pin
connector. The cover may now be placed onto
the unit and tightened down using the (2) Allen
screws at the bottom of the housing.
Page 1
Phone: 1-888-967-5224
Website: workaci.com
1.12"
(28.55 mm)
4.50"
(114.30 mm)
RIGHT
Version: 5.0
I0000345
