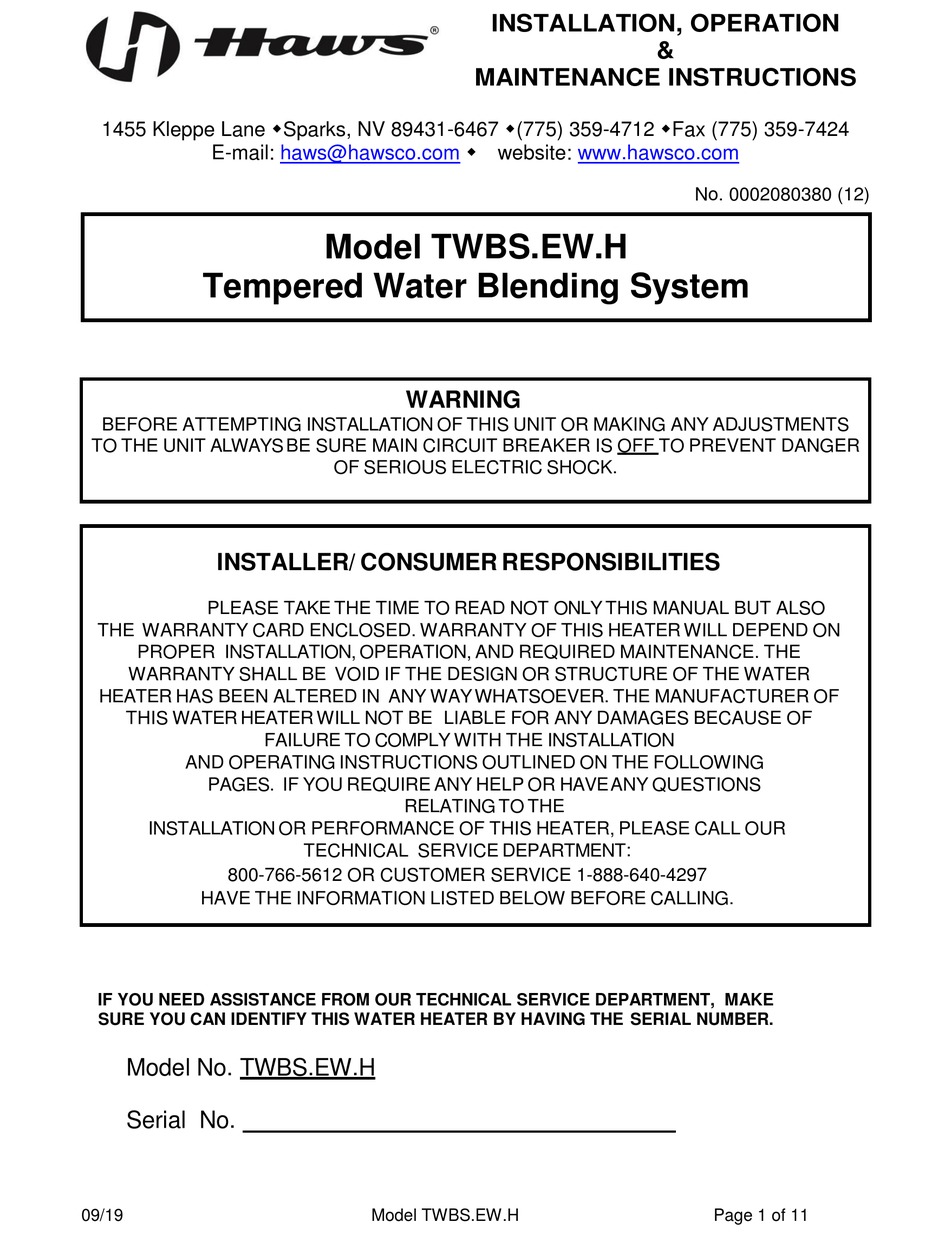

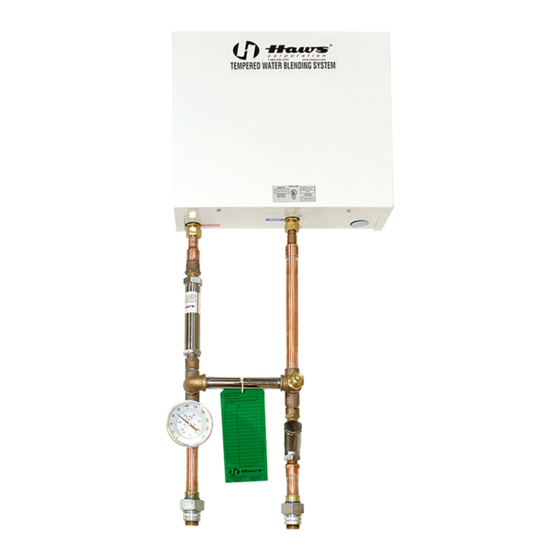

Tempered Water Blending System
BEFORE ATTEMPTING INSTALLATION OF THIS UNIT OR MAKING ANY ADJUSTMENTS
TO THE UNIT ALWAYS BE SURE MAIN CIRCUIT BREAKER IS OFF TO PREVENT DANGER
INSTALLER/ CONSUMER RESPONSIBILITIES
PLEASE TAKE THE TIME TO READ NOT ONLY THIS MANUAL BUT ALSO
THE WARRANTY CARD ENCLOSED. WARRANTY OF THIS HEATER WILL DEPEND ON
PROPER INSTALLATION, OPERATION, AND REQUIRED MAINTENANCE. THE
WARRANTY SHALL BE VOID IF THE DESIGN OR STRUCTURE OF THE WATER
HEATER HAS BEEN ALTERED IN ANY WAY WHATSOEVER. THE MANUFACTURER OF
THIS WATER HEATER WILL NOT BE LIABLE FOR ANY DAMAGES BECAUSE OF
AND OPERATING INSTRUCTIONS OUTLINED ON THE FOLLOWING
PAGES. IF YOU REQUIRE ANY HELP OR HAVE ANY QUESTIONS
INSTALLATION OR PERFORMANCE OF THIS HEATER, PLEASE CALL OUR
800-766-5612 OR CUSTOMER SERVICE 1-888-640-4297
HAVE THE INFORMATION LISTED BELOW BEFORE CALLING.
IF YOU NEED ASSISTANCE FROM OUR TECHNICAL SERVICE DEPARTMENT, MAKE
SURE YOU CAN IDENTIFY THIS WATER HEATER BY HAVING THE SERIAL NUMBER.
Model No. TWBS.EW.H
Serial No.
09/19
haws@hawsco.com
Model TWBS.EW.H
WARNING
OF SERIOUS ELECTRIC SHOCK.
FAILURE TO COMPLY WITH THE INSTALLATION
RELATING TO THE
TECHNICAL SERVICE DEPARTMENT:
Model TWBS.EW.H
INSTALLATION, OPERATION
MAINTENANCE INSTRUCTIONS
website:
www.hawsco.com
&
No. 0002080380 (12)
Page 1 of 11
