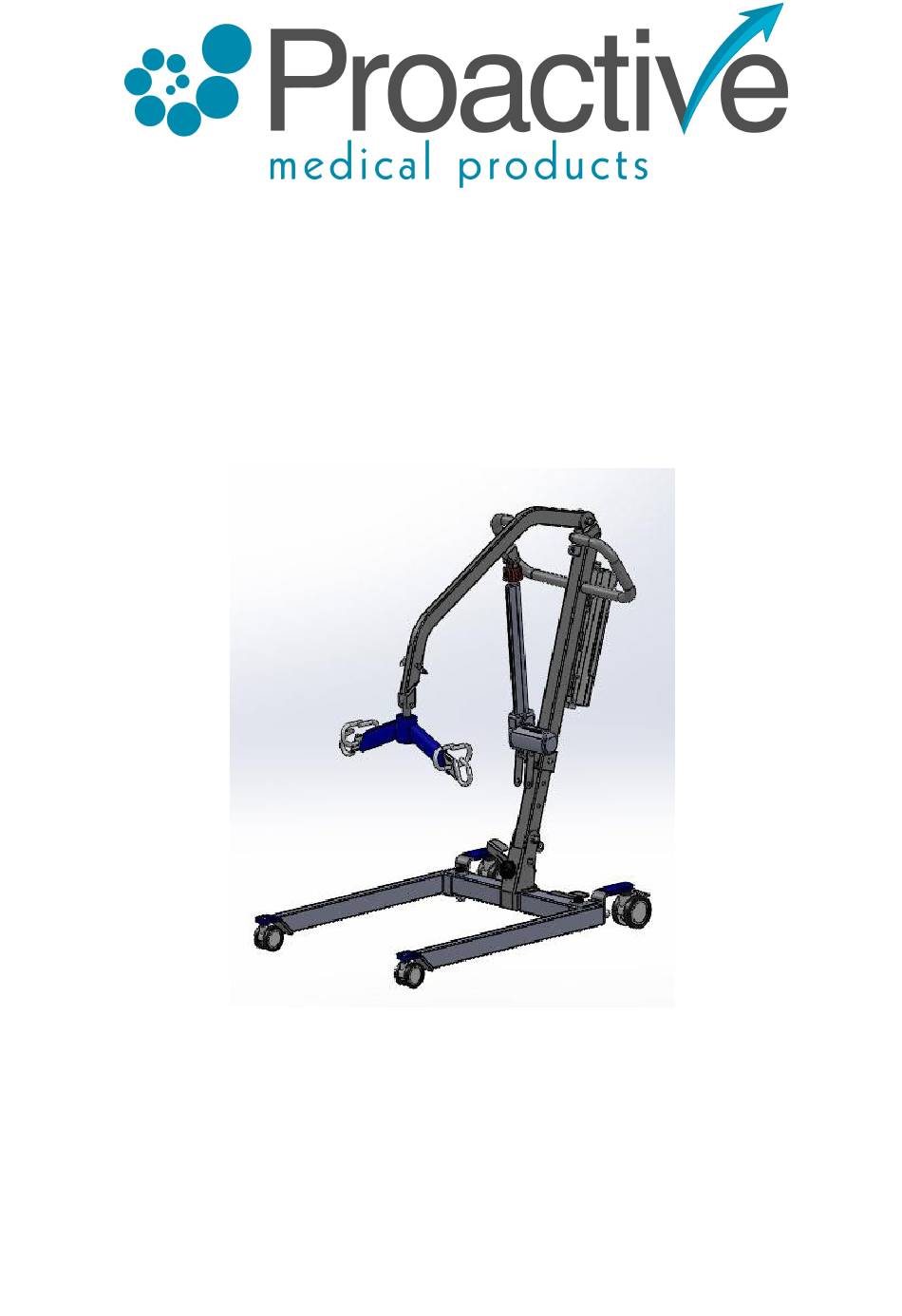

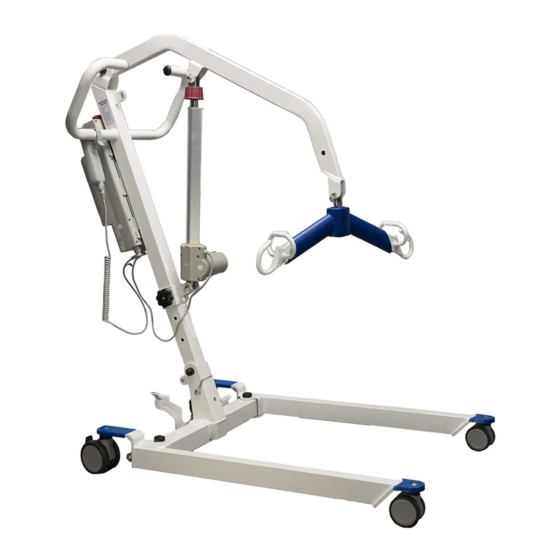

- Page 1 PROTEKT TAKE-A-LONG ® FOLDING ELECTRIC PATIENT LIFT MODEL: 33400P OWNER’S MANUAL 270 Washington Street Mount Vernon, NY 10553 855-237-7622 www.proactivemedical.com...
- Page 2 If the merchandise is received damaged or is missing components, contact the shipping company immediately and file a claim. For further assistance, contact your local dealer or Proactive Medical Products at the following: Proactive Medical Products...
- Page 3 Features Chart: a. Boom b. Mast c. Base d. Spreader bar e. Pendant f. Actuator g. Control box h. Caster with brake i. Front caster j. Emergency Lowering Device Control box on/off and emergency stop button Battery release clip Control buttons LCD screen Battery pack Charger connector...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS The Protekt Take-A-Long 33400P patient lift reflects innovative state of ® the art design to increase user mobility. Your Protekt lift will provide years ® of service if it is properly maintained as any piece of electrical/mechanical equipment requires. Please pay careful attention to the following important information regarding the care, maintenance, and operation of the Protekt Take-A-... - Page 5 ® used to transfer a new user. WARNING! Proactive Medical slings are specially designed to be used in conjunction with Proactive lifts. Do not use slings manufactured by other companies with any of Proactive Medical’s equipment. USING OTHER MANUFACTURER’S SLINGS ON THIS EQUIPMENT IS UNSAFE AND MAY RESULT IN SERIOUS INJURY TO USERS AND CAREGIVERS.
- Page 6 WARNING! Service and repair of this equipment should be performed only by an authorized dealer. Proactive Medical is not responsible for any consequence resulting from any unauthorized service or repair. CAUTION Avoid damage to the Protekt Lift 33400P by keeping foreign ®...
- Page 7 ASSEMBLY INSTRUCTIONS WARNING! The lift is heavy! Therefore, avoid injury and DO NOT attempt to remove the lift from the box without any assistance. Assemble the patient lift in accordance with the following instructions: Engage the brakes. Remove the Black Hand nut from the bottom of the Step 1.
- Page 8 A. Remove another QR pin which is connected to the bottom of Actuator Step 2. and Boom. Leave the QR pin on Boom as below left picture. B. Attach the top of the Actuator to the bracket on the Boom and insert pin.
- Page 9 Step 3. Attach the Control Box to the Mast and tighten two screws. Insert the Actuator plug into the Control Box. Step 4. Insert the Pendant plug into the Control Box. Step 5. Actuator plug Pendant plug NOTE: Prior to using the Protekt Lift 33400P, charge the batteries for 10-12 hours.
-
Page 10: Maintenance & Inspection Check List
MAINTENANCE & INSPECTION CHECK LIST The operator is to inspect the Protekt Take-A-Long Lift 33400P prior to ® each use. Check all bolts for tightness. Make sure the base can be easily widened, and that all lift parts are in place. Make sure all casters turn freely, and that the caster brakes can be engaged. - Page 11 USER GUIDE CHARGING THE BATTERY The lift can be charged by plugging the charger directly into the control box while it is attached to the lift. The battery pack can be charged while seated in the (optional) wall/ desk charging caddy. OPERATING INSTRUCTIONS —...
- Page 12 Raise / Lower Lift Long press to raise lift Long press to lower lift 3. Press the bu�on to raise or the bu�on to lower the lift. OPERATING INSTRUCTIONS — USING THE HAND PENDANT Raise / Lower Lift Long press to raise lift Long press to lower lift...
-
Page 13: Maintenance Schedule
MAINTENANCE SCHEDULE In the Every 3 Item Monthly Months Beginning Boom & Spreader Bar: Check connections between 1) Boom and Spreader ● ● Bar and 2) Boom and Mast for improper connection, looseness, or wear. Check the Boom for bending and deflection. ●... - Page 14 OPERATING INSTRUCTIONS NOTE: Turn the lift “ON” by turning the red “RESET” button clockwise. Turn the lift “OFF” by pressing down the “RESET” button. Transfer From Bed User/patient should be in the center of the bed. Position user onto his/her side by rolling user towards you. ...
- Page 15 • Lift patient above the wheelchair by using the hand control. • Pull lift away from wheelchair. Position patient over bed and lower patient onto it. Note: Reverse the above procedures when returning the user/patient to a wheelchair. WARNING! Use ONLY Proactive Medical slings/products with this equipment.
-
Page 16: Emergency Lowering Mechanism
EMERGENCY LOWERING MECHANISM In case of lift failure while using the Protekt Lift 33400P, please follow the ® procedures below to safely lower the user. The Emergency Lowering Device is located at the top of the actuator shaft. It is intended for use if the actuator fails to operate while a patient is suspended. - Page 17 Full Body Mesh Slings ITEM # DESCRIPTION 30110 Medium Mesh full body: medium 600 lb. weight capacity 30111 Large Mesh full body: large 600 lb. weight capacity 30124 X-Large Mesh full body: X-large 600 lb. weight capacity 30118 XX-Large Mesh full body: XX-large 600 lb. weight capacity Full Body Mesh Slings w/Commode ITEM # DESCRIPTION...
- Page 18 Divided leg design is best suited for high level spinal cord injuries or patients where sling removal is more difficult. Support ranges from the upper back to beneath the thighs. Can be positioned with patient seated. Greatly simplifies the use of bathroom facilities. Divided Leg Slings ITEM # DESCRIPTION...
-
Page 19: Troubleshooting Chart
TROUBLESHOOTING CHART The following list of encountered problems and their solutions will assist you in determining what may be causing your Proactive Medical lift not to function as designed. If you have a problem occurring which is not listed below, contact Proactive Medical or an authorized Proactive distributor for further information. - Page 20 LIMITED WARRANTY purchaser. This warranty shall be voided upon transfer of ownership of this product. The repaired or replacement unit shall be warranted for a period equal to the balance of the A detailed description of the problem and its symptoms on a note. This warranty shall not apply to any product which has been repaired or altered in any way so as, in our judgment, to affect its functionality and durability, nor to any product subject to abuse, misuse, negligence or accident, improper maintenance, improper installation, nor to...
