American Security Products Co.

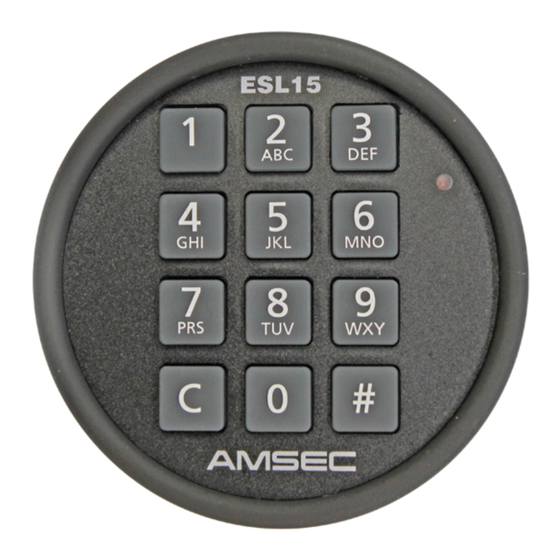

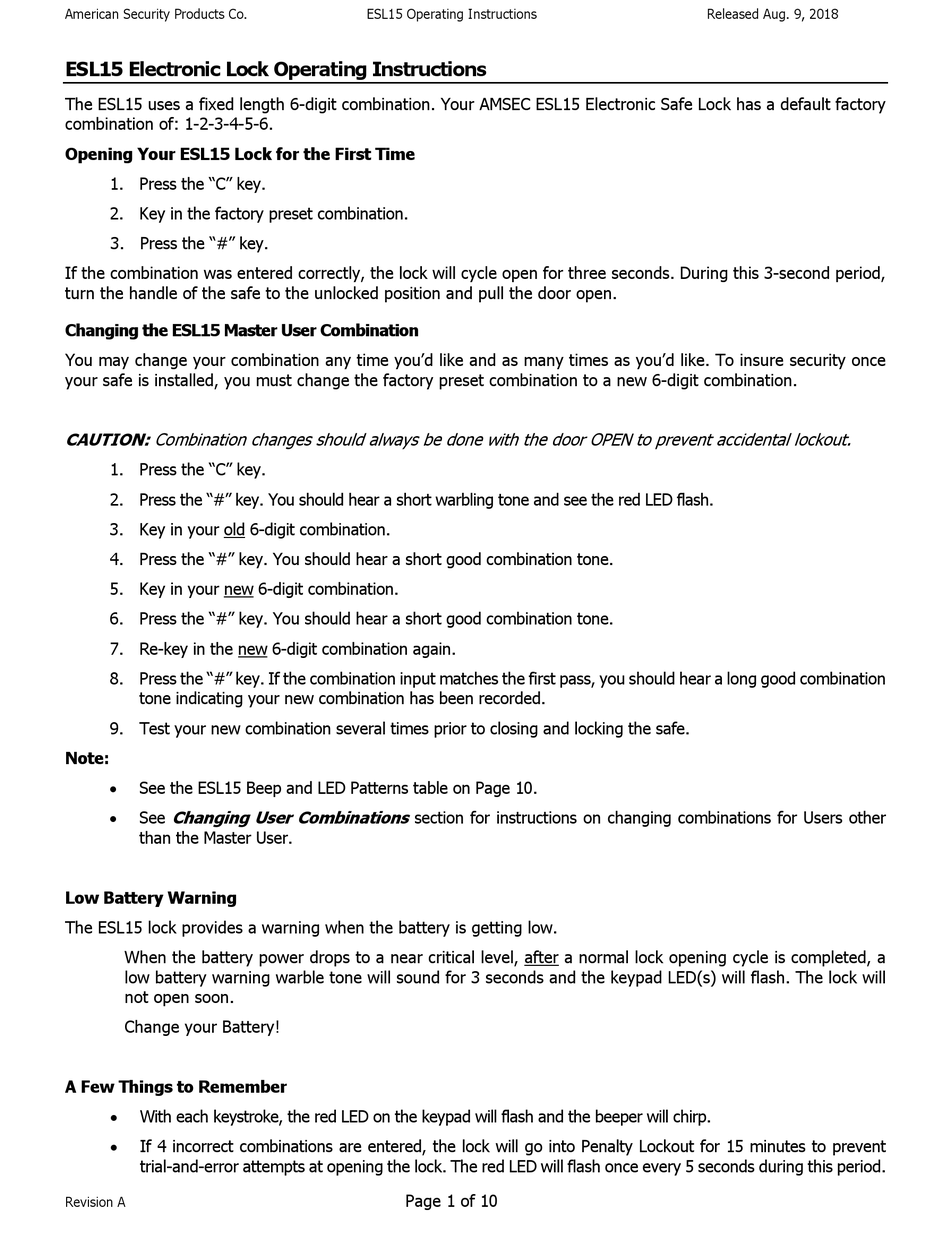

ESL15 Electronic Lock Operating Instructions
The ESL15 uses a fixed length 6-digit combination. Your AMSEC ESL15 Electronic Safe Lock has a default factory
combination of: 1-2-3-4-5-6.
Opening Your ESL15 Lock for the First Time
1. Press the "C" key.
2. Key in the factory preset combination.
3. Press the "#" key.
If the combination was entered correctly, the lock will cycle open for three seconds. During this 3-second period,
turn the handle of the safe to the unlocked position and pull the door open.
Changing the ESL15 Master User Combination
You may change your combination any time you'd like and as many times as you'd like. To insure security once
your safe is installed, you must change the factory preset combination to a new 6-digit combination.
CAUTION: Combination changes should always be done with the door OPEN to prevent accidental lockout.
1. Press the "C" key.
2. Press the "#" key. You should hear a short warbling tone and see the red LED flash.
3. Key in your old 6-digit combination.
4. Press the "#" key. You should hear a short good combination tone.
5. Key in your new 6-digit combination.
6. Press the "#" key. You should hear a short good combination tone.
7. Re-key in the new 6-digit combination again.
8. Press the "#" key. If the combination input matches the first pass, you should hear a long good combination
tone indicating your new combination has been recorded.
9. Test your new combination several times prior to closing and locking the safe.
Note:
See the ESL15 Beep and LED Patterns table on Page 10.
Changing User Combinations
See
than the Master User.
Low Battery Warning
The ESL15 lock provides a warning when the battery is getting low.
When the battery power drops to a near critical level, after a normal lock opening cycle is completed, a
low battery warning warble tone will sound for 3 seconds and the keypad LED(s) will flash. The lock will
not open soon.
Change your Battery!
A Few Things to Remember
With each keystroke, the red LED on the keypad will flash and the beeper will chirp.
If 4 incorrect combinations are entered, the lock will go into Penalty Lockout for 15 minutes to prevent
trial-and-error attempts at opening the lock. The red LED will flash once every 5 seconds during this period.
Revision A
ESL15 Operating Instructions
section for instructions on changing combinations for Users other
Page 1 of 10
Released Aug. 9, 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AMSEC ESL15
Summary of Contents for AMSEC ESL15
- Page 1 ESL15 Operating Instructions Released Aug. 9, 2018 ESL15 Electronic Lock Operating Instructions The ESL15 uses a fixed length 6-digit combination. Your AMSEC ESL15 Electronic Safe Lock has a default factory combination of: 1-2-3-4-5-6. Opening Your ESL15 Lock for the First Time 1.
-
Page 2: Replacing The Batteries
When opening or changing the combination on your lock, the ESL15 will register the first 5 digits of the combination into the buffer that receives input. The 6th digit will be the last numeric key pressed. For example, if you press C-1-2-3-4-5-7-4-5-2-7-6-# the program recognizes only the C-1-2-3-4-5-6-# input. - Page 3 Advanced Access Control Features The ESL15 is a Digital Safe Lock with many advanced features that address commercial and retail safe access control. These features include the following. Note that reference to Function Codes are abbreviated to F(2-digit code). See the Function Code Table for reference.
- Page 4 American Security Products Co. ESL15 Operating Instructions Released Aug. 9, 2018 Subordinate User Control - The Master User has the option of allowing, or not allowing, certain capabilities of the Subordinate Users as follows. The Subordinate User changing their own combination. (F60) Two Subordinate Users opening the safe in Dual Combo Mode.
- Page 5 Feature Setting with Function Codes. The ESL15’s advanced features are controlled only by the Master User, and are set using Function Codes. A function can be turned on and off, or set, using the Function Code with the Master User code as authorization for changing or setting the function.
- Page 6 American Security Products Co. ESL15 Operating Instructions Released Aug. 9, 2018 A Function is “set” in the following standard sequence: C - # - (2 Digit Function Code) - # - (Master User Code) - # - (Function Setting) - # After each “#”, a Short Good Combo Tone (Short Warble) will be given, until the last “#”...
-
Page 7: Mixed Modes
American Security Products Co. ESL15 Operating Instructions Released Aug. 9, 2018 To Enable 2 Subordinate User Opening in Dual Combo Mode: C - # - 31 - # - (Master Code) - # - 1 - # Disable 2 Subordinate User Opening in Dual Combo Mode: C - # - 31 - # - (Master Code) - # - 0 - # Armored Car TDL Bypass (Functions 40 &... -
Page 8: Record Keeping
American Security Products Co. ESL15 Operating Instructions Released Aug. 9, 2018 Record Keeping To track Function Settings, use this table: Date Function Description Range Time Delay Mode 1 or 0 Time Delay Period 1-99 Open Period Multiple User Mode 1 or 0... - Page 9 This is the #1 cause of opening issues. Symptoms of a low battery can include lack of keypad response to input or lack of bolt actuation (clicking sound) after inputting your combo. The ESL15 does not have a low battery indication.
-
Page 10: Beeper Behavior
American Security Products Co. ESL15 Operating Instructions Released Aug. 9, 2018 ESL15 Beep and LED Patterns Beeper Sounds Standard Beep: A short, distinct beep Warble: A high-low-high-low beep-chain, sounds like “dee-del-dee-del-deee.” Beeper Behavior Beep Pattern Description 1 Beep - Response to any keystroke during input...
