Summary of Contents for Cub VS-95A042
-
Page 3: Table Of Contents
CONTENTS 1. WARNING ..........1 2. -
Page 5: Warning
STAY VIGILANT AND ALERT IN ALL DRIVING CONDITIONS, TO OBEY ALL THE SAFE DRIVING STANDARDS, PRACTICES, TRAFFIC RULES AND REGULATIONS. 2. CUB DOES NOT GUARANTEE 100% ACCURACY IN THE DETECTION OF VEHICLES OR PEDESTRIANS, AND THEREFORE DOES NOT GUARANTEE THE PERFORMANCE OF ANY RELATED AUDIO OR VISUAL WARNING SIGNALS. -
Page 6: System Contents

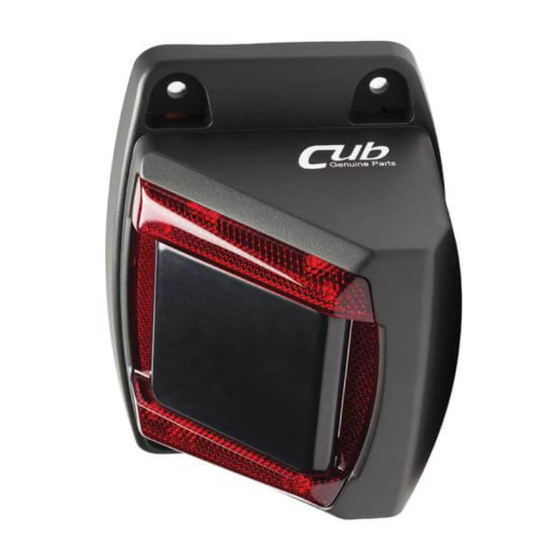

2. SYSTEM CONTENTS ITEM PICTURE Right RV Radar Left RV Radar Radar Mounting Gasket Control Unit Right Indicator Left Indicator Buzzer Manual Set /Accessories RV BLIND SPOT DETECTION SYSTEM: For Motorhomes... -
Page 7: Introduction
3. INTRODUCTION s designed to aid in detecting vehicles that may have entered The RV Blind Spot Detection System i the vehicle blind spot zone, which is represented by the vehicles in the diagram below. The detection area is on both sides of your vehicle, extending rearward from the vehicle to approx- imately 30 feet beyond the bumper. -
Page 8: Door Open Warning (Dow)
4. SYSTEM SPECIFICATIONS 5. DOOR OPEN WARNING (DOW) The Door Open Warning (DOW) is activated under two conditions; when the engine is on and the hazard indicators are activated, or five minutes after stopping the engine. An audible tone will be heard and the warning indicator lamp will flash when an object or vehicle is within the warning zone or if there is a vehicle detected approaching at high speeds resulting in an impact of less than 2 seconds. -
Page 9: Operation
7. OPERATION Indicator Left Side Blind Spot Indicator Right Side Blind Spot Indicator POWER button System Power 1. The system will automatically activate when the ignition is turned on. The warning indicator lamps illuminate for 3 seconds during startup. 2. The system may be deactivated by pressing and holding the POWER button 3 seconds, the indicator lamps will blink twice to confirm. -
Page 10: Error Diagnostics
8. ERROR DIAGNOSTICS It is possible that the Blind Spot Detection System will trigger an alert even though there is no vehicle in the blind spot zone. The Blind Spot Detection System can detect objects such as: construction barrels, guard rails, lamp posts, etc. Occasional false alerts are normal. STATUS SOUND Controller HMI CAN TX Failed... -
Page 11: Troubleshooting
9. TROUBLESHOOTING ISSUE SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION The system does not Confirm that the IGN, Incorrect connection or respond after starting wiring, fuse, and control unit failure the engine controller are connected. Damaged indicator Contact your dealer The indicator does not light up Disconnected indicator Verify connection... - Page 12 714.784.6687 www.RVBlindSpot.com cs@novusradar.com 250 Benton Ct, Cit y of Industr y, CA • • •...
