Summary of Contents for Cub PUR-TPMS

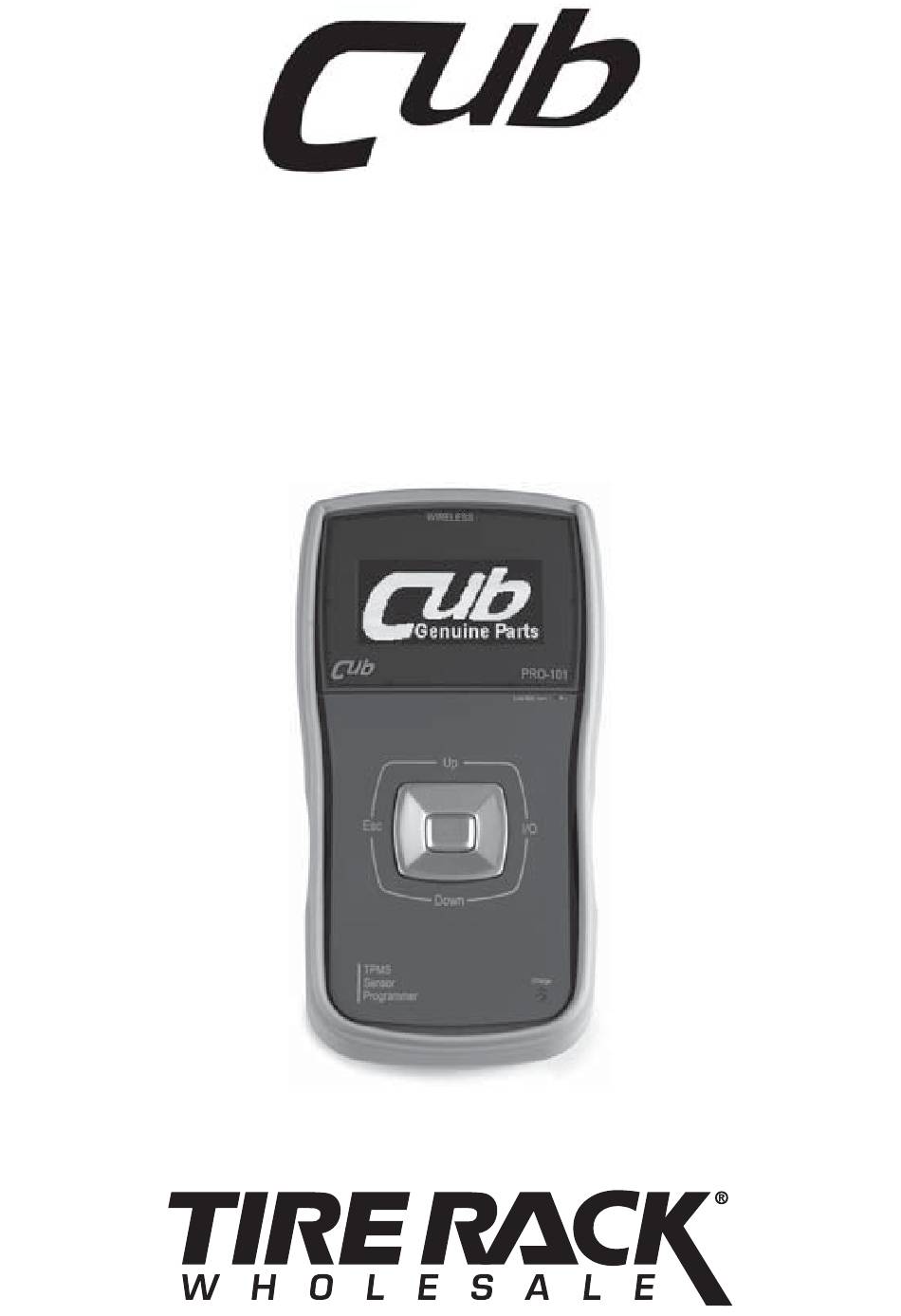

- Page 1 PUR-TPMS User Guide Manufactured By CUB Elecparts Inc. Distributed By...
-
Page 2: Table Of Contents
PUR-TPMS Programming Function Menu ......9-17 Section 6 PUR-TPMS Scan Tool Update Software ......18-23 Important Notice: CUB-PUR tire pressure monitoring sensors do not function on all vehicles. Please call the United States Distributor of CUB-PUR TPMS products (800-596-5090) with any vehicle application inquiries. 800-445-0179... -
Page 3: Introduction
TPMS. The PUR-TPMS Scan Tool is not compatible with retro-fitted TPMS and will not scan aftermarket retro-fitted sensors. The protocols for different makes of vehicles can be programmed into the PUR-TPMS Sensors which will be recognized by the vehicle’s receiver. -
Page 4: Introduction
Scope of Use and Warnings This PUR-TPMS Sensor is a sensing device designed to measure and display tire operation and/or to alert the driver when air pressure and temperature irregularities are detected. It is the responsibility of the driver to react promptly. -

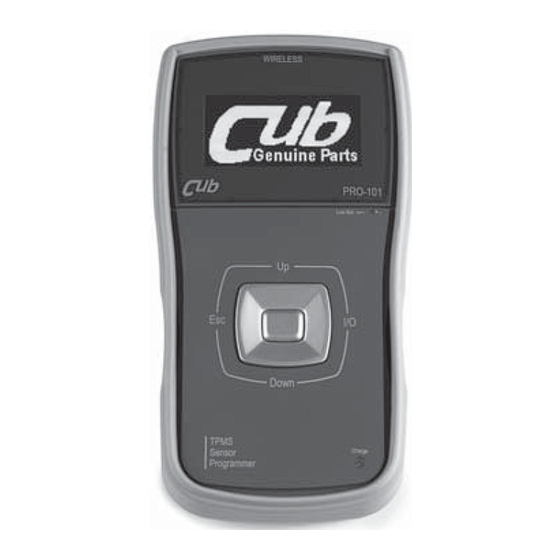

Page 5: Pur-Tpms Scan Tool Function Buttons
Section 2: Function Buttons PUR-TPMS Scan Tool Function Buttons ....On / Off ....Scroll page up (next page) Down ....Scroll page down (last page) ....Escape Enter ....Center button Low Bat ...Battery power low Charge ....Lit during charging. Light turns off when... -
Page 6: Getting Started
Section 3: Getting Started Getting Started Charger Please use the charger that is provided, which is direct current 14–18 volts. Input current is 100–250 volts AC. Battery Charging The tool uses six-AA rechargeable lithium batteries. When the Low Bat light is lit, recharge the tool for 2.5–3.5 hours. During charging, the Charge light will be lit. -
Page 7: Pur-Tpms Scan Tool Programming Instructions
Section 4: Programming Instructions PUR-TPMS Scan Tool Programming Instructions Welcome Image Main Menu Two functions in Main Menu: 1. To select a vehicle model 2. To update the latest software edition into the tool (See page 18 for more details) Use the Up and Down buttons to select;... - Page 8 Section 4: Programming Instructions Select a Vehicle (Make) To select a vehicle make, press Up and Down to select, Enter to go on to the next step, or press Esc to go back to previous menu. Select a Model When the make is decided, select a specific model on this menu and press Enter to go on to the next step, or press Esc to go back to...
-
Page 9: Pur-Tpms Programming Function Menu
Section 5: Programming Function Menu PUR-TPMS Programming Function Menu Three choices for sensor functions: 1. Scan Used when scanning O.E. or programmed CUB sensors. The function is also used when activating the sensor for certain vehicle’s registration procedures. 2. Copy Sensor Used to clone an existing O.E./... - Page 10 The same procedure can be followed when scanning a programmed CUB sensor, as long as the make, model and year is known. 800-445-0179...
- Page 11 Section 5: Programming Function Menu Follow the pictures below to ensure you are correctly using the tool. Pay attention to the correct direction and position when triggering the sensor in the tire. 800-445-0179 ©2008 TR...
- Page 12 Section 5: Programming Function Menu Make sure the tool is close to the valve, and the front end of the tool leans on the tire, but not the wheel. 800-445-0179 ©2008 TR...
- Page 13 2a. Search Sensor ID This function is used when you would like to clone an existing O.E. or CUB sensor. This is useful when an end user has two sets of wheels/tires. The user will be able to have two identical sets of...
- Page 14 Press Enter (as instructed on the screen) to program the ID into CUB’s sensor. To do this, put the CUB sensor at the top of the tool and press Enter. Important Notice: Please put other sensors at least 15 feet away or there might be some interference and the incorrect sensor may be programmed.
- Page 15 Section 5: Programming Function Menu The screen shown here will be displayed while programming. When the screen shown below to the right appears and two beep tones are heard, the process has been performed successfully. To double check if this is indeed what you need, press Esc to go back to the operation menu and scan the sensor again.
- Page 16 Screen 1 will be displayed. When you see Screen 2, you can proceed with sensor programming. Place the CUB PUR-TPMS Sensor at the top of the tool and press Enter. Important Notice: Please put other sensors at least 15 feet away or there might be some interference and the incorrect sensor may be programmed.
- Page 17 Screen 2 and hear two beep tones. Screen 1 After the programming process is done, fit CUB’s new sensors into the wheels and you can perform the vehicle’s sensor registration procedure. Refer to the vehicle’s owner’s manual for the registration procedure.
- Page 18 USB cable provided. To get started, you need to download the driver onto your computer by using the CD that is provided in the kit. Go to CUB’s website: www.cubelec.com.tw Click the Download tab, then click PUR-TPMS Tool Update. Then follow the steps provided online.
- Page 19 Section 6: Tool Update Software Click Next and the following displays will appear in sequence: 800-445-0179 ©2008 TR...
- Page 20 Section 6: Tool Update Software Check the Launch the CP210x VCP Driver Installer box, then click Finish. The following display will appear. Click Install, and the following screen will be shown after the installation is completed. The USB driver is now installed successfully.
- Page 21 Section 6: Tool Update Software To install the CUB TPMS Programmer, double click the icon labeled CUBprogrammerSETUP The following screens will appear. Click the Next buttons until installation is complete. The main program is now installed successfully. 800-445-0179 ©2008 TR...
- Page 22 Section 6: Tool Update Software Connect the tool to your computer by using the USB cable provided in the tool kit to upgrade the program to include new vehicle applications. Press Connect under the tool in power on/power off status. The following screen will appear on your computer.
- Page 23 Section 6: Tool Update Software Make sure the tool is turned on and enter the update level, then press the tool’s center button. Click Update on the screen displayed on your computer to start the data updating. After it finishes updating, the tool will beep twice, and the following screen will appear on your computer.
- Page 24 800-445-0179 www.tirerackwholesale.com ©2008 TR...
