- S t i c h s ä g e
D r u c k l u f t
5 1 2 1 2 0 0 5 0
Electric

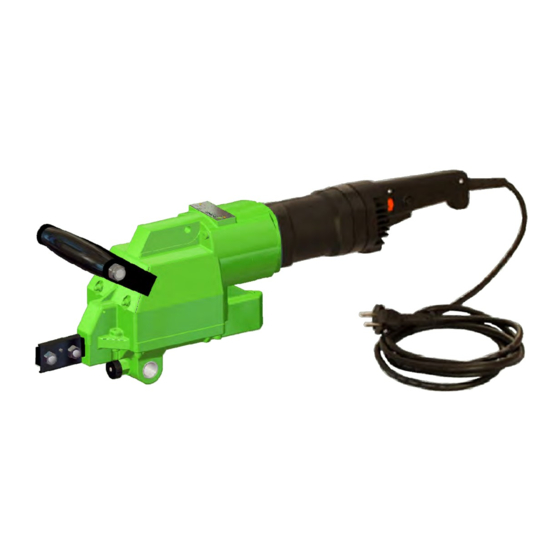

Reciprocating Saw
Type 5 1215 0050
Original-Betriebsanleitung, erstellt:
Translation of the original manual,
13.07.18
compiled: 20.04.16
Operation
and Maintenance Manual
512150050_BA_en_Version_03.doc
Illustration can differ from the original
Advertisement
Table of Contents
Related Manuals for Sunitec 5 1215 0050
Summary of Contents for Sunitec 5 1215 0050
- Page 1 - S t i c h s ä g e D r u c k l u f t 5 1 2 1 2 0 0 5 0 Electric Reciprocating Saw Type 5 1215 0050 Illustration can differ from the original Operation and Maintenance Manual Original-Betriebsanleitung, erstellt: 512150050_BA_en_Version_03.doc...
-
Page 2: Table Of Contents
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Directory Page Signal Word and Symbol Definition Technical Specification Product Description Identification... -
Page 3: Signal Word And Symbol Definition
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Signal Word and Symbol Definition The signal words and symbols used in the technical documentation (safety instructions, operating booklet, etc.) have the following meaning: WARNING WARNING –... -
Page 4: Technical Specification
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Technical Specification Nominal voltage 230 V ~ Power 1.2 kW Frequency... -
Page 5: Product Description
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Product Description Fig. 1 1 On-Off-Switch 5 Gear head 9 Locking device 2 Lock button 6 Handle... -
Page 6: Startup
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Startup Electrical connection Check if the nominal voltage conforms with the specification on the type sign of the electric motor. +/- 5% voltage deviation is permitted. - Page 7 R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Start / Stop The integrated full-wave electronics ensure a soft start, a pre-adjusted speed via the adjusting wheel in the handle and prevents from overload.
- Page 8 R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Steel wire Profile Use of sticky tape Use of wedge with without...
-
Page 9: Basic Safety Instructions
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Basic Safety Instructions Read operation instructions/safety instructions! Before working on or with the tool, read the safety instructions and follow the instructions during operation. -
Page 10: Explanation Of Symbols For Protective Equipment And For Accident Prevention
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Explanation of Symbols for Protective Equipment and for Accident Prevention Use protective clothes –... -
Page 11: Safety Instructions For Avoiding Safety Hazards
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Safety Instructions for Prevention of Workplace Hazards WARNING –... - Page 12 R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Safety Instructions for Prevention of Hazards caused by electrical voltage WARNING –...
- Page 13 R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Safety Instructions for Prevention of Entanglement Hazards CAUTION –...
- Page 14 R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Remark: Some types of metal may have toxic coatings. Please pay particular attention to avoid skin contact and breathing in, when working with those materials.
-
Page 15: Service And Maintenance
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Service and Maintenance Basic Safety Instructions: WARNING – Danger to life due to electric shock! Maintenance and repair work on electric equipment. -
Page 16: Disassembly - Re-Assembly
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Additionally to the measures described before, it is a must to check the grease in the gear and to fill it up or replace it, if necessary. -
Page 17: Environmental Regulations
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Environmental Regulations When working on or with the equipment, it is imperative to observe all legal requirements in regards to waste-disposal and proper recycling. -
Page 18: Warranty And Liability
R e c i p r o c a t i n g S a w E l e c t r i c 5 1 2 1 5 0 0 5 0 Warranty and Liability Unless otherwise specified, our „General Sales Terms” apply. Warranty and liability claims in regards to persons or equipment damages are invalid, if one or more of the following causes apply: ... -
Page 19: Declaration Of Conformity
Description: Electric Reciprocating Saw Model: 5 1215 0050 in the version supplied by us, complies with the EMV-EU-Directive 2014/30/EU, EU-Directive 2011/65/EU and European Union Machine Directive 2006/42/EC. Applied harmonized norms are: DIN EN ISO 12100... - Page 20 22 Harbor Avenue Tel.: 203-853-9522 • 800-700-5919 Norwalk, CT 06850 USA Fax: 203-853-9921 E-Mail: info@csunitec.com 4330 Center Street Deer Park, TX 77536 USA www.csunitec.com Tools for the Specialist Original-Betriebsanleitung, 512150050_BA_en_Version_03.doc erstellt: 20.04.16...
