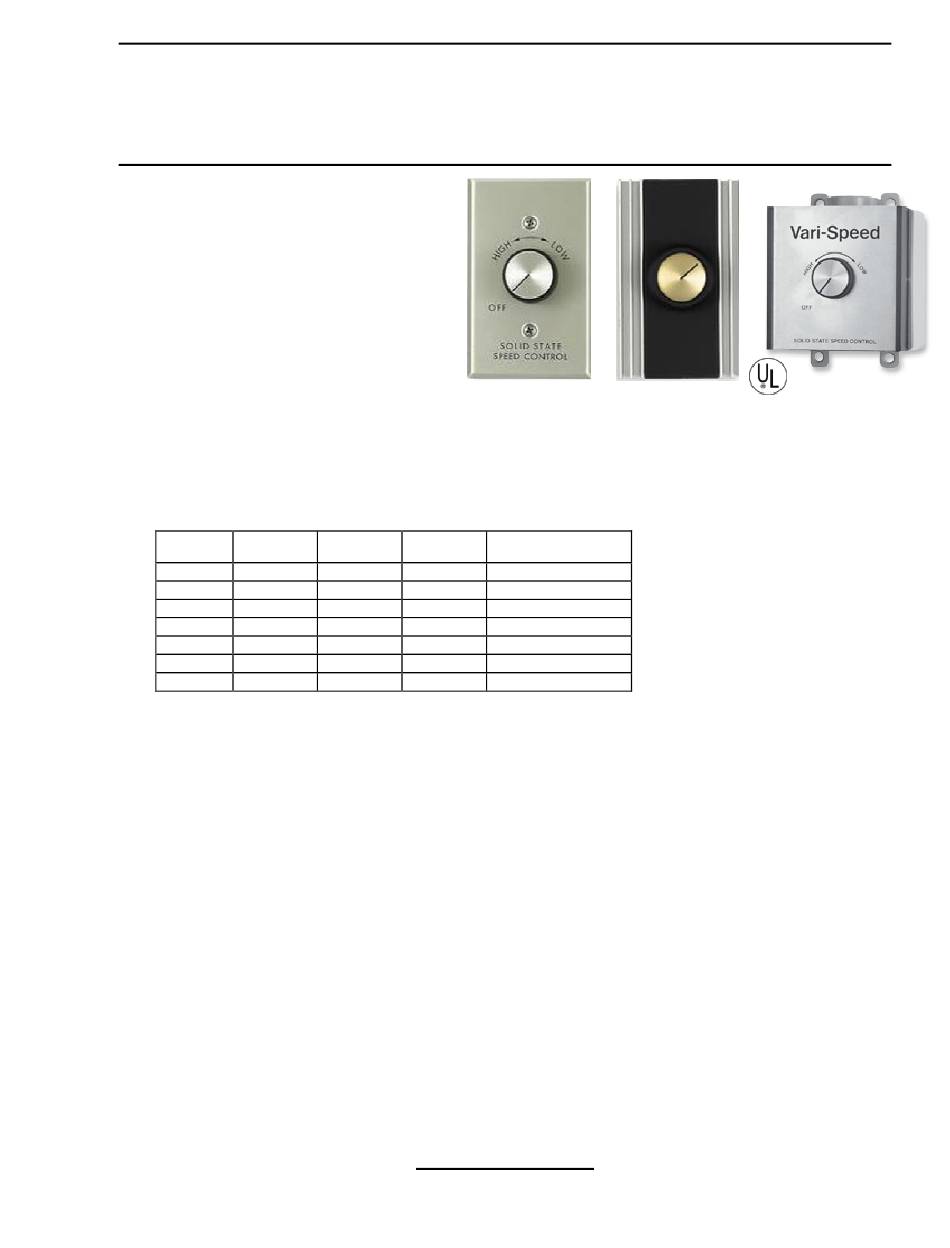

Envirofan 100F Installation And Operating Instructions

Envirofan Adjustable Speed Controls
Installation and Operating Instructions
Models 100F 105F 150F 200F 215F 277V-5 277V-6

Features:

On/Off rotary switch
•
Broad range of speed control
•
Specifically designed for 2"x4" wall box
•
mount
Includes faceplate, knob, and hardware
•
Minimum speed adjustment
•
UL recognized
•

Specifications:

Model Volts
100F 120V
105F 120V
150F 120V
200F 120V
215F 120V
277V-5 277V
277V-6 277V

Description:

Envirofan speed controls are a comprehensive line of motor speed controls for air-moving applications
which utilize Shaded Pole, Permanent Split Capacitor (PSC), and Universal motors.
Envirofan controls provide adjustable speed operation to permit the consumer individual selection of air
volume, motor speed, and noise level. These economical controls are designed to replace obsolete,
tapped winding, or reactive methods of speed control. The models cover a wide range of amperages
from 2.5 through 15 amps that allow for the selection of the most economical control for the application.

Warranty:

One full year from date of purchase. Obtain a return merchandise authorization (RMA) from Northwest
Envirofan, and return according to RMA instructions. Northwest will repair or replace at their option and
return post paid. Enclose a description of apparent problem. Warranty does not cover misuse, abuse,
alterations or repair without authorization from Northwest.
This control is to be used only with fans marked as suitable for use with solid state speed controls. This
control is suitable for mounting in a metal or polymetric field enclosure. Control must not be used at
ratings exceeding those clearly marked on the device.
Technical specifications subject to change without notice.
Envirofan and Agrifan Overhead Ceiling Fans - Fan Controls - Protecto-Guard Ceiling Fan Guards
920-235-7808
Model 100F
Model 105F
Model 277V-5
Model 277V-6
Max Amps Watts Maximum # of Fans
(Envirofans)
2.5 Amps 300 W 2 fans
6.0 Amps 600 W 5 fans
8.0 Amps 800 W 8 fans
12.0 Amps 1200 W 12 fans
15.0 Amps 1500 W 15 fans
5.0 Amps 1375 W 10 fans
6.0 Amps 1600 W 12 fans
Northwest Envirofan
800-236-7080 FAX 920-235-3049
Model 150F
(277V)
(277V)
www.envirofan.com
Model 200F
Model 215F
