Envirofan Speed Controls
Installation and Operating Instructions

Specifications:

Model
Volts
100F
120V
105F
120V
Application:
Motor type: Shaded Pole, P.S.C., and Universal

Warning:

Disconnect power supply before wiring connections are made to prevent possible
electrical shock or damage to equipment. Read and follow instructions carefully.
Failure to comply with instructions could result in fire, electrical shock, injury to
persons, and/or damage to equipment.
1.
Control must be grounded when installed.
2.
All wiring should conform to the National Electrical Code and local regulations.
3.
Never connect control across line voltage - connect control in series with motor and line voltage.
4.
Do not exceed maximum amperage rating of the control.
5.
Do not mount in an area that will allow the control to come into contact with moisture.

Installation and Operation:

1.
Turn power off at circuit breaker panel or fuse box.
2.
Mounting: Use standard 2" single or double gang wall box. Connect only to line voltage shown on control.
3.
Run conduit between the wall box, power source and the fan units being controlled. Leave approximately
six inches of wire in the box for connections (see figure 1).
4.
Make wiring connections (see figure 2). Connect control leads as per diagram to switch box leads. Make
sure wire strands are straight and attach the wire leads of the control to the circuit wires by twisting them
together. Twist a wire nut onto each connection.
5.
Check all connections for tightness, leave no exposed copper conductor.
6.
Position connections in box, leaving room for control.
7.
Install speed control in wall box using screws supplied. Secure control with outer bracket tabs.
8.
Install front dial plate. Note: Model 100F has permanently attached faceplate.
Remove protective plastic on face of dial plate if applicable.
9.
Turn main control shaft counter-clockwise until a click is heard.
10. Attach control knob by pressing onto shaft firmly so that pointer is in off position.
11. Restore power at circuit breaker panel or fuse box.
12. To turn control on, turn knob clockwise until a click is heard. To decrease fan speed, continue rotating knob
clockwise to desired speed setting.

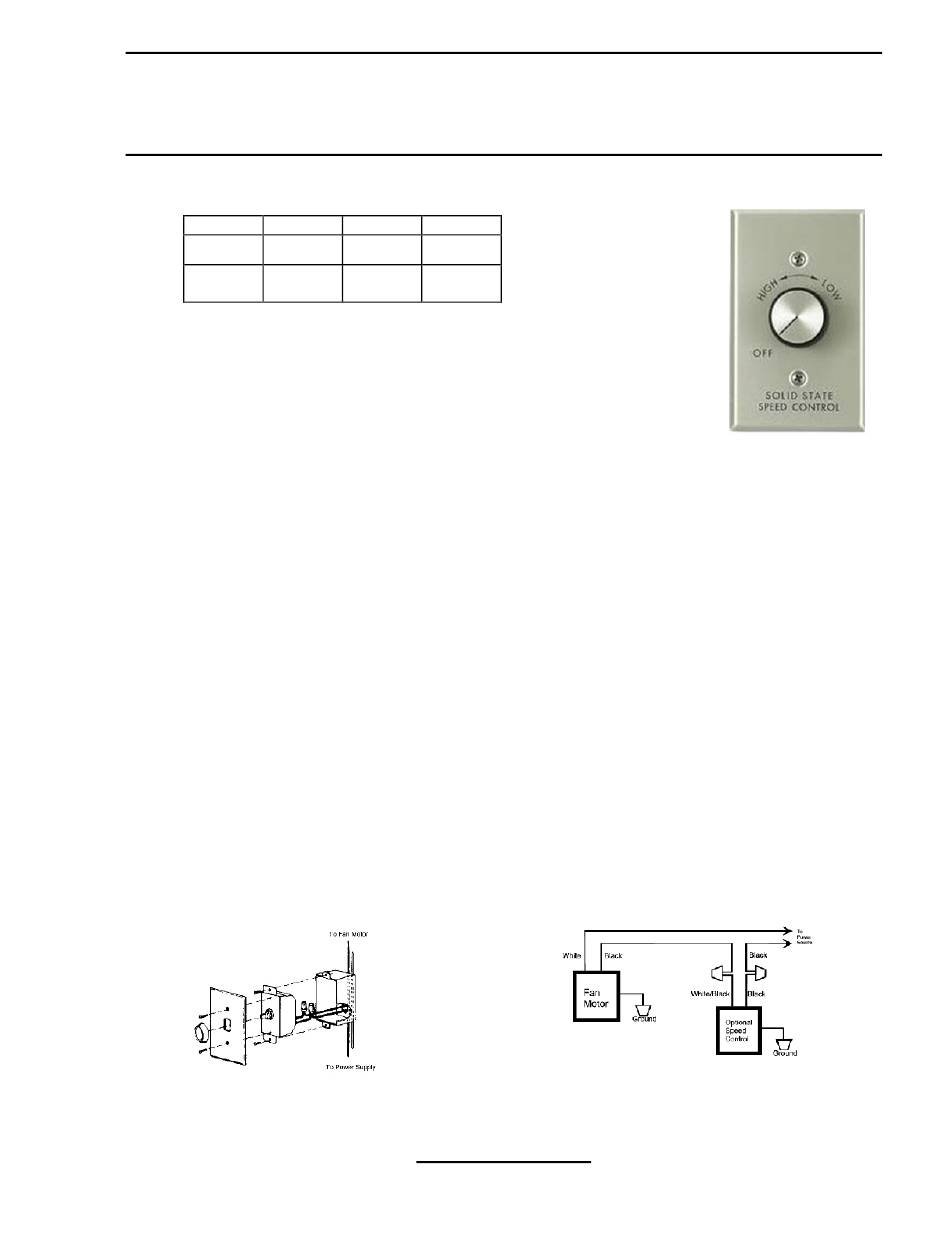

Figure 1 – Mounting
Note: Model 100F has permanently attached faceplate.
Envirofan and Agrifan Overhead Ceiling Fans - Fan Controls - Protecto-Guard Ceiling Fan Guards
920-235-7808
Max Amps
Watts
2.5 Amps
300 W
6.0 Amps
600 W
Northwest Envirofan
800-236-7080
FAX 920-235-3049
Model
100F 105F
Figure 2 – Wiring
www.envirofan.com
\\Mpc5\c\Data_files\SC\SC100105.DOC 080109
