Summary of Contents for jbc JT-QD

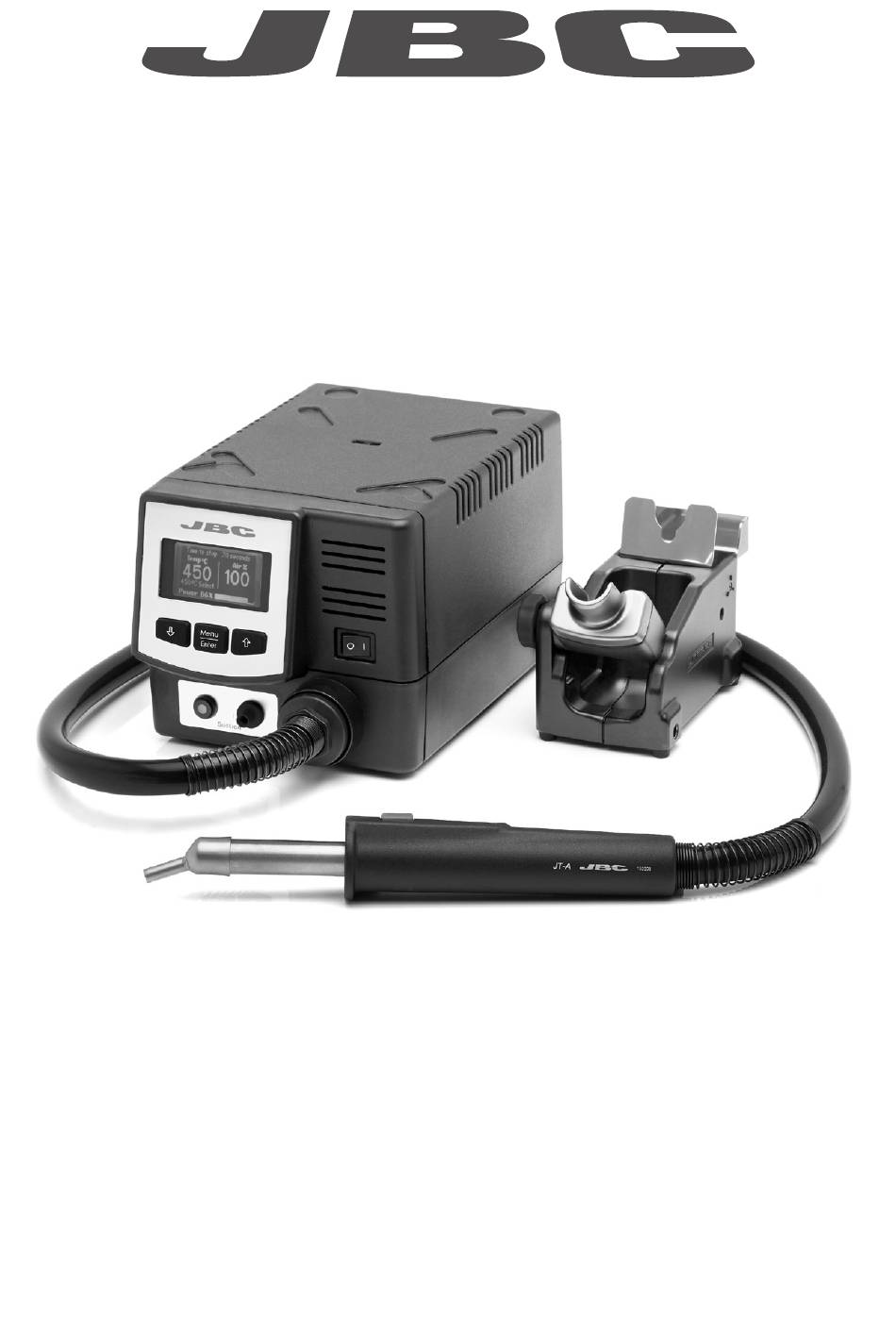

- Page 1 Page English Deutsch Hot Air Station without extractor desk Ref. JT-QD...
-
Page 2: Packing List
JTE-9D (100V) Stand ............1 unit Nozzles ............1 unit Ref. JT-SD Ref. JN2015 JN2012 JN2020 Power Cord ..........1 unit Manual ............1 unit Ref. 0009417 (100V/120V) Ref. 0016476 0009401 (230V) www.jbctools.com Hot Air Station without extractor desk Ref. JT-QD... -
Page 3: Adjustable Stand
Features Adjustable Stand Adjust the tool holder angle to suit your work position. USB-B connector Update the station software from the JBC website Activates the suction pump Operation Modes Heating element 1. From the main Menu, select the mode to activate the tool depending on the task. -
Page 4: Operation
w w w.jbctools.com Quick Nozzle Changer Operation Changing nozzles quickly and safely. 1. Placing 2. Heating 3. Releasing Turn the tool off and handle with care. The heating element and the nozzle are still hot. Position the extractor with the Heat the component. - Page 5 The station can store up to 25 temperature programs. T e m p 3 0 0 B a c k The first three programs are edited by JBC as an example. A i r 1 0 0 E x i t...
-
Page 6: Replacing The Heating Element
w w w.jbctools.com Replacing the Heating Element Hot Air Accessories (not supplied with JT-Q) Only perform this operation when the element is cold and the unit is disconnected from the mains. Find the model that best suits your soldering needs in www.jbctools.com 1. -
Page 7: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. -
Page 8: Specifications
w w w.jbctools.com Safety Specifications It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. JT-1QD 120V 50/60Hz. Input fuse 8A. Rated current: 6A. Control Unit model: JTE-1D JT-2QD 230V 50/60Hz. Input fuse 4A. Rated current: 3A. Control Unit model: JTE-2D JT-9QD 100V 50/60Hz. -
Page 9: Spezifikationen
w w w.jbctools.com Spezifikationen Exploded View · Explosionszeichnung JT-1QD 120 V 50/60 Hz. Eingangssicherung 8 A. Nennspannung: 6 A Steuereinheit Modell: JTE-1D JT-2QD 230 V 50/60 Hz. Eingangssicherung 4 A. Nennspannung: 3 A Steuereinheit Modell: JTE-2D JT-9QD 100 V 50/60 Hz. Eingangssicherung 8 A. Nennspannung: 7 A Steuereinheit Modell: JTE-9D - Gewicht: 6.7 kg (14.7lb) - Abmessungen: 148 x 184 x 140 - Nennleistung: 700 W... -
Page 10: Warranty
Warranty Garantie JBC’s 2 year warranty covers Die 2-Jahres-Garantie von JBC this equipment against all ersteckt sich auf das Gerät bei manufacturing defects, including Herstellungsfehlern, einschließlich the replacement of defective Fehlern der Verarbeitung und parts and labour. dem Ersatz defekter Teile und Warranty does not cover product deren Austausch.
