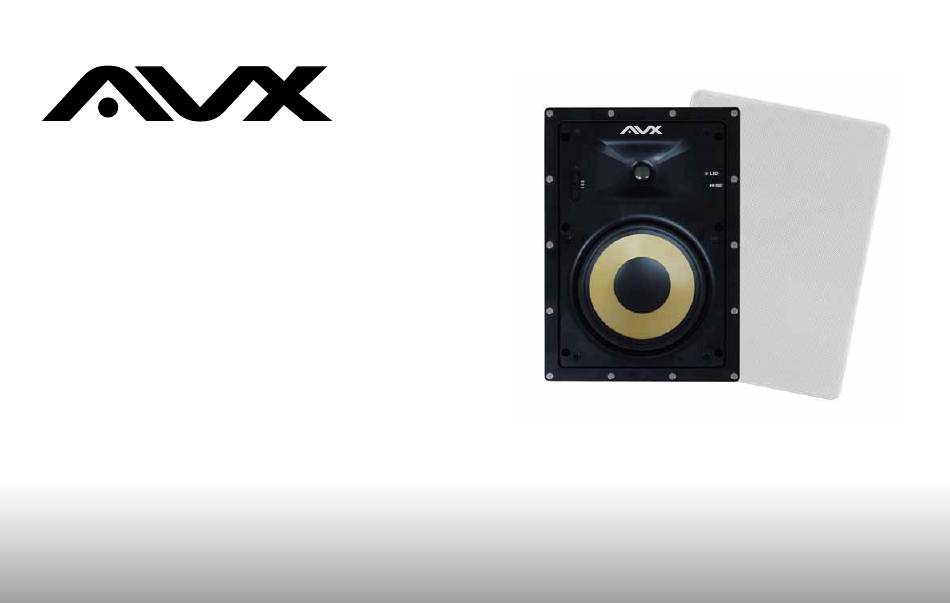

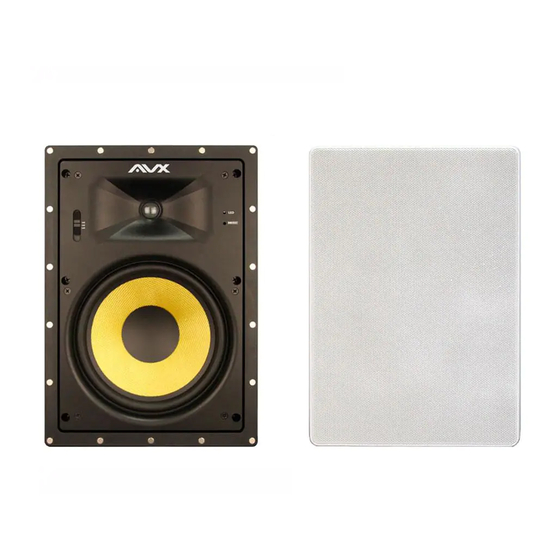

- Page 1 #InWallSpeakers In-Wall Bluetooth Speakers Model AVX-BT6IW • AVX-BT8IW INSTALLATION MANUAL...
- Page 2 GRAB YOUR TOOLS Tools Needed for Installation • Drywall Saw • Utility Knife • Level • Wire Strippers • Phillips Screwdriver • Drill • Masking Tape • Pencil • Fiberglass Push Rods • Rubber Gloves • Measuring Tape • Cold Beverage..You're ready! LET’S DO THIS!
-
Page 3: Installation Instructions
WARNING Installation Instructions TEST THE SOUND SYSTEM NOTE: SOUND QUALITY OF THESE SPEAKERS WILL BE VERY DIFFERENT OUT OF THE WALL BEFORE THE INSTALLATION VS. HOW THEY SOUND INSTALLED WHEN THEY ARE INSTALLED IN THE WALL. SOUND QUALITY WILL BE NOTICEABLY IMPROVED ONCE THESE SPEAKERS ARE INSTALLED IN THE WALL. - Page 4 Determine Stereo Speaker Placement Check for any obstruction Choose Your Speaker Placement Location Carefully. Given the nature of 8’ - 10’ in-wall speakers, once they’re installed they can not be adjusted. Optimal placement of the in-wall speakers must be determined BEFORE you start the actual installation.
- Page 5 Use Cut-Out Template for the Speakers STEP 1 Find studs with the stud finder. *Insert favorite stud joke here... Use the cut-out template. Tape the template to the wall where you want the speaker and trace an outline with a pencil. Use a level to make sure the template is properly aligned and...
- Page 6 Measure and cut the speaker openings Drill a 1/2" hole in the four corners of the template. STEP 2 Using a manual drywall saw or razor blade, cut around all four edges of the cut-out and remove the piece of drywall.
- Page 7 Route speaker cables STEP 3 ENSURE SNAKE AND SPEAKER WIRE ARE SECURELY TAPED TOGETHER Running wires behind baseboards: Remove the baseboards and cut a channel into the bottom of the drywall or plaster for SPEAKER WIRE the wires and then reinstall the baseboards. (Fish tape or fish rod may be required) SNAKE...
-
Page 8: Install The Speakers
Install the speakers STEP 4 Test the area to make sure that the in-wall speaker will fit perfectly. Carefully push the speaker into the hole until it is in place. Make sure the dogleg clamps hold the in-wall speaker in place. Tighten the screws with the screwdriver. - Page 9 Test the whole system STEP 5 Admire your work! Turn on the system and Turn on the system and test the speakers for test the speakers for sound. (Don’t turn it on at full volume) awesome sound! No Stairway! AC/DC Adapter (Connect to only one Wall Outlet speaker, this is the...
- Page 10 Install speaker grill covers SPECS: Part Number AVX-BT6IW Paint the speaker grill covers to match the room décor STEP 6 or not! Working voltage 15V/2.4A Music Power Signal to noise ratio 80dB Channel: Stereo Operating frequency 2.4GHZ Part Number AVX-BT8IW Working voltage 20V/2.4A...
- Page 11 Bluetooth Speaker Operation 1.) Connect speaker wire to ‘+’ and ‘-‘ output on powered speaker. 2.) Connect speaker wire to ‘+’ and ‘-‘ input on passive speaker ensuring polarity is the same on both speakers (IE: red to red and black to black).
- Page 12 Briefly press 3.) Enable Bluetooth on your streaming device and search for device Switch play/pause “AVX-BT6IW” for 6.5 inch models or ”AVX-BT8IW” for those with 8 Long press to exit inch models. Bluetooth 4.) To Play music: press the Play / Reset Button. Blue LED will flash slowly.
