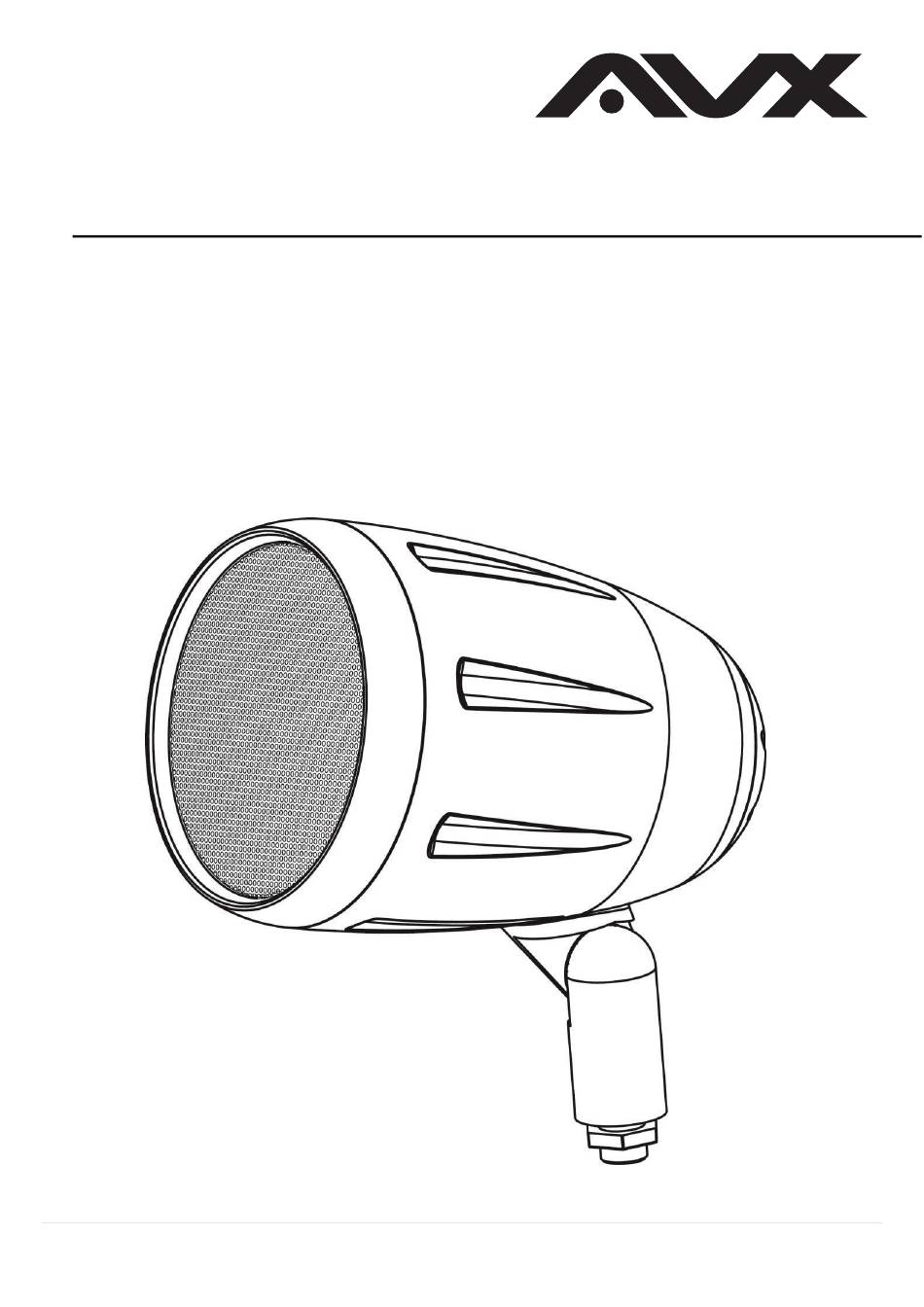

OWNER'S MANUAL
AVX-SAT4 / AVX-SAT6
70V / 100V / 8 ohm Outdoor Landscape Speakers
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVX-SAT4 and is the answer not in the manual?

Questions and answers

Related Manuals for AVX AVX-SAT4

Summary of Contents for AVX AVX-SAT4

  • Page 1 OWNER’S MANUAL AVX-SAT4 / AVX-SAT6 70V / 100V / 8 ohm Outdoor Landscape Speakers...

  • Page 2: Important Safety Instructions

    Explanation of Graphical Symbols The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence CAUTION VORSICHT of uninsulated ‘dangerous voltage’ within the product’s BEFORE OPENING VOR DEM OFFNEN enclosure that may be of sufficient magnitude to constitute a PULL MAIN PLUG NETZSTECKER ZIEHEN risk of electric shock to persons.
  • Page 3 WARNING Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following: Location Connections •Before connecting the device to other devices, turn off the power for all devices.

  • Page 4: Installation

    INSTALLATION Determining Loudspeaker Locations Plan locations with no more than 25'-30' spacing between satellite speakers. 70/100 volt systems can be fine-tuned further using the wattage tap setting to determine the final volume of each loudspeaker. Landscape speakers should be installed at ground level using the included ground spikes. Mounting Considerations Clearance around the speaker is required for installing, connecting, and adjusting the angle of the sp eaker.
  • Page 5 Warning! The SAT loudspeaker tap must be set accordingly for the AVX-SAT4 type of amplifier in use (8Ω or 70/100volt). Setting the transformer incorrectly for the amplifier used will cause damage to speakers and...

  • Page 6: Specifications

    51.5*51*36.5cm/4pcs/11.5KG TROUBLESHOOTING AVX loudspeakers are designed to function trouble-free. Most problems that occur are due to simple wiring and setup issues. If you have trouble, please check the list of simple fixes below or contact one of our helpful AVX support representatives at 877-302-8397.
