Next BARLOW 824328 Assembly Instructions Manual

Console bookcase

Advertisement

Quick Links

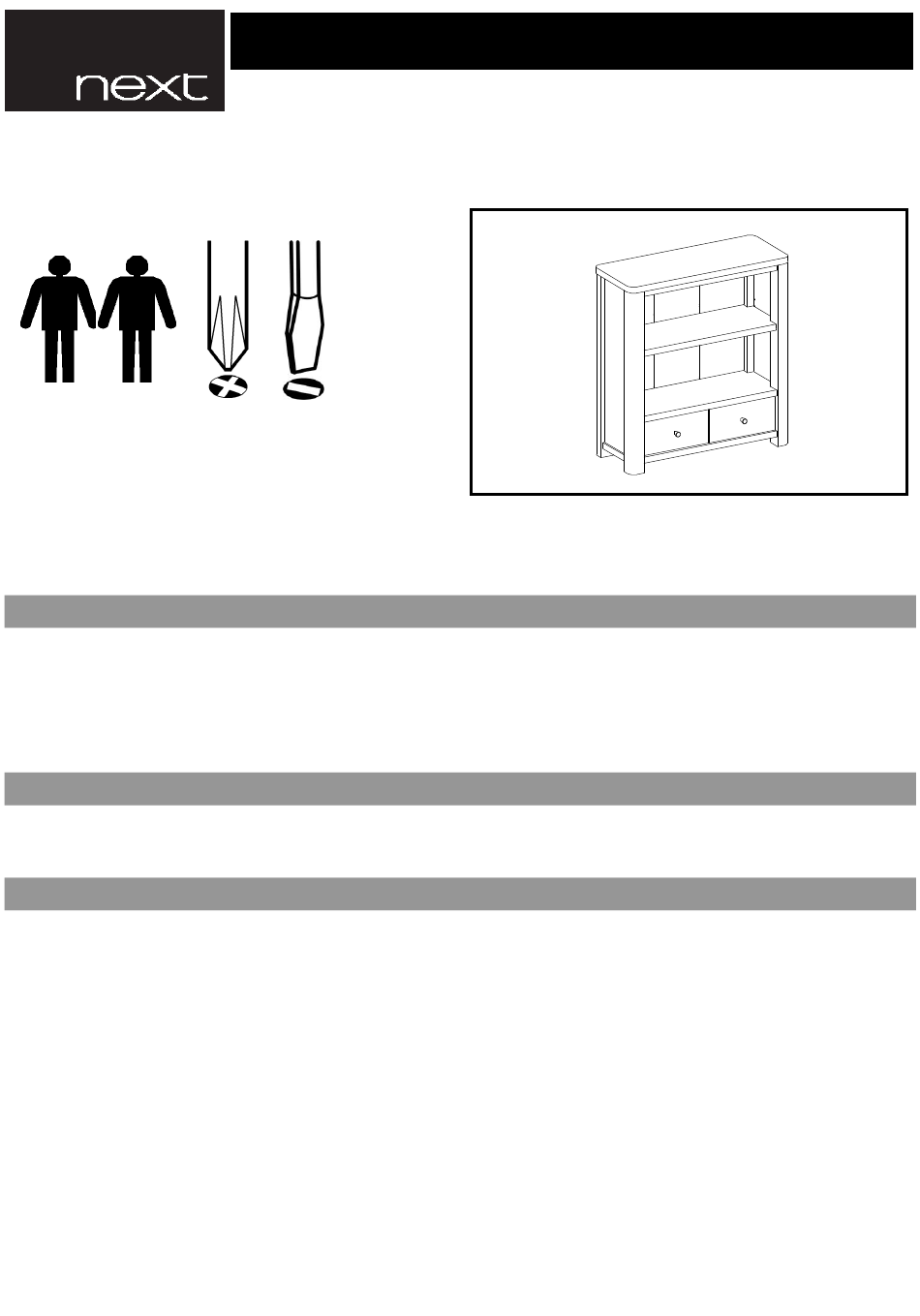

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Made from particleboard,MDF with a wood effect finish.
• Made in Indonesia.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching
or damage.
• Ensure the mats and coasters used do not have an abrasive surface underneath.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
824328
BARLOW CONSOLE BOOKCASE
ASSEMBLY INSTRUCTIONS.
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the BARLOW 824328 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next BARLOW 824328

  • Page 1 824328 BARLOW CONSOLE BOOKCASE ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS 15x12 mm. 7.5x32 mm. 8x32 mm. F6x13 mm. F6x31 mm. 350 mm. 350 mm Ax28 Bx28 Cx42 FLx2 FRx2 25x30 mm P4x15 mm. 350 mm. 6x40 mm F4x19 mm. 150 mm 4 mm P6x19 mm F10x70 mm Jx10 Kx10 6x35 mm PARTS 3Lx1...
  • Page 3 STEP ONE 1. Attach 4 x cambolts (B) into the holes of panel 1 and tighten with a screwdriver. STEP TWO 1. Attach 6 x cambolts (B) into the holes of panel 3L and tighten with a screwdriver. 2. Insert 2 x camlocks (A) into the holes of panel 3L and ensure that arrow indicators are pointing towards the panel edges.
  • Page 4 STEP FOUR 1. Insert 2 x camlocks (A) into the holes of panel 4 and ensure that arrow indicators are pointing towards the panel edges. 2. Insert 2 x wooden dowels (C) into the ends of panel 4. 3. Insert 4 x camlocks (A) into the holes of panel 10 and ensure that arrow indicators are pointing towards the panel edges.
  • Page 5 STEP SEVEN 1. Insert 2 x wooden dowels (C) into the ends of panel 8. 2. Insert 2 x camlocks (A) into the holes of panel 8 and ensure that arrow indicators are pointing towards the panel edges. 3. Insert 2 x wooden dowels (C) into the holes of panel 2. STEP EIGHT 1.
  • Page 6 STEP TEN 1. Attach assembled unit and panel 5 to the panel 3R and tighten camlocks (A) with a screwdriver to secure all panels together. STEP ELEVEN 1. Attach panel 3L to the assembled unit and tighten camlocks (A) with a screwdriver to secure all panels together.
  • Page 7 STEP THIRTEEN 1. Attach panel 1 to the assembled unit and tighten camlocks with a screwdriver to secure all panels together. STEP FOURTEEN 1. Attach panel 2 to the assembled unit using 3 x screws (E) and tighten with a screwdriver. STEP FIVETEEN 1.
  • Page 8 STEP SIXTEEN 1. Insert 4 x cambolts (B) into the holes of panel 12 (x2) and tighten with a screwdriver. 2. Attach 2 x handles (G) into panel 12 (x2) using 2 x screws (H) and tighten with a screwdriver. 3.
  • Page 9 STEP NINETEEN 1. Insert panels 15 (x2) to the recessed grooves of each UNFINISHED partially assembled drawer frame. SIDE STEP TWENTY 1. Attach panels 12 (x2) to the partially assembled drawer frames and tighten camlocks with a screwdriver to secure all panels together.
  • Page 10 STEP TWENTY TWO 1. Insert 4 x shelf supports (P) into the holes of panel 3R and 3L. 2. Insert panel 9 to the assembled unit. 3. Insert the drawers to the assembled unit as shown. Fiinished Side STEP TWENTY THREE 1.
  • Page 11 Use the foil stickers to cover all visible camlock holes from construction. Ensure when placing the sticker the grain of the sticker follows the direction of the grain of the panel. This will give a better visual appearance. Next Retail Ltd, Desford Road, Leicester, LE19 4AT 11 of 11...
