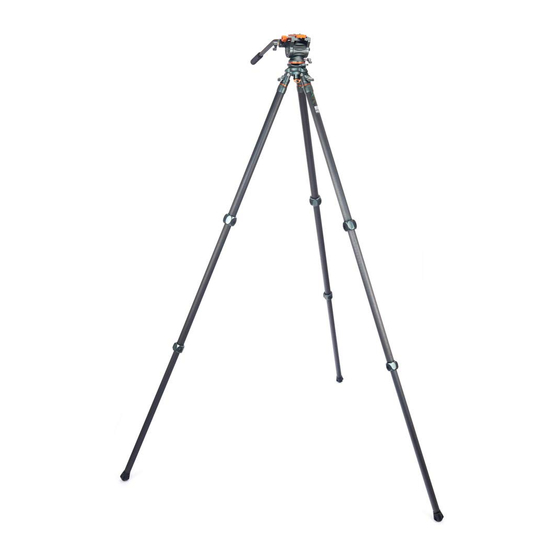

- Page 1 LEGENDS RANGE MIKE, JAY & AIRHED CINE INSTRUCTION MANUAL...
- Page 2 IMPORTANT DO NOT USE YOUR TRIPOD UNTIL YOU HAVE READ THESE INSTRUCTIONS. NO WARRANTY CLAIM WILL BE ENTERED INTO FOR THE MISUSE OR INCORRECT USE OF THESE PRODUCTS.
- Page 3 80˚ ANATOMY OF A TRIPOD: We offer three leg angles that we consider to be optimum for using a tripod. They are 23˚, 55˚ & 80˚. 55˚ 23˚ Levelling Base Dual 1/4”-20 mount with 3/8”-16 adapter sleeve Friction Adjustment / D-ring Levelling Base Lock Rapid Latch Hinge...
- Page 4 NEVER undo any of the knobs without holding your camera. IMPORTANT The Release Plate included in the 3 Legged Thing Legends Tripod Kits has security bolts fitted. These fit into the cut-outs engineered in the AirHed Cine and are intended to give you an additional level of security.
-
Page 5: Basic Functionality
Basic Functionality The levelling base has a locking knob on one side (a) to lock or unlock the leveller. The friction of the levelling base is controlled by the D-ring on the underside (b). To adjust the friction of the leveller, simply loosen or tighten the D-ring. - Page 6 Legs, catches & locks In order to change the leg angle you will need to press down on the Rapid Latch leg catch (a) manoeuvre the leg into the desired position and then release the catch. You don’t need to press the Rapid Latch to stow your tripod.
- Page 7 Cleaning It is advised that you wash your tripod after using it in salt water, sand, dirt or mud and this can be done by undoing each leg. Take each individual leg lock and unscrew until completely undone, and gently pull the tubing (a) out, being careful not to lose the nylon shim (b) (chicken lips), allowing you to clean the threads of the legs.
-
Page 8: Warranty Information
Details of your warranty can be found at www.3leggedthing.com. Your warranty covers 3 Legged Thing products only. If you have a question or suspect you have a fault, contact us first at www.3leggedthing.com/support. - Page 9 3LT Social Media #3LeggedThing /3LeggedThing @3LeggedThing 3 Legged Thing ® Unit 9 Kinsbourne Farm Bury End Stagsden Bedfordshire MK43 8TS United Kingdom of Fadeless Splendour...
