GB

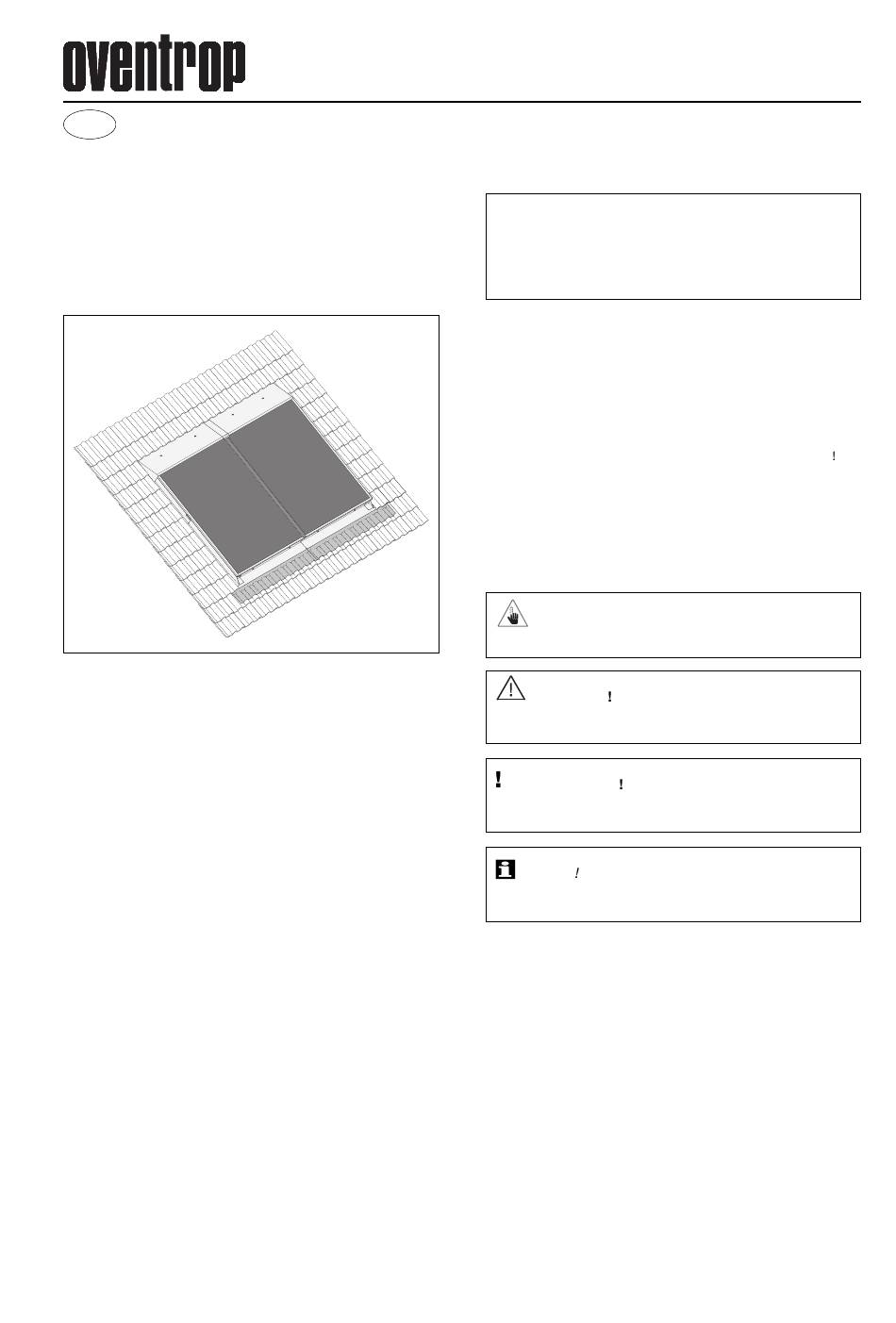

OKF-roof integration for pan tiled roofs,
basic set:
OKF-roof integration for pan tiled roofs,
extension set:
Vertical installation
Content:
Chapter
1.
General information....................................................... 15
1.1. Information regarding operating instructions .................. 15
1.2 Symbol explanation ......................................................... 15
1.3 Liability............................................................................. 15
1.4 Copyright ......................................................................... 15
2
Safety notes ................................................................... 16
Initial operation ................................................................ 16
2.2 Personnel......................................................................... 16
2.3 Specific risks ................................................................... 16
2.4 Other valid documents .................................................... 16
for the installation of solar collectors .............................. 16
3
Transport and handling ................................................. 16
3.1
Advice before installation . . . . . . . . . . . . . . . . . . . . . . . 17
4
Installation ...................................................................... 18
4.1 Basic set for vertical roof integration............................... 18
4.2 Extension set for vertical roof integration........................ 19
4.3 Installation field................................................................ 20
4.4 Collector installation ........................................................ 22
5
Dimensions and technical data.................................... 27
5.1 Pressure loss chart OKF.................................................. 28
5.2 Hydronic circuitry............................................................. 28
Read installation and operating instructions carefully
item no. 136 12 91
before installing the collector.
item no. 136 12 92
The installation and operating instructions have to
remain with the user of the system.
1 General information
1.1. Information regarding operating instructions
These installation instructions give important advice as to the han-
dling of the collectors. The observance of all mentioned safety
notes and instructions is paramount for safe working conditions.
These operating instructions are to be read carefully before working
at or with the collector and especially before initial operation
The instructions should remain with the Regusol station or the
storage cylinder so that they are always at hand.
1.2 Symbol explanation
Safety guidelines are displayed by symbols. These guidelines are
to be observed to prevent accidents, damage to property and
malfunctions.
Attention - Risk of open injuries.
Signalizes that nonobservance of guidelines may result
in injuries.
Page
Emphasises danger which may cause damage to the
appliance.
Emphasises suggestions and other useful information
of operating instructions.
1.3 Liability
The manufacturer does not accept liability for damages or mal-
functions caused by nonobservance of the operating instructions.
1.4 Copyright
The operating instructions are confidential. They are exclusively
for persons dealing with the collector. Transfer of the operating in-
structions to a third person without written approval of the manu-
facturer is inadmissible.
Valves, controls + systems
OKF - Flat-plate collector
Installation and operating instructions
Working with sharp-edged sheet metal pieces
WARNING
ATTENTION
NOTE
15
Advertisement
Table of Contents
Related Manuals for oventrop OKF-CK 22
Summary of Contents for oventrop OKF-CK 22
-
Page 1: Table Of Contents
Valves, controls + systems OKF - Flat-plate collector Installation and operating instructions OKF-roof integration for pan tiled roofs, Read installation and operating instructions carefully basic set: item no. 136 12 91 before installing the collector. OKF-roof integration for pan tiled roofs, extension set: item no. -
Page 2: Safety Notes
The collector contains harzardous waste. Dismounted collectors • Pump operating instructions • Controller operating and installation instructions can be returned to the manufacturer Oventrop. They will be dis- • Controller general functional description posed of professionally. • Controller hydronic schemes •... -
Page 3: Advice Before Installation
3.1 Advice before installation Regulations for prevention of accidents during work on the roof – Risk of scalding at the collector connection as soon as the un- covered collector is exposed to sunlight. – Remove protection caps from the connections as soon as the collector is exposed to sunlight. -
Page 4: Installation
4 Installation 4.1 Basic set for vertical roof integration Basic set for roof integration, item no. 136 12 91 (collectors are not included) Pos. Components: Basic set for roof integration Number per set Metal cover sheet, top (1 x left, 1 x right) Wooden support Collector connection hose + connection nipple G ⁄... -
Page 5: Extension Set For Vertical Roof Integration
4.2 Extension set for vertical roof integration Extension set for roof integration, item no. 136 12 92 (collectors are not included) Pos. Components: Extension set for roof integration Number per set Metal cover sheet, top Wooden support Collector coupling hose Foam rubber sealing tape (wedge-shaped) Cellular rubber sealing tape Bracket for roof integration, top... -
Page 6: Installation Field
4.3 Installation field Keep existing roof battens as support and fix the additionally required battens according to the dimensional specifications. If possible, define installation field so that the distance between one side of the collectors and the lateral roof covering is approximately 15 mm. - Page 7 Longitudinal section of roof integration Roof integration - longitudinal section (upper drawing) and cross section (lower drawing) 1 Roof batten, 2 Counter lathing, 3 Foil, 4 Rafters, 5 Low diffusion foil, 6 Ventilation space...
-
Page 8: Collector Installation
4.4 Collector installation Installation tools: Tape measure, drill, crosshead bit PZ 2 and 3, Pipe conduit with foil: Cut foil in the shape of a trapeze, fold upper spanners sized 16, 19, 24 mm, hammer, cutter, silicone gun (if nec- part upwards and lower part downwards and fix onto the roof bat- essary abrasive angle grinder with stone cutting disk). - Page 9 Connect collectors whilst holding them firmly to avoid damage to Connect collectors to the solar circuit. Check all collector connec- the collector connection. ATTENTION: Risk of scalding during sun- tions when carrying out leakage test. shine Insert solar sensor into the sleeve. Close opening with the help of Line up the wooden support against the collector and fix with the the rubber plug which is slipped onto the cable.
- Page 10 Insert the composite angled flashing sheets into the lower frame Slide composite angled flashing sheet downwards until it snaps groove in such a way that the upper notch (1) snaps into the collector into the latch of the lower corner. frame.
- Page 11 Fix upper flashing sheet to the roof batten with two sheet metal Position the roofing tile supporting bar to allow the tile row to be fixing devices. aligned with the tiles on the sides. Then fix to roof battens with sheet metal strips.
- Page 12 Along the side flashing sheets, the retaining edges of the roofing tiles Pull off the adhesive strip protective foil of the lower aluminium skirt may have to be removed and the tiles trimmed to fit. Fixing is carried and press to surface of roofing tiles. out via the tile fixing hole.
-
Page 13: Dimensions And Technical Data
5 Dimensions and technical data 1930 Flat-plate collector Unit OKF-CK 22 Gross surface area 2.25 Outer dimensions (L x W x H) 1933 x 1163 x 110 Aperture surface area 2.02 Collector connection – ⁄ Weight Absorption coefficient Emission coefficient τ... -
Page 14: Pressure Loss Chart Okf
Solar sensor Solar sensor Solarfühler Solarfühler Solar sensor Solar sensor Vertical series connection (max. of 5 x OKF-CK 22 in series) NOTE With parallel connections, the different fields must be hydraulically balanced. Use double regulating and commissioning valves if required. DE-XXX_EURO-C22-L22-Indach-Biber-Schiefer_MA-091012-1WA10019 DE-XXX_EURO-C22-L22-Indach-Biber-Schiefer_MA-091012-1WA10019 Subject to technical modifications.
