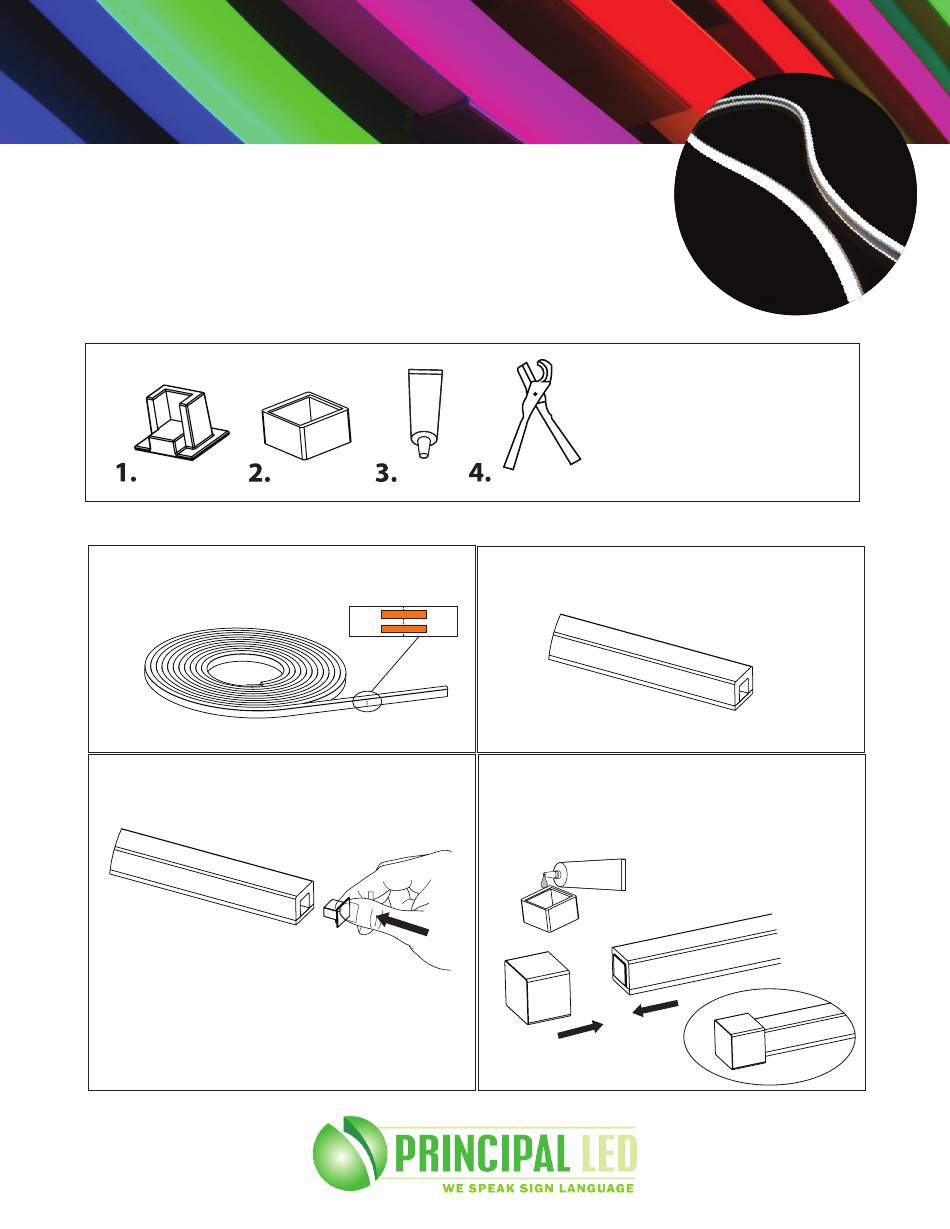

STREET WRAP™ FLEX BACK-BEND
PRODUCT GUIDE
CUTTING AND CONNECTION
Installation Tools
Instructions for Cutting and Connection
1. Cut on the designated cut mark.
3. Install silicone insert after cut.
2. Clean cut end before next steps.
2
1
4. Apply silicone glue to silicone end
cap, making sure that the cut section
is completely sealed.
1. Silicone Insert
2. Silicone End Cap
3. Silicone Glue
4. Pipe Cutter
Advertisement
Related Manuals for Principal LED STREET WRAP FLEX BACK-BEND
Summary of Contents for Principal LED STREET WRAP FLEX BACK-BEND
- Page 1 STREET WRAP™ FLEX BACK-BEND PRODUCT GUIDE CUTTING AND CONNECTION Installation Tools 1. Silicone Insert 2. Silicone End Cap 3. Silicone Glue 4. Pipe Cutter Instructions for Cutting and Connection 1. Cut on the designated cut mark. 2. Clean cut end before next steps. 3.
- Page 2 STREET WRAP™ FLEX BACK-BEND PRODUCT GUIDE Install Instructions Mounting Accessories 1. 8 ft. aluminum extrusion 2. 2” Aluminum Clip 3. Clear Clip Notes: There are no pre-drilled holes in the aluminum extrusion, please drill holes accordingly to meet eld requirements, using the appropriate screw. Installation and Warning Lighting Surface Back-Bend only bends as shown above.
