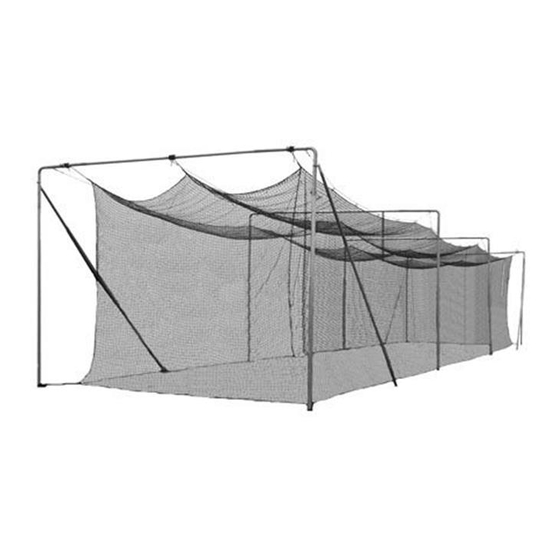

Cimarron 70 Deluxe Commercial Frame Manual

Directions for 70x15.5x12 Deluxe Commercial Frame
A 10' lengths of 2" EMT (Lowes-72721 | Home Depot-580031)
B 3' x 2' Elbows
C Eyebolts and Nuts
D 10' lengths of 1½" EMT (Lowes-72719 | Home Depot-613975)
E Angle Supports
F 2 ¼" Muffl er Clamps
G Arch Ground Sleeves (2 1/4")
H Angle Support Ground Sleeves (1 1/2")
I Self-drilling screws
J Carabiners
K Drill Bit (for screws)
L Lengths of Cable
M Turnbuckles
N U-Bolts
Please review the parts that you received to be sure that you have all the parts.
If you have purchased the kit, you will have to go to the local hardware store and purchase the pipe
(A & D). We have supplied you with the sku numbers for Home Depot and Lowes. If you purchased
the complete frame, the poles will be delivered to you separately from the rest of your order.
You will need to purchase concrete to secure your arches into the ground. We recommend one
60lb. bag of Quikrete per Arch Ground Sleeve(G) and half of a bag for each Angle Support Ground
Sleeve(H).
Plan on taking 2 days to complete the batting cage frame.
We recommend getting the Arch Ground Sleeves(G) set (Through step 10) on one day and then
returning to fi nish the job the next day. This allows the concrete to fully set.
You will need about a 15½" x 72' area for your new batting cage. It is recommended that you mark off
this area before starting.
TAKE DOWN YOUR CAGE IN THE WINTER. Snow will pile on top of the cage and that
will bring down even the strongest batting cage.
CMH-7042CCFAS225
12
8
12
4
4
4
8
4
32
54
1
3
6
6
1 of 3
