MachoMan Moped Assembly Instructions
I f y o u h a v e n o m e c h a n i c a l e x p e r i e n c e , p l e a s e
h a v e t h e u n i t p r o f e s s i o n a l l y a s s e m b l e d .
Tools needed: #2 Phillips Screwdriver, 14mm Socket, 12mm Socket,
10mm Socket, 14mm Wrench, 17mm Socket, Hammer, Allen Wrench,
Wire cutters Heavy duty Scissors or Utility Knife.

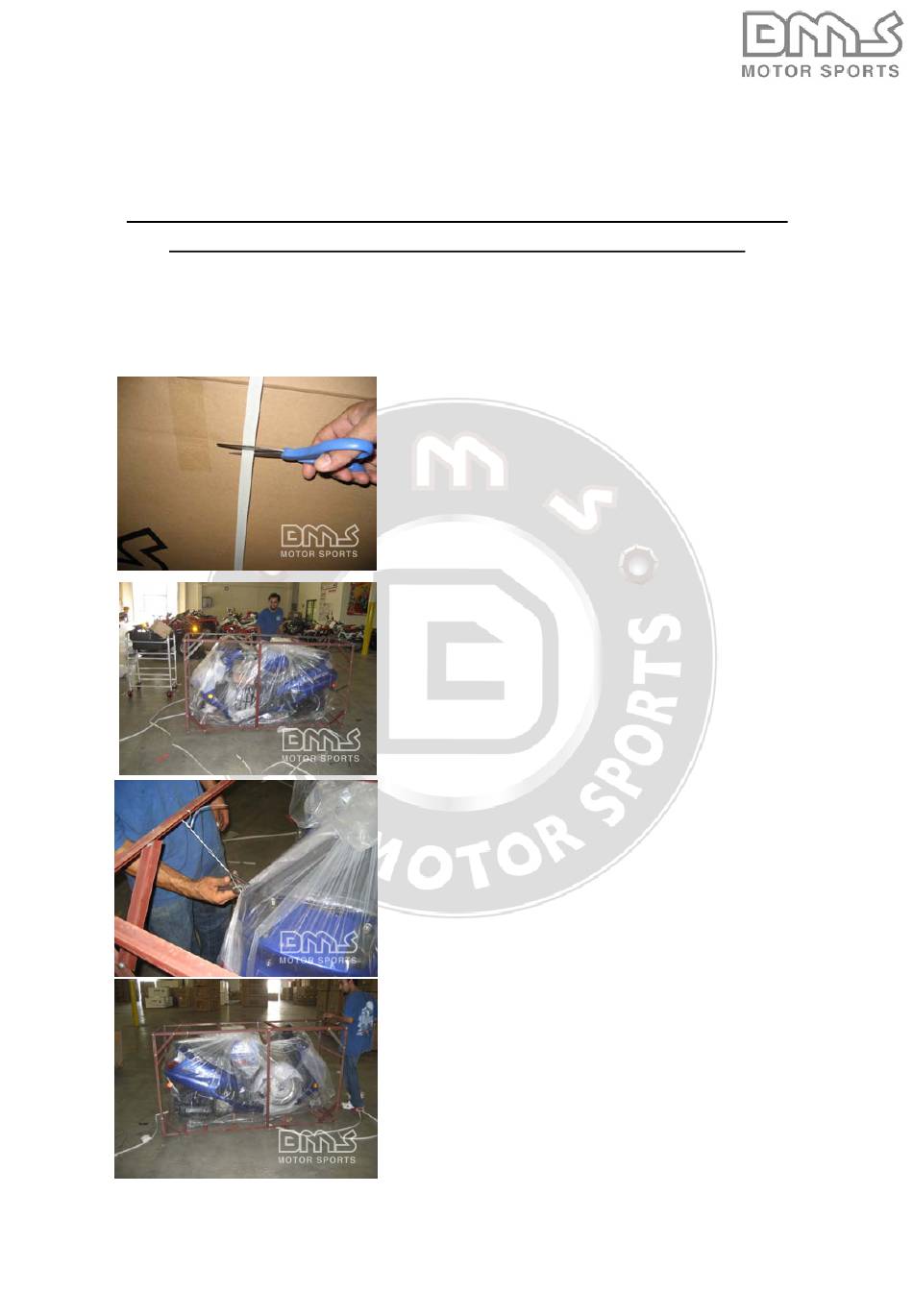

Cut straps off with heavy duty scissors or
utility knife.
Remove the box
Cut the wires attaching the unit to the top
of the frame using wire cutters
Remove the bolts on the frame using a
10 mm socket. NOTE** some frames
have screws with Phillips heads.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BMS MachoMan
Summary of Contents for BMS MachoMan
- Page 1 MachoMan Moped Assembly Instructions I f y o u h a v e n o m e c h a n i c a l e x p e r i e n c e , p l e a s e h a v e t h e u n i t p r o f e s s i o n a l l y a s s e m b l e d .
- Page 2 Remove the bracket holding the left handlebar to the frame using 10 mm socket Cut the wire (on each side) holding the unit to the frame at the rear of the bike Remove the trunk, rear rack, front wheel and front fender from their location. Trunk contains foam and rubber mat, black plastic mounting plate, bag with mounting screws, and mounting brackets...
- Page 3 Front Fender and Front wheel Remove the screws holding the front panel using a Phillips head screwdriver Remove the panel Remove the bolts that will be used to attach the front windshield using a 10 mm socket Attach the front windshield at the center bolt first...
- Page 4 Secure the remaining bolts Reconnect the front panel Secure the front panel with the screws removed using Phillips head screwdriver. 4 screws total Open the battery box located under the seat and remove the contents. The box should contain 1 Sulfuric Acid container, 1 Six Hole Funnel, 1 battery hole plug strip.
- Page 5 Remove Six Hole Funnel from plastic wrap and place into holes on top of the battery Attach Sulfuric Acid container to the tubes in the Six Hole Funnel Let Sulfuric Acid drain completely into battery Remove Six Hole Funnel and cap battery holes with the battery hole plug strip.
- Page 6 Insert battery nut and bolt into battery terminal Insert the battery as shown into the battery compartment Connect the BLACK WIRE to the NEGATIVE (BLACK) TERMINAL on the battery Connect the RED WIRE and RED FUSE WIRE to the POSITIVE (RED) TERMINAL on the battery...
- Page 7 Remove the bolts from the rear of the unit using 12 mm socket. 2 on the top. 2 on the rear. 4 total. The contents of the trunk are the black adapter plate, 2 brackets, the foam mat, the rubber mat, 4 long (thin) screws, 4 nuts, 4 washers, 4 short (wide) screws, 4 nuts Attach the rear rack to the rear of the...
- Page 8 Line up the holes in the trunk with the holes at the end of the plate closest to the backrest on the rack. Insert the 4 short screws and tighten using 12mm socket. The wing mirror mounting hardware includes 2 weatherproof rubber seals, 2 locking washers, 2 spacers and 2 rubber screw caps Slip the wires through one of the...
- Page 9 Here is what the completed item looks like Repeat this process for the other wing mirror Remove the bolt holding the front forks to the frame. DO NOT discard this bolt, spacer, and nut Cut the wrapping over the wheel bearing hub assembly.
- Page 10 Remove the spacer from between the front brakes Remove the four screws located on the front forks using a 10 mm socket. There are 2 on each fork. 1 on the outside 1 on the inside Attach the front fender with the short side toward the front.
- Page 11 Insert the bolt into the fork and wheel assembly. Use a hammer if it proves difficult to insert Tighten the bolt and nut using a 17 mm socket and crescent wrench Attach the hanging brake fluid tube to the rear of the fender using the plug Add fuel and finished.
