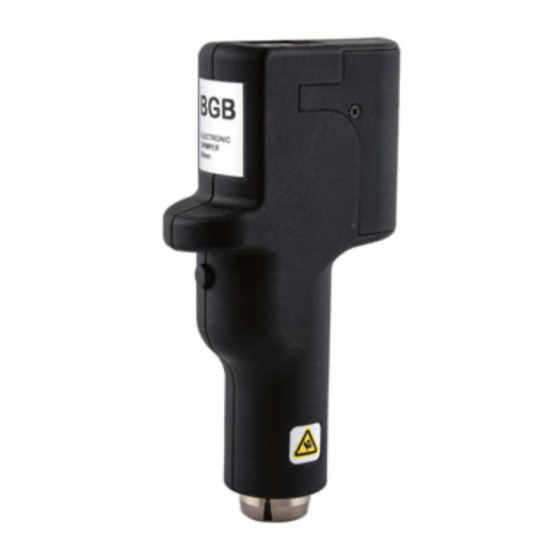

- Page 1 Electronic Crimping and Decapping Tools Model 6 297040, 297041, 297042, 297043, 297044, 297045, 297046, 297047, 297048 Operation Guide © BGB Analytik AG Manual Part Number: DR-BGB-1908 July 2019...
-
Page 2: Safety Notices
Support and Repair If the crimping tool is still in the warranty period, contact BGB Analytik office for support. If the warranty period has expired, please contact BGB Analytik. Find contact details on www.bgb-shop.com. -
Page 3: Battery Replacement
5. Connect new battery to board, 6. Slide the cover back into the making sure the latch is secure. case and replace the retaining Push battery into case, bending screw. -
Page 4: Table Of Contents
Table of Contents Safety Notices Maintenance and Cleaning Support and Repair Storage and Shipping Battery Replacement Product Content Safety and Regulatory Certifications Symbols Instrument Specification Sound pressure Intended use Limits Warnings Warnings Special battery warnings Disposal of battery Description and Setup Description Crimping tool setup Operation... -
Page 5: Product Content
8 mm Crimper Model 6 297041 11 mm Crimper Model 6 297042 13 mm Crimper Model 6 297043 13 mm Crimper Model 6 for Flip Off Caps 297044 20 mm Crimper Model 6 297045 20 mm Crimper Model 6 for Flip Off Caps 297046... -
Page 6: Safety And Regulatory Certifications
Warnings in the manual or on the instrument must be observed during all phases of operation, service and repair of this instrument. Failure to comply with these precautions violates safety standards of design and the intended use of the instrument. BGB assumes no liability for the customer‘s failure to comply with these requirements. -
Page 7: Instrument Specification
Instrument Specification Sound pressure Sound pressure LpA = 70.1 dB(A). Intended use Electronic Crimping Tools are intended for use in a laboratory environment, all other uses are prohibited. Limits Temperature 15 - 35 °C Maximum humidity 75% Pressure 0.75 - 1 bar... -
Page 8: Warnings
Warnings Warnings Wear safety glasses when crimping or decapping. The crimper or decapper jaws can pinch severely. Never insert fingers into the crimper or decapper. Use only the 7.5 volt DC Power Supply supplied with the crimper for battery charging. Use only the specified replacement battery pack, part number ????. -
Page 9: Description And Setup
Please read through this entire guide to familiarize yourself with the operation of the tool before pro- ceeding. Use the same degree of care as you would with any precision instrument. If there is any visible damage, contact BGB Analytik immediately. ②... -
Page 10: Operation
The battery must be charged before the crimper or decapper can be used. An indicator appears when recharging is necessary. Compatible Vials, Caps and Seals BGB electronic crimping tools may not be used with Steel Caps or Bi-Metal Caps. Aluminum caps and seals of standard size and thickness are appropriate. -
Page 11: Settings
Settings Press the Press Settings Button the cycle with a pen or button to Press small tool. (Or make a to scroll through hold the Cycle selection. the menu. Button for 3 seconds after a cycle). Language selection Statistics Log of recent crimping results... -
Page 12: Using The Tool - Crimping Version
Using the Tool - Crimping Version The cycle button must be held down until the crimp is complete. If the switch is released early the crimper will retract and show an error. Adjust the crimper setting for satisfactory form and tightness. Note: Crimping the same vial two times will not generally give the same results and sometimes will result in vial breakage. -
Page 13: Using The Tool - Decapping Version
Using the Tool - Decapping Version Adjusting the tool for decapping jaws Push Push Not Enough Too Much Note: Always use a new vial to check the decapping adjustment and be careful: if the decapping settings are adjusted to be too tight, the vial neck may break and cause injuries. Decrease the decapping force by pushing the button. -
Page 14: Error Conditions And Display Codes
Error Conditions and Display Codes Error conditions Errors are identified by Error Messages, normally after a crimp cycle. Table 1 Error codes Error Possible cause Recommendation Stall Condition – Crimp Adjust crimper to a lower crimp setting by pressing the Setting is too high. -
Page 15: Troubleshooting
The decapper will have to be replaced or hanging on vials. repaired. Jaws are worn or broken. Please go in Contact with BGB Analytik. Find contact details on www.bgb-shop.com Motor does not come on or moves in Contact BGB Analytik. - Page 16 Switzerland: BGB Analytik AG • Rohrmattstrasse 4 • 4461 Böckten • Phone +41 61 991 00 46 • Fax +41 61 991 00 25 • sales@bgb-analytik.com BGB Analytik SA • Route de Pré-Bois 20 • 1215 Genève 15 • Phone +41 22 788 49 43 • Fax +41 22 788 49 45 • sales.fr@bgb-analytik.com Benelux: BGB Analytik Benelux B.V.
