Proshade INSTANT CANOPY Assembly Instructions Manual page 3

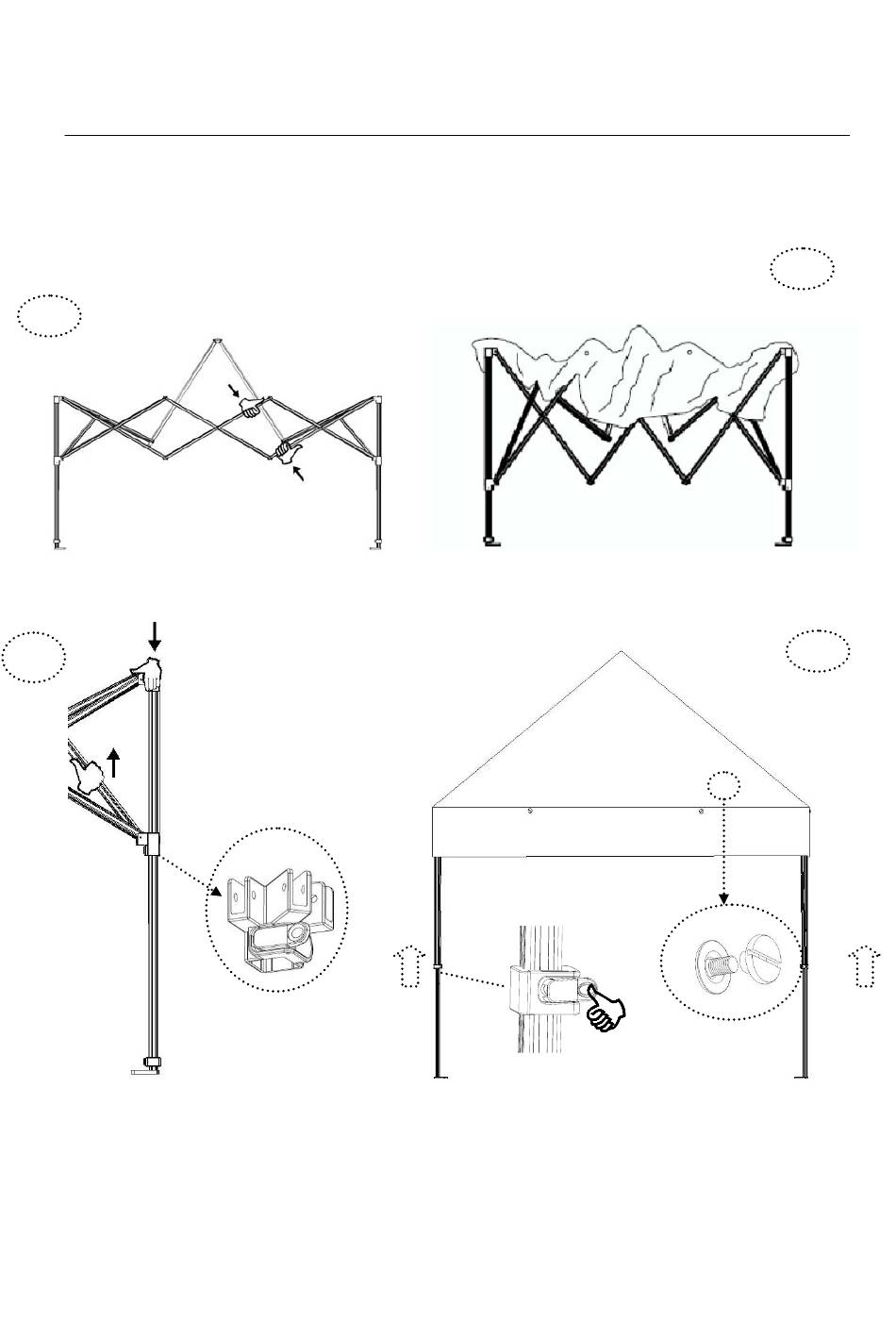

ASSEMBLY INSTRUCTIONS
Please read instructions completely before setting up your Canopy. Make sure you have all the parts as
identified on the Parts List.
OPEN
1
Make sure the foot plates face the ground.
3
Engage the push-button at each corner by
pushing up the trusses with one hand while
holding down the leg with the other hand, until
the push button engages. Fastening straps are
located in each corner of the canopy. Make sure
the straps face toward the frame. Secure straps
on the canopy to the straps on the frame.
9/6/2013
Put on the canopy. Do not secure the corner of
the canopy to frame at this moment.
Unscrew nut pre-installed on the frame. Place
grommet on canopy top over the bolt on the
frame. Screw nut onto bolt to secure canopy top
to the frame. Use push-buttons to raise and
lower the legs of the frame. Make sure to lift two
legs at the same time on the same side to avoid
damage to the frame.
3
2
4
