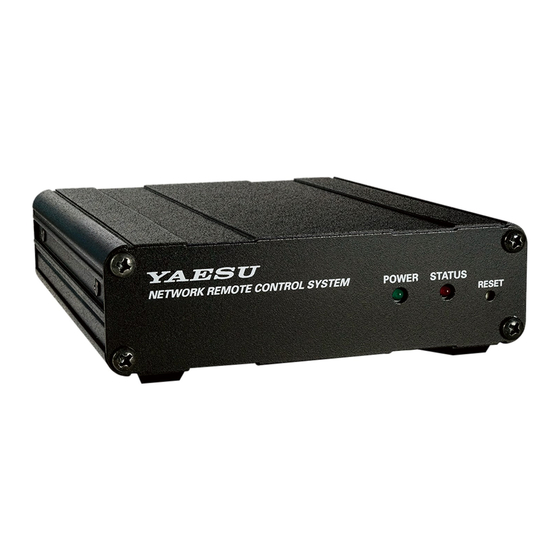

Network Remote Control System
SCU-LAN10
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCU-LAN10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yaesu SCU-LAN10

Summary of Contents for Yaesu SCU-LAN10

  • Page 1 Network Remote Control System SCU-LAN10 Operation Manual...

  • Page 2: Table Of Contents

    Precautions for use ...................... 4 Trademarks ........................4 Other notes and restrictions ..................4 Basic Operation .......................5 Starting the SCU-LAN10 Remote Software ..............5 Remote control software screen ................. 6 Select screen layout ..................... 6 Adjusting the receiver volume ..................7 AF GAIN (Speaker icon).....................
  • Page 3 MAIN band / SUB band operation unit ..............23 Meter operation selection during transmit ..............23 Switching the operating mode .................. 24 Frequency change operation..................24 MHz digit ............................24 kHz digit ............................25 Hz digit ............................. 25 QMB Operation ......................26 MAIN SUB / SUB MAIN operation ..............

  • Page 4: Introduction

    PC and peripheral devices. • To use SCU-LAN10, you need to open the port of the router and change the settings of the firewall and se- curity software. Customers are responsible for network security when using this product.

  • Page 5: Basic Operation

    Basic Operation Starting the SCU-LAN10 Remote Software 1. Click the Windows Start button, and then click the [YAESU SCU-LAN10] icon in the “Yaesu Musen” group to start the remote control software. z You can also double-click the [YAESU SCU-LAN10] icon on the desktop to start the remote control software.

  • Page 6: Remote Control Software Screen

    Remote control software screen By default, the MAIN band is displayed on the upper area of the screen, the SUB band is displayed on the lower area, the spectrum scope is displayed on the left side of the screen, and the frequency and meter are displayed on the right side.

  • Page 7: Adjusting The Receiver Volume

    Adjusting the receiver volume AF GAIN (Speaker icon) Turn the mouse wheel, or drag or click on the slide bar to adjust the receive audio to a comfortable volume. Each time you click the speaker icon, mute & mute cancel is switched. Change frequency Switch frequency band 1.
  • Page 8 z kHz digit 1. When you mouseover the 3 digits of the frequency from 100kHz to 1kHz, the digit higher than 1kHz turns green. 2. In this state, turning the mouse wheel will change the frequency in the set “FAST” step.

  • Page 9: Change The Frequency On The Spectrum Scope Screen

    • Change the frequency step 1. Right-click on the digit from 100kHz to 1Hz of the frequency to display the setting screen for the FAST step and TUNING step. 2. Click on the desired FAST step or TUNING step. (2) Change the frequency on the spectrum scope screen 1.

  • Page 10: Transmitting

    2. You can enter the frequency by clicking on the screen or using the numeric keys on your computer. z Select mode 1. Click the mode icon. 2. Click on the desired mode. You can right-click the mode icon to switch between the following modes with one touch: LSB ...

  • Page 11: Functions Of Screen Parts

    If the warning sign illuminates or occasionally opens, there may be a problem with the network line or port open settings. Refer to the SCU-LAN10 Installation Manual and restart the settings from the beginning. Click the warning sign to see the detected issues.

  • Page 12: Vox Button

    Transmission function button TUNE button Click: Switches the antenna tuner ON / OFF. When ON, the button indicator lights red. Click & Hold: The transceiver will switch to the transmit mode, and automatically start the antenna tuner. VOX button Click: Switches VOX ON / OFF.

  • Page 13: Moni Button

    MONI button Click: Switches MONITOR ON / OFF. When ON, the button indicator lights red. Right click: The MONITOR level settings window opens. SPEED/PITCH button Click: The CW SPEED and CW PITCH settings window opens. SYNC button Click: Switches SYNC (synchro function) ON / OFF. When ON, the button is displayed in red.

  • Page 14: Func Button (Function Menu Display)

    FUNC button (Function menu display) Displays the function menu screen for setting various functions. (Some items are different from the trans- ceiver function menu display.) Display spectrum scope menu RF POWER Adjust the current transmit frequency (HF / 50MHz band) or communication mode (AM mode) and the transmit output of each.
  • Page 15 z VOX GAIN VOX gain setting z VOX DELAY The “Hang-Time” of the VOX system (the transmit-receive delay after the cessation of speech) may also be adjusted. z ANTI VOX The Anti-Trip setting sets the negative feedback of receiver audio to the microphone, to prevent receiver audio from activating the transmitter z MEM CH Selects the memory channel in memory mode.
  • Page 16 z MIC EQ Select the parametric microphone equalizer function ON / OFF. The parameters of the microphone equalizer cannot be set with the remote control. z ENC/DEC Turn the tone encoder function or tone squelch function ON. z TONE FREQ Set the tone frequency for the tone encoder function and tone squelch function.

  • Page 17: Spectrum Scope Area

    Spectrum scope area Screen operation z 3DSS display The MAIN / SUB bands are swapped Click: It becomes the clicked frequency Wheel: Frequency goes up / down in TUNING steps Shift + Wheel: Frequency goes up / down in FAST steps Right click: Display the FAST/TUNING step setting screen Change the size of the MAIN and SUB display area The MAIN / SUB bands are swapped...

  • Page 18: Scope Function Button

    z Turn the wheel to change the receive frequency Turn the mouse wheel on the spectrum scope screen to change the frequency in the set “TUNING” step. If you turn the mouse wheel while pressing the [SHIFT] key on the keyboard, the frequency will increase or decrease in “FAST”...

  • Page 19: Slow1 / Slow2 / Fast1 / Fast2 / Fast3 Buttons

    SLOW1 / SLOW2 / FAST1 / FAST2 / FAST3 buttons Switches the scope display speed. Click: A popup screen for selecting the speed of the scope display is displayed. SLOW1: sweep speed Slow SLOW2: sweep speed ↑ FAST1: sweep speed Normal FAST2: sweep speed...

  • Page 20: Mono (Dual/Mono Switching) Button

    MONO (Dual/Mono Switching) button The scope screen switches to the “MONO” display, which displays only one side of the MAIN band or SUB band. Click: When “MONO” is displayed, the button flashes red. MULTI (Multi display switching) button Click: Switches to the “multi display” that displays the oscilloscope screen and AF-FFT screen. When “MULTI”...
  • Page 21 z PEAK The color density may be adjusted to the level of the signal. LV1: Light LV2: ↑ LV3: Normal LV4: ↓ LV5: Dark The settings for this feature apply only to the remote control software. z LEVEL Adjust the level to make it easier to distinguish between the desired signal and noise. z AVERAGING Waveforms are averaged and displayed smoothly.

  • Page 22: Oscilloscope / Af-Fft Area

    The settings for this feature apply only to the remote control software. • Display color memory You can save the set combination of display colors by clicking and holding the [M-1], [M-2] or [M-3] button. The settings can be recalled by clicking the [M-1], [M-2] or [M-3] button. Factory settings: M-1: COLOR-5, COLOR-13 M-2:...

  • Page 23: Main Band / Sub Band Operation Unit

    MAIN band / SUB band operation unit Meter operation selection during transmit Click: To select the meter operation during transmit: Transmission output display ALC: ALC voltage display SWR: Antenna SWR display COMP: AMC gain control display (Compression level display when the speech processor is operating) Final stage FET Drain current display VDD: Final stage FET Drain voltage display...

  • Page 24: Switching The Operating Mode

    Switching the operating mode Click: Switch the operating mode. Right Click: Switch between the following modes with one touch. LSB  USB CW-L  CW-U AM  AM-N FM  FM-N DATA-L  DATA-U DATA-FM  D-FM-N RTTY-L  RTTY-U Frequency change operation MHz digit Wheel:...

  • Page 25: Khz Digit

    kHz digit Wheel: Frequency goes up / down in FAST steps Click: Click the upper half / lower half of the number to frequency goes up / down the frequency in FAST steps Drag up and down: Frequency changes up / down in FAST step Right Click: Display the setting screen of FAST step / TUNING step By holding down the [SHIFT] key on the keyboard and clicking the number of each digit, you can zero the numbers below...

  • Page 26: Qmb Operation

    QMB Operation Click: Will recall the information stored in the QMB list, in sequence. Click & Hold: Stores up to 5 or 10 channels of the current operating status in a dedicated memory chan- nel (QMB: Quick Memory Bank). Right Click: A list of QMB memories will be displayed.

  • Page 27: Ant (Switching The Antenna)

    ANT (Switching the Antenna) The currently used antenna terminal number (“ANT 1” “ANT 2” “ANT 3 / RX”) is displayed. Click: Select the antenna terminal. ATT (Attenuator) Displays the current ATT (Amount of receive input signal attenuation). Click: Select the attenuation level. IPO (Intercept Point Optimization) Displays the current IPO (Intercept Point Optimization).

  • Page 28: Agc (Automatic Gain Control)

    AGC (Automatic Gain Control) Displays the currently selected AGC setting. The AGC system is designed to help compensate for fading and other propagation effects. Click: Select from OFF, AUTO, FAST, MID and SLOW. The “AUTO” selection mode selects the optimum receiver-recovery time for the reception mode. When the memory channel list is not displayed: Click: The VFO and the last used memory channel will be recalled alternately.

  • Page 29: Memory Channel List Operation

    Memory channel list operation The window can be expanded to increase the number of channels displayed by dragging the bottom border of the memory channel list screen. Read memory data from radio The data of all memory channels stored in the transceiver can be read into the remote control software. When memory data is read from the transceiver, the memory data currently set in the remote control software will be over- written.

  • Page 30: Write To Memory

    Write to memory Click: Writes information such as the MAIN band or SUB band frequency and operation mode to the selected memory channel. Erase / Resume Memory Channel Click: Erases or restores the selected memory channel. Memory channel “M-01” cannot be erased. Editing memory channels You can edit the contents of the memory channel by right-clicking the MODE, NAME, SCAN MEMORY, and DISPLAY TYPE fields.

  • Page 31: Af (Speaker Icon)

    AF (Speaker icon) Turn the mouse wheel over the slide bar or drag or click to adjust the receive volume. Each time you click the speaker icon, MUTE & MUTE cancel will switch. RF (RF GAIN) Turn the mouse wheel over the slide bar or drag or click to adjust the RF gain. Right-click on RF to select whether to adjust RF gain or SQL level.

  • Page 32: Operation Of The Filter Function Display Area

    Operation of the filter function display area Right Click: You can select to show / hide the spectrum display of the signal in the filter function display area. NB (Noise blanker) Click: The noise blanker function turns ON / OFF. Right click: The operation setting of the noise blanker function can be changed.

  • Page 33: Dnf (Digital Notch Filter)

    DNF (Digital NOTCH Filter) Click: The digital NOTCH filter function turns ON / OFF. NOTCH (IF NOTCH Filter) Click: The IF NOTCH filter function turns ON / OFF. Right click: The bandwidth of the IF NOTCH filter function can be selected. CONT (Contour) Click: The Contour function turns ON / OFF.

  • Page 34: Vc Tune

    VC TUNE Click: The VC Tune function turns ON / OFF. When the VC Tune function is on, the center meter of the tuning point is grayed out at frequencies that cannot be used. Click & Hold: When the tuning point is finely adjusted by the following operation, it automatically returns to the optimum tuning point.

  • Page 35: Ptt

    Click & Hold: To transmit Right click: To switch the button function between “PTT” and “MOX”.

  • Page 36: Menu Bar

    Connection Setup: Make settings related to connection with SCU-LAN10. There is no need to change it if you have set it once at the beginning. While remotely connected to the SCU-LAN10, it is grayed out and you can only check the settings.
  • Page 37 If the volume is extremely low even if you adjust it on the “Audio Setup” screen, or if the sound is too loud and distorted, use Windows to adjust the volume. For details on adjusting the volume on Windows, refer to the SCU-LAN10 Installation Manual.

  • Page 38: Help

    Help Installation Manual (Japanese): Open the Installation Manual (Japanese) Operation Manual (Japanese): Open the Operation Manual (Japanese) Installation Manual (English): Open the Installation Manual (English) Operation Manual (English): Open the Operation Manual (English) (This Manual) About: Displays information about this software. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 39 Copyright 2020 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Tennozu Parkside Building 2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002 Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
