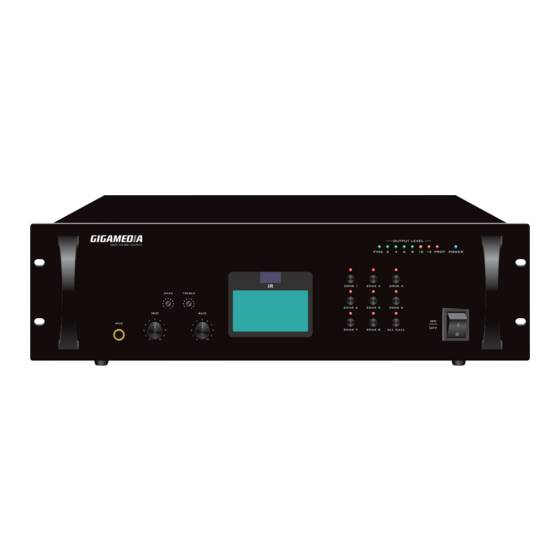

- Page 1 USER GGM IPAP8240 GGM IPAP8350 MANUAL GGM IPAP8500 Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference. www.gigamedia.net...
-
Page 2: Table Of Contents
This product bears the CE mark which certifies its conformity with the directives LVD 2014/35/EU ; EMC 2014/30/EU and RoHS 2011/65/EU. Compliance has been assessed in accordance with applicable standards in effect. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... -
Page 3: Safety Precautions
Doing so may result in the unit falling down, materials in the ventilation slots of the unit’s cover, causing personal injury and/or property damage. as this may result in fire or electric shock. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... - Page 4 Doing otherwise may cause a fire or electric shock. An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net...
-
Page 5: Application
12. Compatible with routers, switches, bridge gateway, Modem, Internet, 2G, 3G, 4G, multicast, unicast and any other network structure. 13. Digitalized products, easy expansion, not limited by geographical location, no need to increase the control room management equipment, easy to install. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... -
Page 6: The Name And Function Each Parts
12. TREBLE-treble, adjust the response of treble. Increase treble output by knob clockwise rotation and decrease it by knob anticlockwise rotation. 13. BASS-bass, adjust the response of bass. Increase bass output by knob clockwise rotation and decrease it by knob anticlockwise rotation. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... -
Page 7: Rear Panel
04. Line input interface. 05. EMC input interface. 06. Line output interface. 07. RJ45 network interface, connecting with the internet of PC host/Ethernet/switch. 08. Cooling fan. GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... -
Page 8: Operation
“Write” to apply the configuration and check with the button “Ping” to see if it is reachable (Figure 4). When all your equipments are configured, you can close the software “iptool”. FIGURE 3 FIGURE 4 GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... -
Page 9: System Wiring Diagram
6. SYSTEM WIRING DIAGRAM GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net... - Page 10 GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net...
-
Page 11: Specifications
~220 V / 50 Hz Size 484 x 303 x 88 mm 484 x 359 x 132 mm 484 x 359 x 132 mm 484 x 359 x 132 mm Net weight 9.7 kg 13.7 kg 15.5 kg 18 kg GIGAMEDIA User manual (GGM IPAP8xxx) www.gigamedia.net...
