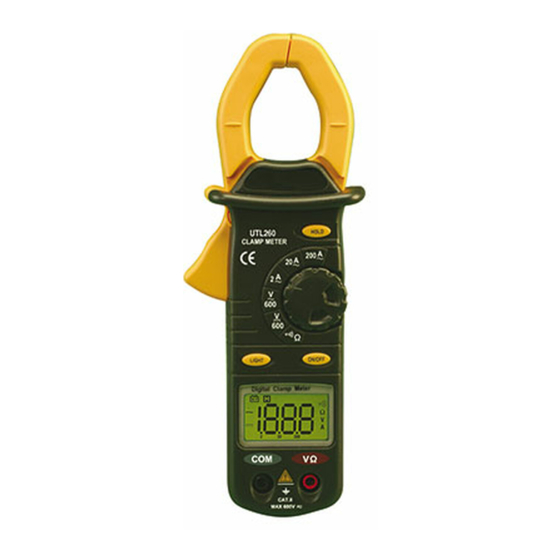

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com INSTRUCTION MANUAL UTL260...
-
Page 2: International Symbols
The UTL260 has all the features and measurement functions that appliance • Keep your fingers away from the test lead metal probe contacts technicians need. It’s ruggedized and slim compact design makes for easy and bus-bars when making measurements. - Page 3 Make sure that the clamp jaw is closed (Fig 1). 3. Read the display value. 4. When only the figure “1” is displayed, it indicates over-range situation and the higher range has to be selected. (Fig 2) UTL260-MAN P. 2...
- Page 4 2. Connect the black and red test leads to the “COM” and “V ” terminals respectively. Short Circuit 3. Connect the test leads to the circuit being measured and read Beeper the displayed value (Fig 4). Open Circuit (Fig 4) UTL260-MAN P. 3...
- Page 5 1. Remove the screw from the battery compartment cover on the back of the meter and lift the cover. 2. Remove and discard the old battery. Always dispose of old batteries promptly in a manner consistent with local disposal regulations. UTL260-MAN P. 4...
- Page 6 Accuracy 600V ±(1.5%+5) Input impedance: 10M Frequency response: 40~400Hz Maximum input voltage: 600V DC or 600V AC rms Resistance Range Resolution Accuracy ±(1%+5) Open circuit voltage: less than 700mV Overload protection: 250V DC or 250V AC rms UTL260-MAN P. 5...
-
Page 7: Limited Warranty
Digital Clamp-On Meter Limited Warranty The UTL260 is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase. If within the warra n ty period your instrument should become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
