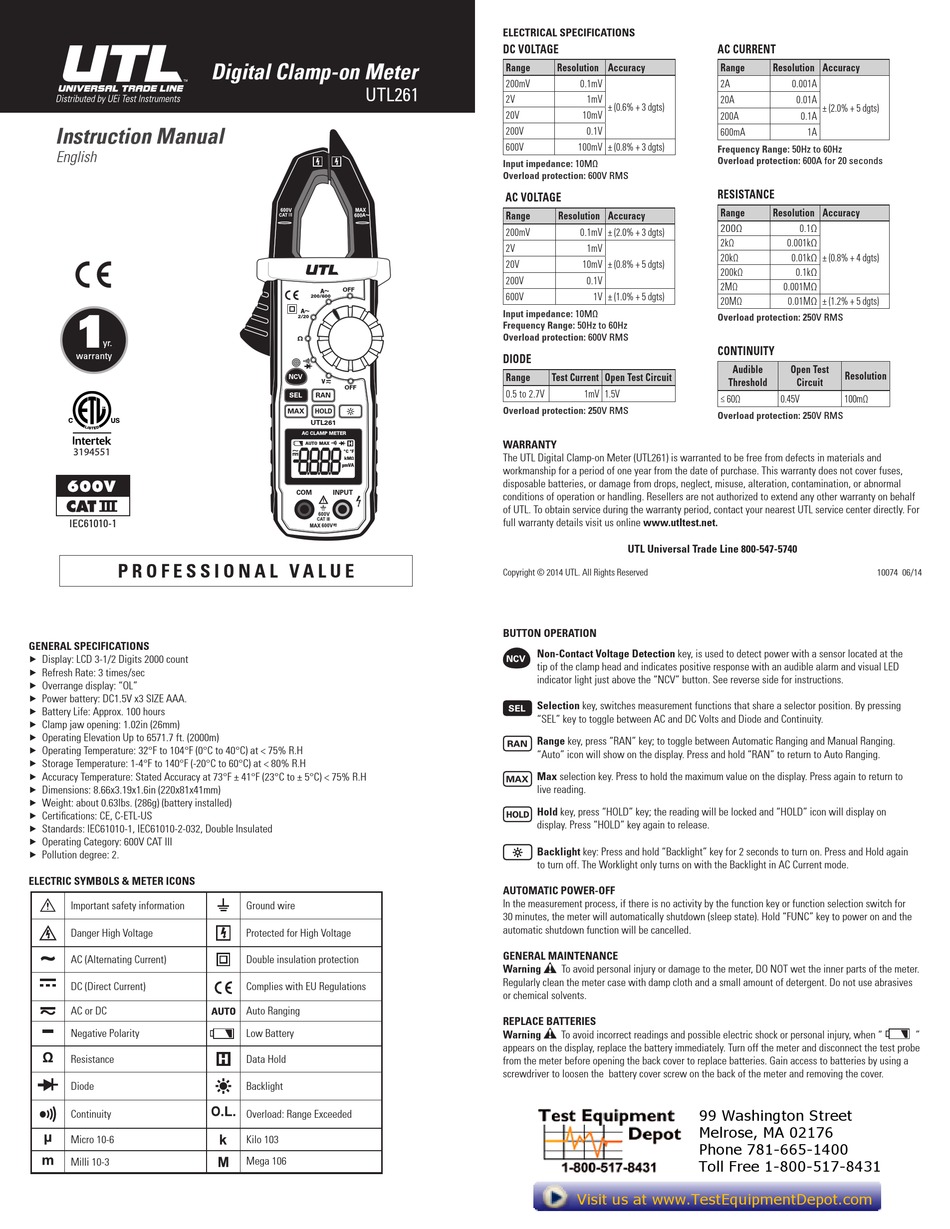

UTL UTL261 Instruction Manual

Instruction Manual
English
1
yr.
warranty
IEC61010-1
P R O F E S S I O N A L V A L U E

GENERAL SPECIFICATIONS

▶ Display: LCD 3-1/2 Digits 2000 count
▶ Refresh Rate: 3 times/sec
▶ Overrange display: "OL"
▶ Power battery: DC1.5V x3 SIZE AAA.
▶ Battery Life: Approx. 100 hours
▶ Clamp jaw opening: 1.02in (26mm)
▶ Operating Elevation Up to 6571.7 ft. (2000m)
▶ Operating Temperature: 32°F to 104°F (0°C to 40°C) at < 75% R.H
▶ Storage Temperature: 1-4°F to 140°F (-20°C to 60°C) at < 80% R.H
▶ Accuracy Temperature: Stated Accuracy at 73°F ± 41°F (23°C to ± 5°C) < 75% R.H
▶ Dimensions: 8.66x3.19x1.6in (220x81x41mm)
▶ Weight: about 0.63lbs. (286g) (battery installed)
▶ Certifications: CE, C-ETL-US
▶ Standards: IEC61010-1, IEC61010-2-032, Double Insulated
▶ Operating Category: 600V CAT III
▶ Pollution degree: 2.
ELECTRIC SYMBOLS & METER ICONS
Important safety information
Danger High Voltage
AC (Alternating Current)
DC (Direct Current)
AC or DC
Negative Polarity
Resistance
Diode
Continuity
Micro 10-6
Milli 10-3

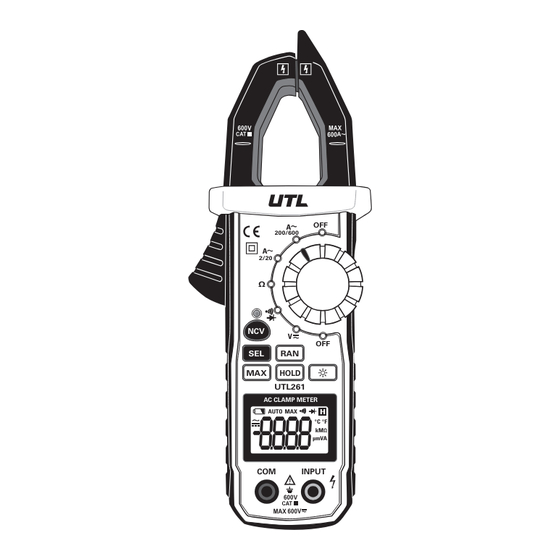

Digital Clamp-on Meter
UTL261
OFF
A
200/600
A
2/20
NCV
V
OFF
SEL RAN
MAX HOLD
UTL261
AC CLAMP METER
AUTO MAX
°C °F
kM
µmVA
COM INPUT
Ground wire
Protected for High Voltage
Double insulation protection
Complies with EU Regulations
Auto Ranging
Low Battery
Data Hold
Backlight
Overload: Range Exceeded
Kilo 103
Mega 106

ELECTRICAL SPECIFICATIONS

DC VOLTAGE

Range Resolution Accuracy
200mV 0.1mV
2V 1mV
± (0.6% + 3 dgts)
20V 10mV
200V 0.1V
600V 100mV ± (0.8% + 3 dgts)
Input impedance: 10MΩ
Overload protection: 600V RMS

AC VOLTAGE

Range Resolution Accuracy
200mV 0.1mV ± (2.0% + 3 dgts)
2V 1mV
20V 10mV ± (0.8% + 5 dgts)
200V 0.1V
600V 1V ± (1.0% + 5 dgts)
Input impedance: 10MΩ
Frequency Range: 50Hz to 60Hz
Overload protection: 600V RMS

DIODE

Range Test Current Open Test Circuit
0.5 to 2.7V 1mV 1.5V
Overload protection: 250V RMS
WARRANTY
The UTL Digital Clamp-on Meter (UTL261) is warranted to be free from defects in materials and
workmanship for a period of one year from the date of purchase. This warranty does not cover fuses,
disposable batteries, or damage from drops, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other warranty on behalf
of UTL. To obtain service during the warranty period, contact your nearest UTL service center directly. For
full warranty details visit us online www.utltest.net.
UTL Universal Trade Line 800-547-5740
Copyright © 2014 UTL. All Rights Reserved

BUTTON OPERATION

Non-Contact Voltage Detection key, is used to detect power with a sensor located at the
tip of the clamp head and indicates positive response with an audible alarm and visual LED
indicator light just above the "NCV" button. See reverse side for instructions.
Selection key, switches measurement functions that share a selector position. By pressing
"SEL" key to toggle between AC and DC Volts and Diode and Continuity.
Range key, press "RAN" key; to toggle between Automatic Ranging and Manual Ranging.
"Auto" icon will show on the display. Press and hold "RAN" to return to Auto Ranging.
Max selection key. Press to hold the maximum value on the display. Press again to return to
live reading.
Hold key, press "HOLD" key; the reading will be locked and "HOLD" icon will display on
display. Press "HOLD" key again to release.
Backlight key: Press and hold "Backlight" key for 2 seconds to turn on. Press and Hold again
to turn off. The Worklight only turns on with the Backlight in AC Current mode.

AUTOMATIC POWER-OFF

In the measurement process, if there is no activity by the function key or function selection switch for
30 minutes, the meter will automatically shutdown (sleep state). Hold "FUNC" key to power on and the
automatic shutdown function will be cancelled.

GENERAL MAINTENANCE

Warning
To avoid personal injury or damage to the meter, DO NOT wet the inner parts of the meter.
Regularly clean the meter case with damp cloth and a small amount of detergent. Do not use abrasives
or chemical solvents.

REPLACE BATTERIES

Warning To avoid incorrect readings and possible electric shock or personal injury, when "
appears on the display, replace the battery immediately. Turn off the meter and disconnect the test probe
from the meter before opening the back cover to replace batteries. Gain access to batteries by using a
screwdriver to loosen the battery cover screw on the back of the meter and removing the cover.
Visit us at www.TestEquipmentDepot.com

AC CURRENT

Range Resolution Accuracy
2A 0.001A
20A 0.01A
± (2.0% + 5 dgts)
200A 0.1A
600mA 1A
Frequency Range: 50Hz to 60Hz
Overload protection: 600A for 20 seconds

RESISTANCE

Range Resolution Accuracy
200Ω 0.1Ω
2kΩ 0.001kΩ
20kΩ 0.01kΩ ± (0.8% + 4 dgts)
200kΩ 0.1kΩ
2MΩ 0.001MΩ
20MΩ 0.01MΩ ± (1.2% + 5 dgts)
Overload protection: 250V RMS

CONTINUITY

Audible Open Test
Resolution
Threshold Circuit
≤ 60Ω 0.45V 100mΩ
Overload protection: 250V RMS
