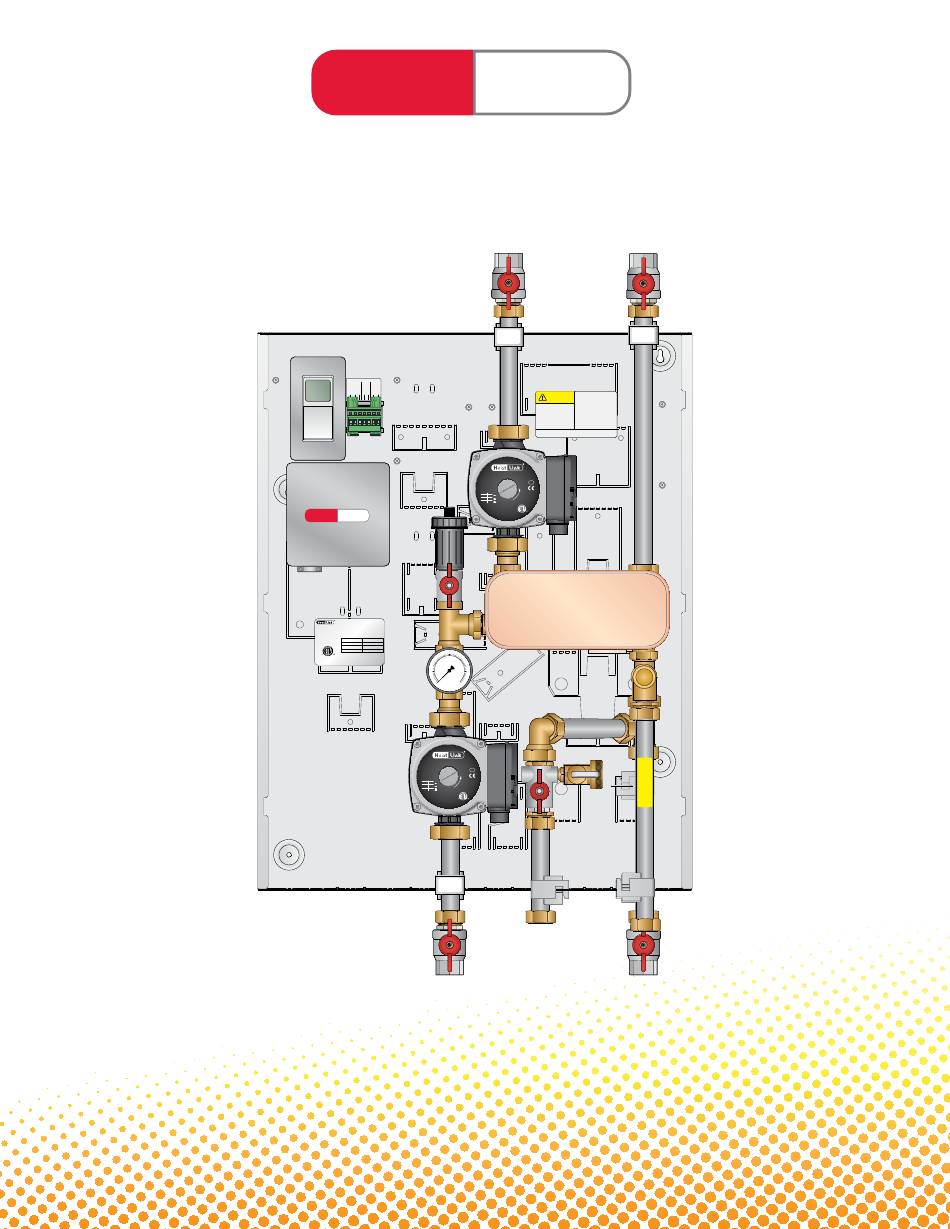

HEP025RT
Installation, Operation, and Maintenance Manual
Flow
Aux.
To T/Stat
Switch
Cont.
R
C
W
®
Heat
Link
WARNING!!!
Consult Manual Before Use
HeatLink Group Inc.
4603E - 13th Street NE
AVERTISSEMENT!!!
Calgary, Alberta, Canada
Consulter le
T2E 6M3
manual avant l'usage
Phone: (403) 250-3432
Fax: (403) 250-1155
www.heatlinkgroup.com
MODEL #: HEP025R
Serial #: XXX-XXXX
D.O.M: Jul 18, 2017
Phase/Freq: 1/60 Cycles
Max Pres: 125psi/862kPa
Max Temp: 100C/212F
Volts: 120/24 VAC
Amps: Maximum 15
30
Conforms to Std CAN/CSA C22.2 No. 14
Conforms to Standard UL 508
20
3189472
MADE IN CANADA
10
0
PSI
Type UPS 15-58 CIL2
115 V ~
60 Hz
8 μF
(A) P
(W)
|1/1
1
0.51
56
0.59
67
0.64
73
IMPEDANCE PROTECTED
FOR INDOOR USE ONLY
adaptor
®
Link
1"
adaptor
CAUTION
Any alterations to
electrical wiring and
controls renders warranty
null & void.
Before servicing,
disconnect power
Installation must conform
supply
to local codes. Check
valve(s) if required are the
installers responsibility.
M A D E
I N
C A N A D A
Type UPS 15-58 CIL2
P/N: 97948357
115 V ~
PC: 1131HLK
60 Hz
FR
8 μF
(A) P
(W)
|1/1
1
IP42
0.51
56
TF 95
0.59
67
Max. 1.0MPa
0.64
73
203°F
Max. water temp.
IMPEDANCE PROTECTED
FOR INDOOR USE ONLY
40
50
60
P/N: 97948357
PC: 1131HLK
FR
IP42
TF 95
Max. 1.0MPa
Max. water temp.
203°F
1"
1"
adaptor
DO NOT
PLUG!
PRESSURE
RELIEF
VALVE
This pipe should
be extended to
within 6 inches of
the floor by the
installer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEP025RT and is the answer not in the manual?

Questions and answers

Summary of Contents for HeatLink HEP025RT

  • Page 1 Max. water temp. ® Heat Link IMPEDANCE PROTECTED FOR INDOOR USE ONLY WARNING!!! Consult Manual Before Use HeatLink Group Inc. 4603E - 13th Street NE AVERTISSEMENT!!! Calgary, Alberta, Canada Consulter le T2E 6M3 manual avant l’usage Phone: (403) 250-3432 Fax: (403) 250-1155 www.heatlinkgroup.com...
  • Page 3: Table Of Contents

    Troubleshooting Disclaimer HeatLink Group Inc. shall not be responsible for errors in its brochures or printed materials. HeatLink Group Inc. reserves the right to alter its products at any time without notice, provided that alterations to products already on order shall not require material changes in specifi cations previously agreed upon HeatLink Group Inc. and the Purchaser.
  • Page 4 ® Installation, Operation, and Maintenance Manual Heat Link HEP025RT www.heatlink.com Warnings The zone control panel is for indoor use only and must be installed by a qualifi ed installer/service technician. This product must be installed and operated in strict accordance with the terms set out in this manual and in accordance with the relevant requirements of the Local Authority Having Jurisdiction. Failure to comply will result in a void of warranty, and may also result in property damage, serious injury, or death.
  • Page 5 Note: This panel does not regulate or monitor the operating safety limit temperatures of the fluid leaving the heat source. Dependant on local codes, the HEP025RT panel may be suitable for application in either open or closed systems supplied with potable water, where the system utilizes the domestic hot water as a heat source for the hydronic system.
  • Page 6: Panel Components

    Max. water temp. ® Heat Link IMPEDANCE PROTECTED FOR INDOOR USE ONLY WARNING!!! Consult Manual Before Use HeatLink Group Inc. 4603E - 13th Street NE AVERTISSEMENT!!! Calgary, Alberta, Canada Consulter le T2E 6M3 manual avant l’usage Phone: (403) 250-3432 Fax: (403) 250-1155 www.heatlinkgroup.com...
  • Page 7 Adapters for expansion tank, and pressure relief ¾" MBSP × ¾" FNPT adapters (×2) piping. Zone valve used to isolate the panel from the ¾" isolation valve (×4) system during fill & purge, and maintenance. Optional cover Powder coated cover PC2319CVR *Contact your HeatLink representative if the accessory pack is missing in whole or in part. L6HEP025RT...
  • Page 8: Specifications & Listings

    ® Installation, Operation, and Maintenance Manual Heat Link HEP025RT www.heatlink.com Specifications & Listings HEP025R Listing cETLus Conforms to CAN/CSA-C22 No.14, UL508 Dimensions 24”H × 18¾”W × 7¾”D Weight 30 lbs Nominal panel output 25,000 Btu/hr *see conditions below Max ambient temperature 120°F Max water temperature 200°F Settable fluid temp range dependant on heat source temperature Calibrated adjustment allows for setting valve to required pressure relief.
  • Page 9: Panel Mounting

    ® Installation, Operation, and Maintenance Manual Heat Link HEP025RT www.heatlink.com Panel Mounting Prior to mounting the panel, ensure the wall is capable of supporting the weight of the panel. Ensure that a 120V receptacle is within reach of the 6-foot cord and plug and 24V plug-in transformer.
  • Page 10: Piping Hookup

    See page 14 for optional flow switch connection Step 6 instructions. WARNING!!! Consult Manual Before Use HeatLink Group Inc. 4603E - 13th Street NE AVERTISSEMENT!!! Calgary, Alberta, Canada Consulter le T2E 6M3 manual avant l’usage...
  • Page 11: Fill & Purge

    , and When purged water is free of bubbles Step 5 close valves WARNING!!! Consult Manual Before Use HeatLink Group Inc. 4603E - 13th Street NE AVERTISSEMENT!!! Calgary, Alberta, Canada Consulter le T2E 6M3 manual avant l’usage Phone: (403) 250-3432 Fax: (403) 250-1155 www.heatlinkgroup.com...
  • Page 12: Panel Wiring

    ® Installation, Operation, and Maintenance Manual Heat Link HEP025RT www.heatlink.com Panel Wiring Thermostat Wiring 24V low voltage power may be supplied to the thermostat. Wiring of thermostat should be done by qualified electrician and should meet local codes and jurisdictions. Wiring to the terminal strip requires 18 gauge wire. • Do not exceed 2VA per thermostat.
  • Page 13: 24Hr Timer

    24hr Timer The HEP025RT features a timer which will activate the pump in order to circulate water within the system for 15 minutes every 24 hours. This prevents stale water from accumulating in an open system during periods of low heat demand (ie. summer).
  • Page 14: Flow Switch Installation

    R C W CONTACTS I4 I5 24VAC Inputs I1..I8 24VAC Plug In Transformer SCHNEIDER Plug In U/RUN Heating Load Primary Pump L6HEP025RT Secondary Pump Generic Heat Source: Notes: · Drawings are for HeatLink suggested system layout only! User must determine...
  • Page 15: Troubleshooting

    ® Installation, Operation, and Maintenance Manual Heat Link HEP025RT www.heatlink.com Troubleshooting Problem Check / Verify Possible Cause Low Temperature Within Room Misplacement of thermostat Make sure thermostat is not being location within room. influenced by an additional heat source, such as lighting or air duct.
  • Page 17 ® Heat Link Installation, Operation, and Maintenance Manual Panel Line Name www.heatlink.com...
  • Page 18 ® Heat Link Installation, Operation, and Maintenance Manual Panel Line Name www.heatlink.com...
  • Page 20 Canada Manufactured & distributed by HeatLink Group Inc. Head Office: 4603E - 13 Street N.E. Calgary, Alberta, T2E 6M3 Toll Free: 1-800-661-5332 International Phone: +1 (403) 250-3432 Fax: 1-866-450-1155 China Distributed by Cathay-Links International Phone: 852-25693213 Fax: 852-25359271 Ireland Distributed by Jamoni Ltd.
