HeatLink 31355 Installation And Setup Instructions

Heat Link
www.heatlinkgroup.com
Description
The Compact Mixing Reset Control 31355 regulates the supply water temperature of an automated mixing valve in
order to provide outdoor reset or setpoint operation. The 31355 provides a floating action or a 0/2 - 10 V (dc) signal
to adjust the mixing valve position. The 31355 also includes two separate night setback channels.
Features
•
Outdoor reset for energy savings
•
Setpoint
•
Floating action
For a full color version of this document, download the PDF from the professional section of our website.

Table of Contents

Table of Contents ........................................................ 1
DIP Switches and Display .......................................... 2
Dip Switches ....................................................... 2
Display ................................................................ 2
Symbol Description ............................................. 3
User Interface ..................................................... 4
Setup .......................................................................... 4
View Menu ......................................................... 5
Adjust Menu ........................................................ 6
Time Menu ......................................................... 8
Schedule 1 Menu ............................................... 9
Schedule 2 Menu ............................................. 10
®
HeatLink Compact Mixing Reset Control Stk# 31355
®
Installation and Setup Instructions
•
0 - 10 V (dc)
•
2 - 10 V (dc)
•
Two night setback channels

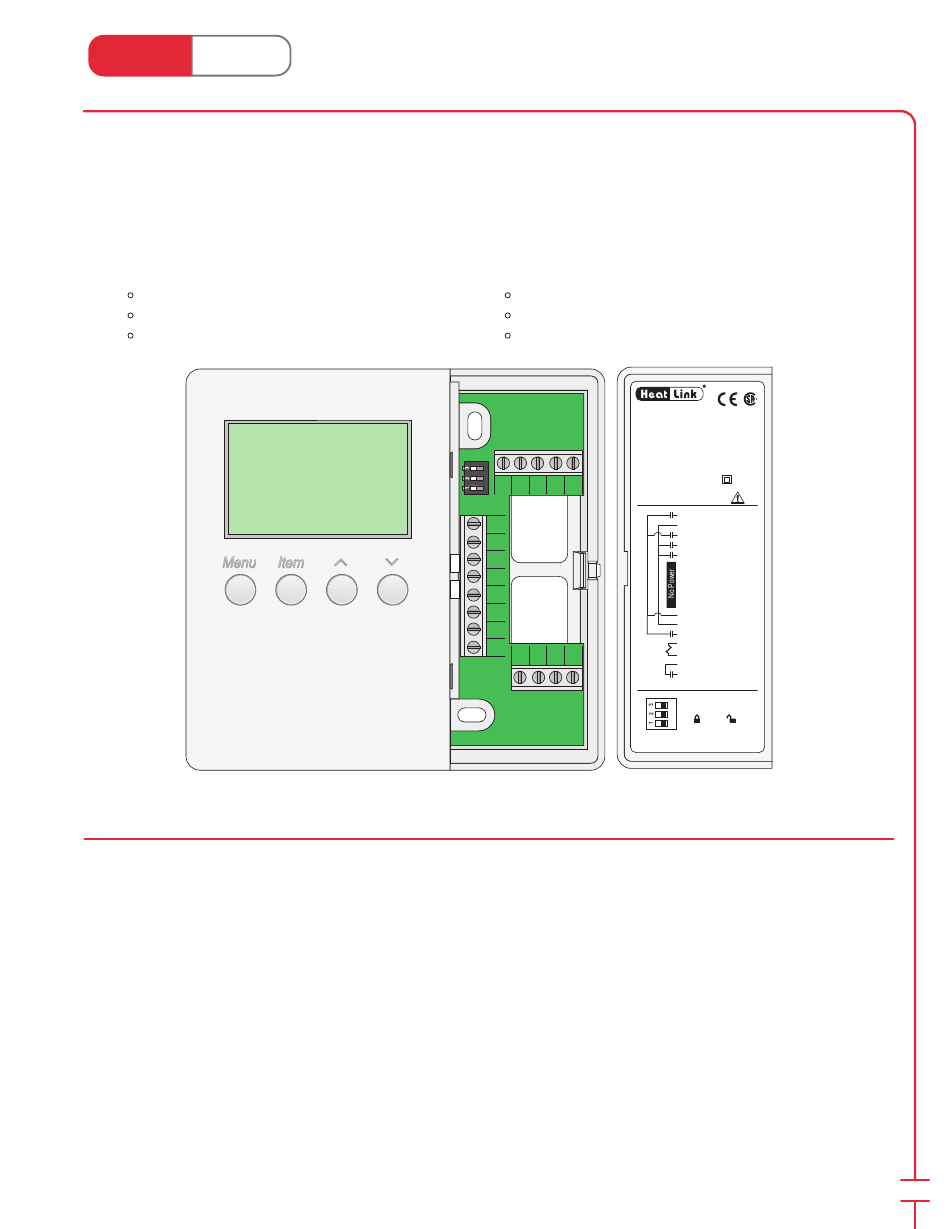

Compact Mixing
Reset Control 31355
Power: 24 V (ac) ±10% 50/60 Hz 100 VA (max)
Floating Output: 48 VA (max)
V (dc) Output: 3 kΩ min load (3 mA max)
Boiler Relay: 230 V (ac), 5A
Timer / Pump / Mixing Relays: 24 V (ac) 2A
Heat Demand: Low Voltage Dry Contact
INSTALLATION CATEGORY II
5 4 3 2 1
Made in Canada
Terminal Functions
6
7
8
9
10
11
12
13
15 16 17 18
DIP Switch Functions
ON
Modes of Operation ................................................. 11
Sequence of Operation ............................................. 13
Installation ............................................................... 17
Wiring ............................................................... 18
Cleaning the Control ................................................ 24
Testing ...................................................................... 24
Max Heat Feature ..................................................... 24
Error Messages ........................................................ 25
Appendix I: Boiler Piping Options ............................. 27
Appendix II: Load Piping Options ............................. 29
Technical Data .......................................................... 32
Warranty ................................................................... 32
977-03K
1 Open / DDC Blk
2 Com / DDC Blu
3 Close / DDC Red
4 Timer Relay 1
5 Timer Relay 2
6 Indoor Sensor
7 Sensor Common
8 Mix Sensor
9
Sensor Common
10
Outdoor Sensor
11
Power 24 V (ac) "C"
12 Power 24 V (ac) "R"
13 Pump
15 Heat Demand "R"
16 Heat Demand
17 Boiler Relay
18 Boiler Relay
3 Perm. Demand (ON) /
Ext. Demand
2 (ON) /
1 Setback (ON) / Off
Refer to Literature
L631355D
May 26, 2009
1
