SVBONY SV305 User Manual

SVBONY SV305 User Manual
The copyright and modification rights of SV305 manual and other related
materials belong to SVBONY. If there is any modification, please forgive us
do not notify. Please download the latest version from our official website.

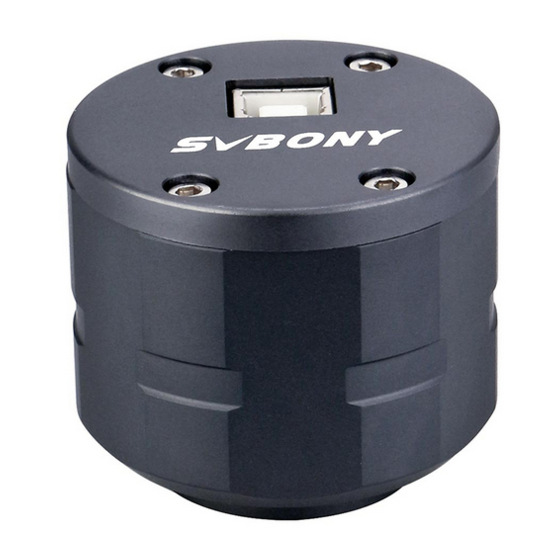

Thanks for purchasing your new 1.25" 2MP SVBONY SV305 astronomy
camera! This manual will give you a brief introduction to the SV305
camera. Please read this manual completely before using it. If you have
any questions, please feel free to contact us:
Facebook: www.facebook.com/svbony
For software installation instructions and other technical support, please
contact us: info@svbony.com

Package Include

1 - 2MP SV305 Astronomy Camera
2 - 2m USB 2.0 Cable
3 - 1.25" Dust Cover
4 - C-lens Adapter
5 - 1.25" Extension Tube
6 - Cleaning Cloth
7 - User Manual
8 - CD

Specifications

Image Sensor 1/2.8" COMS Sensor
Sensor Model SONY IMX290
Image Resolution 2M Pixels (1920*1080)
USB Type USB 2.0
Diagonal Line 6.5mm
Pixel Size 2.9μm X 2.9μm
Shutter Electronic Rolling Shutter
Exposure Mode Auto/Manual
Exposure Time 1ms-1800s
Gain 10-320
White Balance R 1-255
Maximum Frame Rate 130FPS
ADC 12bit
image or some light on the screen, so the SV305 works.
4. Connect the SV305 camera to your telescope, and you will see what
the telescope seeing on your computer screen. Adjust the telescope
focus wheel to get a most clear image.

General Clean

Svbony SV305 camera comes with a optical protection window, which
could protect the sensor from dust and humidity. And the inside of the
image sensor is dry and sealed. We don't recommend customer to di-
sassemble the camera and clear it yourself. Because disassemble the
camera may lead the sensor to get wet, or it may cause more dust to
enter.
If you need clean the protection window, it is best to do it during the
daytime. To see the dust clearly, please connect the SV305 camera to
your telescope. Point the telescope to a bright place, a Barlow is
required to see the dust clear. Then adjust the exposure time in the
software, make sure not over exposed. You will see the dust showing
as the following image.
1) The small but dark spots on the
image (left) are the shadows of
dust on the sensor. The sugges-
ted way to clean it is editing the
image by photography software.
2) The big spot on the image (right)
are the shadows of dust on the
protection window. The Suggest-
ed way to clean them is try to blow them away with a manual air pump.

Structure

2
6 7
5
4 3
8
/ G 1-255 / B 1-255
1
3
Built-in buffer
ROI
Cable Length
Adapter 1
Adapter 2
Weight
Support System
Support Telescope
Product Size
Working Humidity
Storage Humidity
Operating Temperature
Storage Temperature

How to Use SV305 Camera

1
C-lens
1. Download the astronomy software and driver from our site:
https://www.svbony.com/Product/UserManual
2. Install the astronomy software and driver on your computer.
3. Connect your SV305 camera to the computer, run the astronomy
【sharpcarp】capture software as administrator. enter sharpcap
software and single click the【camera】button, you will see
【SVBONY SV305 Camera】. Double click it, then you will see the
Quality Assurance & Warranty
The SV305 camera warranty time is one year. Within warranty period, if
the camera fails to function, we will provide you with free after-sales
maintenance service. Besides the warranty days, we provide life-long
maintenance services and charge only the parts that need repair or
replacement. The buyer will pay for the postage of returning camera to
factory to be repaired. Within the warranty period, if the following occurs,
certain maintenance costs will be charged.
1. The malfunction and damaged caused by incorrect use, the
unauthorized repairs and alteration.
2. The damage caused by fire, flood, earthquake, other natural disasters
and secondary product damage.
3. The product malfunction caused by the fall and transportation failures
after purchase.
4. The malfunction and damaged caused by the other barriers
(man-made factors or external device).
5. Purchase without the warranty card and purchase invoices.
Product Model
Defect Reason
Dealer Name
User's Name
User's Address
User's Email
Guarantee Clause:
1. Our product have one year guarantee and free after-sale service. (Out of these 5 conditions )
2. Please fill in the form with the correct and true information in case we can resend the item to you.
128M
Any resolution
2m
1.25"/M28.5*0.6
C-lens adapter
125g
Windows7,8,8.1,10
Telescope with 1.25" diagonal
Ø50X44mm
30%-80%
20%-90%
-10℃ to +50℃
-20℃ to +60℃
1.25" Camera
Filter T-adapter
Camera
C-lens
adapter
2
Warranty Card
Purchasing Date
Telephone
Telephone
4
