SVBONY SV105 User Manual

SVBONY SV105 User Manual

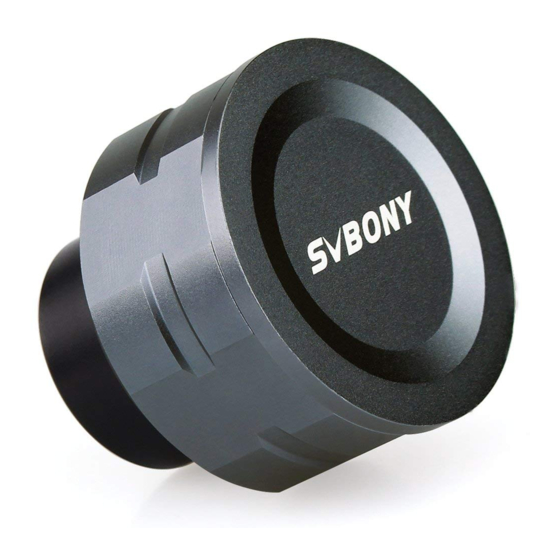

Thanks for purchasing your new 1.25" electronic eyepiece SVBONY SV105
astronomy camera! This user manual guides you how to use the SV105
camera. Please take time to read this manual completely before using it.
If you have any questions, please feel free to contact us:
Email: info@svbony.com
Facebook: www.facebook.com/svbony
Package Include
1 - Astronomy Eyepiece Camera
2 - 1.25"Dust Cover
3 - 1.8m USB Cable
4 - CD
5 - Cleaning Cloth

Specifications

Image Sensor
Image Resolution
USB Type
Pixel Size
Shutter
Exposure Time
Maximum Frame Rate
ADC
Interface Type
Cable Length
Weight
Support System
Support Telescope
Power Consumption
Working Humidity
Storage Humidity
Operating Temperature
Storage Temperature
1/3" COMS color sensor
2M pixels (1920*1080)
USB2.0
3μm X 3μm
Electronic rolling shutter
15ms-500ms
30FPS(1920*1080)
10 bit
Standard UVC protocol
1.8m
100g
Windows7,8,10
Telescope with 1.25" diagonal
150MA@5V
30%-80%
20%-90%
0℃ to +50℃
-10℃ to +60℃
1
How to Use Astronomy Camera
1. Connect SV105 camera to your PC
Please connect SV105 camera to
the computer's USB port by using
the original USB cable. DO NOT
use an extension cord or USB HUB
that may affect the speed and stability
of image transmission. WINDOWS
system will remind the discovery of
a new hardware.
2. This SV105 camera is a standard
UVC device, and SV105 could work
with Windows 7, 8 & 10. Windows
system will automatically install the
driver.
3. Check the SVBONY SV105 in the
device manager.
4. Testing the SV105 camera by the
sharpcap software (NO NEED TO
CONNECT TO THE TELESCOPE).
Firstly, Open the software,
【camera】—【SVBONY SV105】.
Double click the【SVBONY SV105】button, then you will see the image
or some light on the screen.
Not connect the telescope Connect the telescope
2
