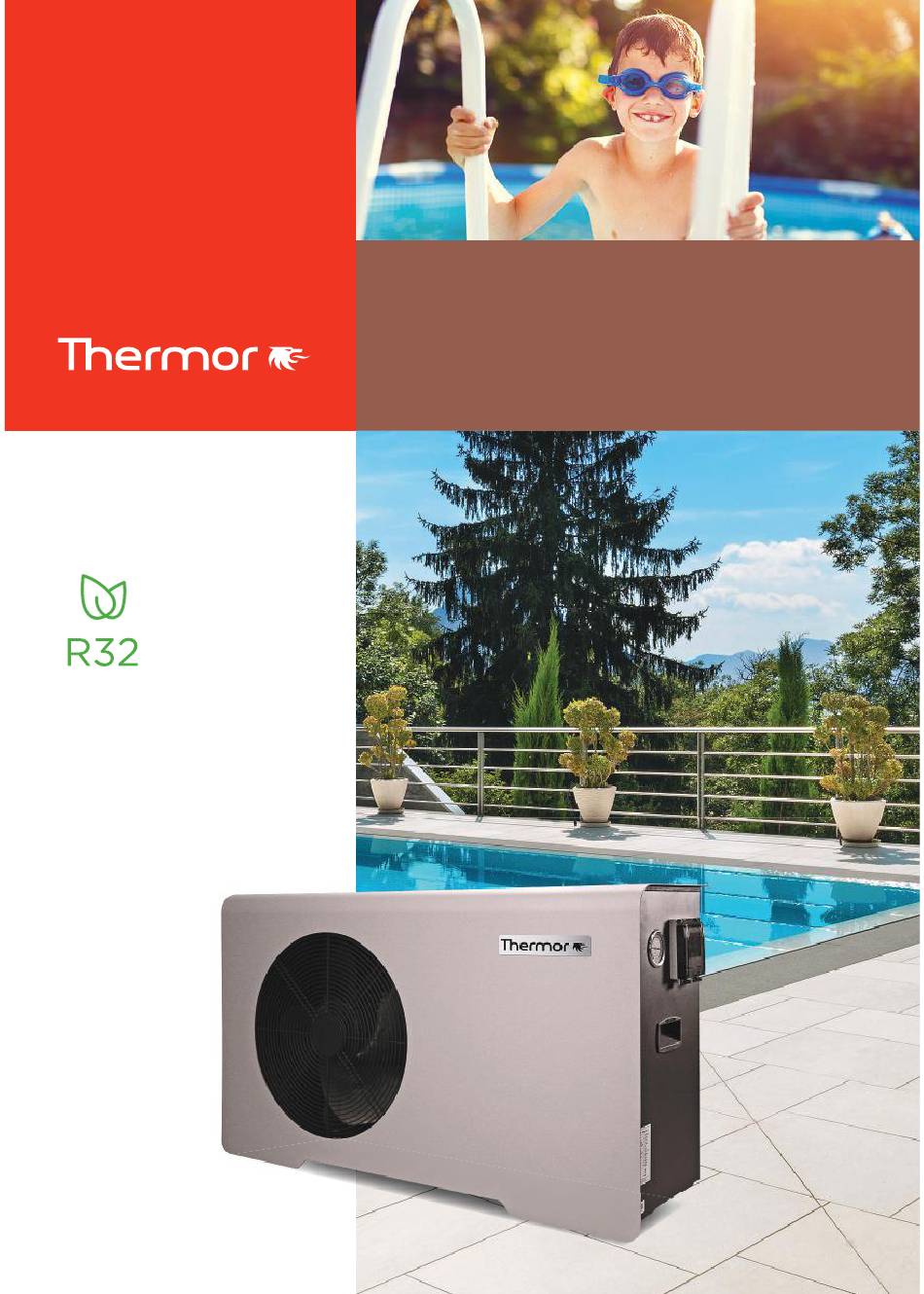

- Page 1 INSTALLATION AND USER MANUAL Aeromax Swimming Pool 2 8 to 14 kW swimming pool heat pump REFRIGERANT (except 14kW) www.thermor-heating.com hermor-heating.com...
- Page 2 WIRING DIAGRAM FOR COMMISSIONING YOUR AEROMAX SWIMMING POOL 2 Rated D curve Power Cable current circuit (kW) diameter* breaker (A) 3G 2.5 3G 2.5 3G 2.5 15.6 3G 4 * Data provided for information purposes for a heat pump power cable less than 20 m long.
- Page 3 GENERAL WARNINGS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or by persons lacking experience or knowledge, unless they have received adequate supervision or preliminary instructions on how to use the appliance from a person in charge of their safety.
- Page 4 GENERAL WARNINGS ELECTRICAL CONNECTION Be sure to turn off the power before removing the cover, to prevent any risk of injury or electric shock. The connection must comply with installation standard NFC 15-100, or the recommendations in force in the country in which the Aéromax Piscine is to be installed (see page 15).
- Page 5 GENERAL WARNINGS Do not pierce of burn. Be aware that refrigerants may be odourless. Be aware that prolonged direct exposure to the cold or hot air from the heat The fan blades rotate at high speed; any contact with these could cause injury or damage to the product.
-
Page 7: Table Of Contents
Installation and maintenance manual Contents Product presentation ......................6 Important recommendations ........................... Packaging contents .............................................................................................................8 Installation ...........................9 Tools required ..............................10 Additional equipment ............................11 Selecting the installation location ........................11 Positioning the product .................................................................................15 Electrical connection ............................15 Set-up and initial settings ..........................Use ............................18 Remote control ..............................18 Parameter table ..............................19... -
Page 8: Product Presentation
Installation manual: Product presentation 1. Product presentation 1.1. Important recommendations The installation and set-up work on the Aéromax Piscine may pose hazards due to high pressures and live parts. Aéromax Piscine Aéromax Piscine Manual Mounting guard plate + screws Water inlet and outlet screw-in connector (x2) Condensate drainage connector (x2) - Page 9 Accepted position Prohibited positions inverted on one side laid down The Aéromax Piscine uses outside air to heat the water in your pool. The refrigerant contained in the Aéromax Piscine completes a thermodynamic cycle, enabling it to transfer the energy contained in the outside air to the pool water.
- Page 10 Aéromax Aéromax Aéromax Aéromax Piscine 8 Piscine 10 Piscine 12 Piscine 14 Power output (kW) 8,28 9,25 12,19 Power input (kW) 2,82 1,88 Power output (kW) Power input (kW) 1,88 2,18 2,58 5,26 Recommended pool volume (m )* up to 50 m up to 90 m Rated current (A) Maximum power (W)
- Page 11 136.5 1 115...
-
Page 12: Installation
2. Installation 2.1. Tools required: • Phillips screwdriver • Drill gun • Ø 10 mm drill bit • Saw (cutting PVC pipes) • Sandpaper • Cutting pliers • Stripping pliers • Rule • Spirit level... -
Page 13: Additional Equipment
Installation manual: Installation 2.2. Additional equipment: • Ø50 PVC connector (depending on installation) • Connector glue (blue) • Acetone The Aéromax Piscine must be installed outside, close min. 500 circulation pump, etc.), with free space around it. min. 500 min. 500 Minimum clearance distances (mm): discharged Where possible, install the product away from property boundaries. - Page 14 Installation manual: Installation Install the product away from windows. Avoid installing the product in a corner or in a small enclosure max. 5 ° of the Aéromax Piscine in operation. If the support surface has a slight slope (max. 5 °), make sure that the condensate drains correctly.
- Page 15 Installation manual: Installation The Aéromax Piscine must not be oriented either to face the pool pool to protect it from splashes (NFC 15-100). Do not place anything on top of the appliance. Aéromax Piscine 8 and Aéromax Piscine 10 Aéromax Piscine 12 Position the Aéromax Piscine in its designated place, and mark the position of the drill holes.
- Page 16 Installation manual: Installation Fit the rubber isolators to limit vibrations and noise, and then anchor the Aéromax Piscine. Aéromax Piscine Rubber isolators Ground 2 - Pull on the bottom part of the front panel to unclip it...
-
Page 17: Electrical Connection
Installation manual: Installation 2.6. Hydraulic connection: The Aéromax Piscine must be connected with pipes and a PVC pressure connector with Ø 50 mm. Please adhere to the order of the various equipment: • Circulation pump / Filter • Water treatment Equipment shed Local technique Bypass... -
Page 18: Use
Installation manual: Installation The Aéromax Piscine must receive a constant power supply during its operating season. standard NFC 15-100, or the recommendations in force in the country in which the Aéromax Piscine is to be installed. Protection required: • An all-pole cut-out device (D curve). •... - Page 19 Installation manual: Installation • Fully close bypass valve V1. Return from To the Vers la PAC Retour de la PAC the heat pump heat pump (eau froide) ROOM ROOM (eau chaude) (hot water) (cold water) • Press the start button •...
-
Page 20: Remote Control
Installation manual: Use 3.1. Remote control: ROOM ROOM TEMP TEMP Auto mode (heating + cooling) Cooling mode Switch mode button Set programming button Temperature viewing mode TEMP Parameter setting mode Parameter number ROOM Aéromax Piscine water inlet temperature Aéromax Piscine water outlet temperature... -
Page 21: Parameter Table
Installation manual: Use 3.2. Parameter table: Setting range Default setting Temperature setpoint 8 => 28 °C 12 °C in cooling mode Temperature setpoint in heating mode 28 °C 15 => Evaporator temperature activating the defrosting cycle "-" is not displayed Evaporator temperature deactivating the defrosting 13 °C cycle... -
Page 22: Setpoints And Parameters
Installation manual: Use • Press to select the operating mode. AUTO mode to keep the pool water at the desired temperature. For the • Press until you reach the desired parameter, then select the value using the keys. • The appliance will exit mode after 5 seconds without any activity on the remote control. -
Page 23: Locking The Remote Control Keypad
Installation manual: Use Simultaneously press for 5 seconds to lock the remote control keypad. Follow the same procedure to unlock. • Cut the power supply to the circuit breaker. • Empty the entire Aéromax Piscine water circuit by unscrewing the water inlet and outlet connectors on the rear of the product, or opening the drainage circuit valve (if present). -
Page 24: User Advice
5. Servicing - Maintenance and troubleshooting 5.1. User advice: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or by persons lacking experience or knowledge, unless they have received adequate supervision or preliminary instructions on how to use the appliance from a person in charge of their safety. - Page 25 The refrigerant circuit must be inspected by a refrigeration engineer. Error code Fault description To be checked Solution The appliance does not - Check that the electrical protection switch on. system has not been triggered - Check the supply voltage to the appliance.
- Page 26 Low-pressure protection. - Check whether the low-pressure - Replace the low-pressure sensor. sensor is broken. - Check the refrigerant gas level. - Call in a refrigeration engineer to perform a sealing check on the - Check whether the water inlet and ambient temperature values are too low.
-
Page 27: Warranty
Installation manual: Warranty 6.1. Scope of the warranty: Abnormal environmental conditions: • Various damage caused by impacts or being dropped during handling after leaving the factory. • Damage resulting from problems that could not be detected due to the installation location selected ), and which could have been avoided by immediate repair of the appliance. - Page 28 Installation manual: Warranty of the French Civil Code. In this case, replace the defective part. 6.3. Warranty: •...
-
Page 31: Warranty
AEROMAX SWIMMING POOL 2 Swimming pool heat pump Thermor's warranty represents its commitment to WARRANTY ( 1 ) the professional YEARS quality of its product. Warranty APPLIANCE TYPE Document to be kept by the user (to be submitted only in case of complaint) - Page 32 AEROMAX SWIMMING POOL 2 Swimming pool heat pump connected heat Thermor, All our solutions and advice can be found on www.thermor-heating.com...
