SOLAR

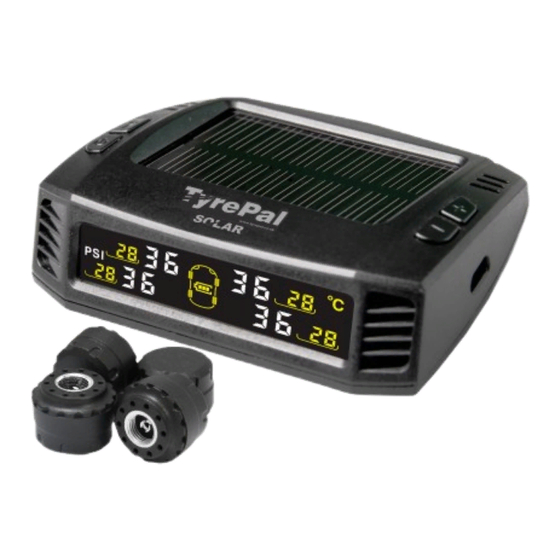

Tyre Pressure Monitoring System
TyrePal Solar
Innovative safety solutions for your peace of mind
TyrePal, Wheel Solutions Ltd, Unit 2 Upper Keys Business Park, Keys Park Road,
Hednesford, Cannock, Staffordshire, WS12 2GE
Tel: +44 (0) 1543 870190
Email: Enquiries@tyrepal.co.uk
User manual TyrePal Solar Colour V5 20190828
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WSL TyrePal Solar
Summary of Contents for WSL TyrePal Solar

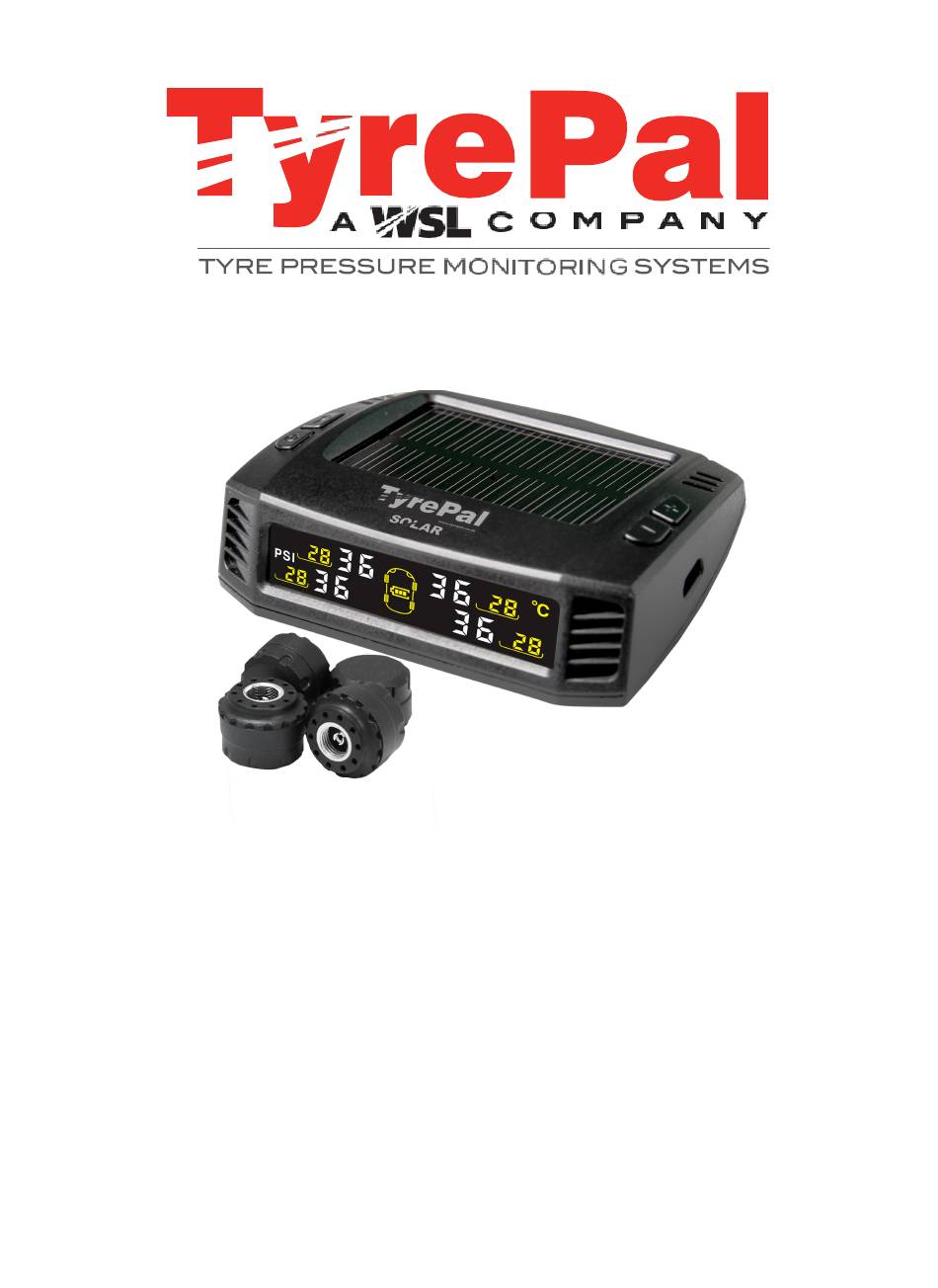

- Page 1 Innovative safety solutions for your peace of mind TyrePal, Wheel Solutions Ltd, Unit 2 Upper Keys Business Park, Keys Park Road, Hednesford, Cannock, Staffordshire, WS12 2GE Tel: +44 (0) 1543 870190 Email: Enquiries@tyrepal.co.uk User manual TyrePal Solar Colour V5 20190828...
-
Page 2: Table Of Contents
CONTENTS Sections Page System Contents Monitor Icons Important Safety Notes Before Installation Wheel Balancing Charging The Monitor Monitor Mounting Turning On And Off Tyre Pressures And Alert Levels Sensor Installation Sensor Battery Replacement Registering sensors Settings Mode Set Units Set Alert Levels Normal Display Warnings And Alerts Low Battery Warnings... -
Page 3: System Contents
1. SYSTEM CONTENTS Monitor accessories Stick y Pad DC-DC Power CD Monitor USB Cable (1 pc) Adaptor (1 pc) (1 pc) (1 pc) Sensor accessories Dust Shield TCSO/N Sensor Sensor Tool Hex Nut Rubber O-Ring Hex Wrench (1pair) (1pc) (4pcs) (4pcs) (4pcs) 2. -
Page 4: Important Safety Notes
3. IMPORTANT SAFETY NOTES What to expect Unless you have used this type of TPMS before, you will probably be unaware of what happens to your vehicles tyres whilst driving. The tyre pressure and temperature will naturally increase whilst you are driving your vehicle. This is completely normal and is taken into account when the tyres are designed and manufactured. -
Page 5: Before Installation
4. BEFORE INSTALLATION Before installing the system, ensure that it is suitable for your vehicle. It will also be necessary to fit the batteries provided into the sensors. See section 6 for instructions. ▪ The operating pressure of your tyre must be within the range of the system. i.e 0-6.8bar (0-99psi). ▪... -
Page 6: Sensor Installation
5. SENSOR INSTALLATION The sensors are pre-registered to the monitor and labelled with the appropriate tyre position. LF, LR, RF, RR, for 4 tyres. It’s highly recommended to install the sensor on the correct wheels You can add sensors if required, using positions LR2, RR2 and the spare wheel. Note: Install the sensors to the appropriate tyres. -
Page 7: Sensor Battery Replacement
6. SENSOR BATTERY FITMENT / R E P L AC E M E N T When the sensor low battery icon is displayed, shows on the monitor and corresponding tyre icon is flashing, the sensor battery needs replacing. A CR1632 battery for TCSO/N, which operates at -20ºC to 80ºC, is recommended. -
Page 8: Registering Sensors
7. REGISTERING SENSORS The system comes with 4 sensors pre-registered to appropriate wheel positions on the monitor. There is no need to register these again. If additional sensors are required, they can be registered / coded to the required wheel position using the following instructions. (The monitor can accept up to 7 sensors in total –... -
Page 9: Set Alert Levels
7.3 Set alert levels ▪ For recommended alert levels, see Section 4.5 ▪ In settings mode, scroll through the pressure and temperature settings until the wheels for the front axle are flashing. ▪ Press the UP (+) or DOWN (-) button to adjust the high pressure alert setting. -
Page 10: Normal Display
7.4 Normal display In normal display, the tyre pressures and temperatures are displayed on the monitor. Note that the reading is not instantaneous, but is the value stored in the monitor which is updated every six seconds. If two extra sensors have been registered to the system, the monitor will show the extra two sensors on a second screen, alternating between the two screens. -
Page 11: Alarm Condition
9. ALARM CONDITION High / Low Pressure Alert / High Temperature Alert / Fast Leakage Alert / Sensor Low Battery Alert The monitor displays the temperature and the pressure data of four sensors simultaneously. The corresponding alert icon and red LED will flash together with a warning beep when the sensor detects abnormal conditions from the tyre. -
Page 12: High Temperature Alert
9.3 High temperature alert If the front left tyre temperature is 71ºC the monitor will alert together with a warning beep, and the red LED will flash Tyre icon flash Temperature data flash Alert icon flash 9.4 Fast leakage alert The sensor will send an alert to the monitor if it detects fast leakage in a tyre. -
Page 13: Other Functions
10. OTHER FUNCTIONS Monitor can display up to 7 tyres (including spare tyre) 7 sensors (for motorhome): displays as below 11. TECHNICAL SPECIFICATION 11.1 Monitor Specification Temperature Pressure setting 16-99PSI -20ºC ~ 93ºC (77ºF ~ 199ºF) setting range range (1.0-9.9BAR) Working -20ºC ~ 80ºC Frequency... -
Page 14: Sensor Specifications
Working -20ºC ~ +80ºC Temperature Storage -20ºC ~ +85ºC Temperature Pressure range 0~99 PSI 0~6.8 BAR Pressure accuracy 1.5 PSI 0.1BAR) Temperature 3ºC accuracy Transmission <10dBm power Transmission 433.92MHz frequency Battery life 18 months Dimension 21 Ф X17.5 (H) mm Weight 12 g 1. -
Page 15: Managing Tyre Pressures
12. MANAGING TYRE PRESSURES The recommended tyre pressures are given in the vehicle handbook and are designed to give the best balance between comfort, road-holding and fuel economy for a given vehicle. The side-wall of the tyre is embossed with the maximum pressure for the tyre. This is NOT the recommended service pressure. - Page 16 TyrePal Limited Wheel Solutions Limited Unit 2 Upper Keys Business Park Keys Park Road Hednesford, Cannock Staffordshire WS12 2GE Tel: +44 (0) 1543 870190 Email: Enquiries@tyrepal.co.uk Implementation Standard: Q/YAT001-2017 Implementation Standard: Q/YAT001-2017 Impl ementati on Standard: Q/YAT 001-2017...
