Summary of Contents for Albixon Inverboost C

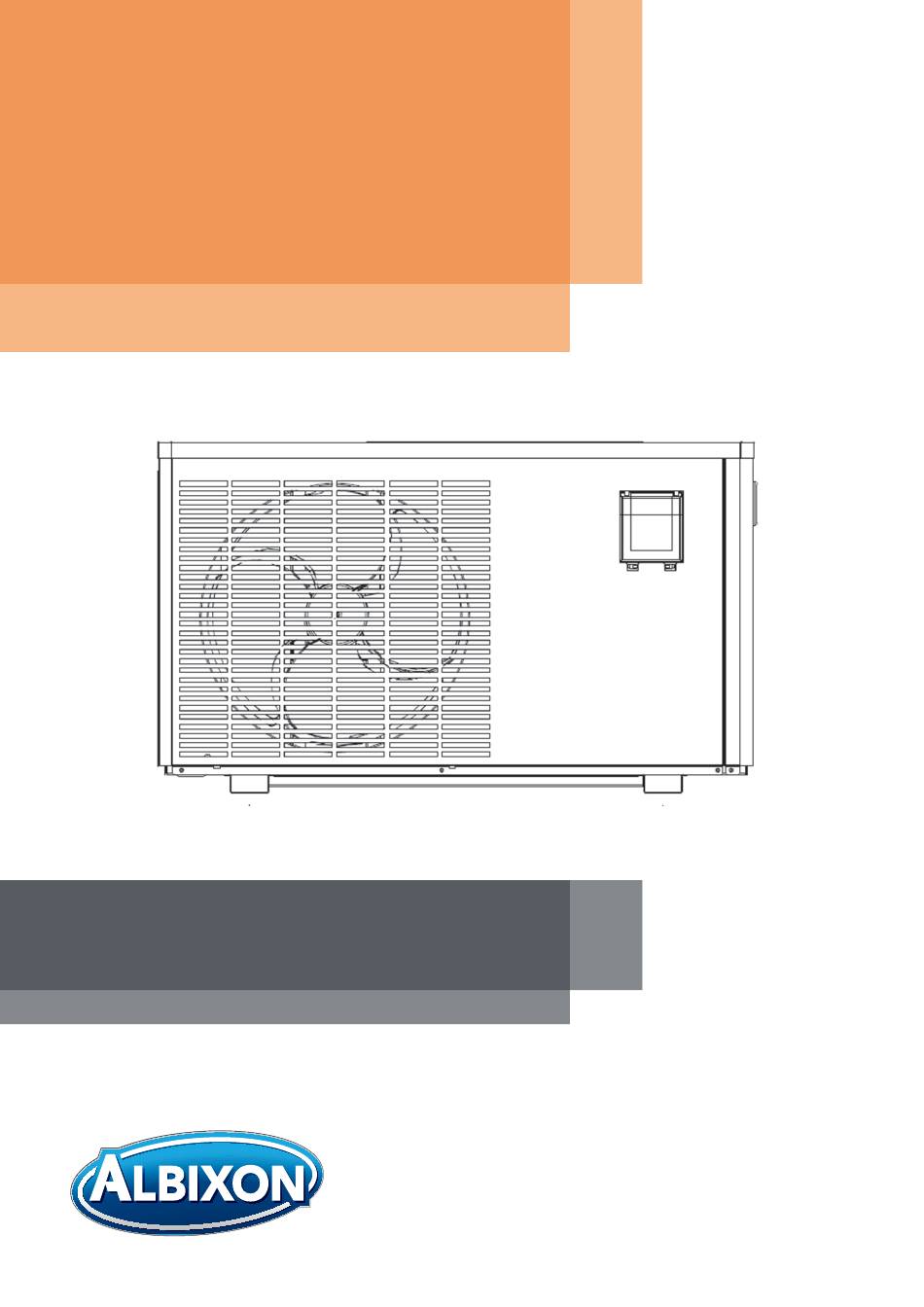

- Page 1 Swimming Pool Heat Pump Inverboost C INSTALLATION AND USER GUIDE VERZE 17. 01. 2020 / 17. 01. 2020...
- Page 2 2. The operator shall keep the records for at least five years, undertakings carrying out the activities for operators shall keep copies of the records for at least five years. / Swimming Pool Heat Pump Inverboost C...
-
Page 3: Table Of Contents
5 Please keep the display controller in a dry area to protect the display controller from being damaged by humidity. 6 Action of filling gas must be conducted by professional with R32 operating license. Swimming Pool Heat Pump Inverboost C /... -
Page 4: Dimension
• User and service manual • Drain connection (qty: 2) • Drain hose (qty: 2) • 10 meters’ signal wire • Waterproof box • Anti-vibration base (pcs: 4) 1.2. Dimension (unit: mm) XHPFDPLUS100E / Swimming Pool Heat Pump Inverboost C... - Page 5 XHPFDPLUS160E Swimming Pool Heat Pump Inverboost C /...
-
Page 6: Transport Information
Smoking and the use of flames are prohibited near R32 machine. Water connection are not to be used as load bearing handles. The manufacturer would not take the responsibility in case of damage to the water pipes. / Swimming Pool Heat Pump Inverboost C... -
Page 7: Specifications
Horizontal Fan speed ot/min. 500-850 550-850 Noise level(1m) dB(A) 40-52 41-54 Refrigerant (R32) 1100 equivalent Tonne 0,44 0,74 * Dimension/ Weight Net weight Gross weight Net dimension 937*360*554 1057*410*696 Packing dimension 995*405*580 1115*475*720 Swimming Pool Heat Pump Inverboost C /... -
Page 8: Accessories And Options
The valves allows the optimum flow of water using a manometer to make sure the optimized running of the compressor, see paragraph 5.6 controls of the pressure. / Swimming Pool Heat Pump Inverboost C... - Page 9 2. Connect the cables in the correct terminal according to electric diagram. Filtration pump wiring (Dry contact) 1. Open the top cover of the heat pump. 2. Connect the cables in the correct terminal according to electric diagram. Swimming Pool Heat Pump Inverboost C /...
-
Page 10: Location And Connection
See the drawing below for minimum dimensions Air inlet Air out Air outlet Air in / Swimming Pool Heat Pump Inverboost C... - Page 11 Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty. Item Product description Filter Check-valve Chlorinator Water Pump P-trap Check-valve In-linw Chlorinator or Brominator Swimming Pool Heat Pump Inverboost C /...
- Page 12 In order to heat the water in the pool (or hot tub), the filtration pump must be running to cause the water to circulate through the heat pump. The heat pump will not start up if the water is not circulating. / Swimming Pool Heat Pump Inverboost C...
-
Page 13: Electrical Wiring
This is common practice on commercial and residential heat pumps. It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being serviced. Swimming Pool Heat Pump Inverboost C /... - Page 14 • Open the button upwards as (Photo 1 ) • Fix the dry contact wiring through the two holes as (Photo 2 & Photo 4) • Press down the button and tighten the wiring as (Photo 3 ) / Swimming Pool Heat Pump Inverboost C...
-
Page 15: Initial Operation
The unit will restart automatically after this time delay expires. Even a brief power interruption will trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this delay period do not affect the 3-minute duration of the delay. Swimming Pool Heat Pump Inverboost C /... - Page 16 15~25 25~35 Water temp (°C) Pressure gauge (Mpa) 0,59~0,85 0,85~1,18 1,18~1,59 1,59~2,1 Unit Condition Running Ambient (°C) Water temp (°C) 10~15 15~20 20~25 25~30 30~35 Pressure gauge (Mpa) 1,1~1,6 1,3~1,8 1,5~2,1 1,7~2,4 1,9~2,7 / Swimming Pool Heat Pump Inverboost C...
- Page 17 (default: Smart mode). Press for 5 seconds again to exit automatic mode and switch to heating mode (default: Smart mode) Note: Under Automatic mode, it is useless to set parameter P1 . Swimming Pool Heat Pump Inverboost C /...
- Page 18 Auto Mode Heating mode Operation logic of Auto Mode: Tset=28°C Standby Cooling Heating Standby Heating Heating Standby Logic of auto mode / Swimming Pool Heat Pump Inverboost C...
- Page 19 Timer on HH:MM 00:00 0-23:0-59 Timer off HH:MM 00:00 0-23:0-59 Water temp. calibration -9~9 Výchozí nastavení: 0 NOTE: Under defrosting mode, P0=1. After defrosting finished, it will be automatic enter Normal mode, P0=0. Swimming Pool Heat Pump Inverboost C /...
- Page 20 While you choose the Silent, the heat pump will just operate in ‘Medium output’ and ‘Small output’ When in ‘Small output’, the lamp of Silent will flash. When in ‘Medium output’, the lamp of Silent is lit, the lamp of Smart will flash. / Swimming Pool Heat Pump Inverboost C...
- Page 21 Tset = Tseting water temperature, for example: Tset = 28°C Tseting water temperature in your pool heat pump Tset-0.5 = less 0.5°C than Tseting temperature, Tset- 0.5 = 28-0.5=27.5°C Tset+0.5= more 1°C than Tseting temperature, Tset+ 0.5 = 28+0.5=28.5°C Swimming Pool Heat Pump Inverboost C /...
- Page 22 EE04 Overheating Heating Tout -Tset = > 7°C 36°C 29°C protection for water mode temperature (T2) PP11 Too low Cooling Tset -Tout = > 7°C 23°C 30°C protection for water mode temperature (T2) / Swimming Pool Heat Pump Inverboost C...
-
Page 23: Troubleshooting
2. Check refrigeration system Piping temperature 2. Refrigeration system is 3. Change the pipe temperature too high protection PP10 abnormal sensor (TH2) under cooling mode 3. Pipe temperature T3-TH2 sensor(TH2) failure Swimming Pool Heat Pump Inverboost C /... - Page 24 4. The difference of outlet temperature sensor or replace (d2- TH5) in heating water temperature and a new one. mode set temperature is 7°C or 4. Change the set temperature. above in heating mode / Swimming Pool Heat Pump Inverboost C...
- Page 25 3. The wire is damaged communication wire or failure between Main replace a new one EE09 control board and 3. Check the wirings according Driving board to the electric diagram 4. Replace a new PCB Swimming Pool Heat Pump Inverboost C /...
- Page 26 4. The screw on driver board one if any failure. IPM module is loose 3. Change the fan blade if it is temperature too EE15 broken high protection 4. Check the screw on driver board / Swimming Pool Heat Pump Inverboost C...
- Page 27 1. Check the main board or step change a new one 2. Wrong program 2. Update the correct program Software control EE21 3. Impurity inside compressor 3. Check the refrigeration system exception causes the unstable rotate speed Swimming Pool Heat Pump Inverboost C /...
- Page 28 EEPROM data EE27 malfunction 2. Main board failure Main board failure 1. Stop electricity supply and The inter-chip restart it communication 2. Change a new main board EE28 failure on the main control board / Swimming Pool Heat Pump Inverboost C...
- Page 29 1. Check the location of heat pump unit, and eliminate all obstacles to make good air Too much ice on Too much ice on Fan. evaporator evaporator. 2. Replace or repair the heat pump unit. Swimming Pool Heat Pump Inverboost C /...
-
Page 30: Exploded View
Exploded view Model: XHPFDPLUS100E / Swimming Pool Heat Pump Inverboost C... - Page 31 2-ways terminal block Water inlet temp. sensor d1-TH6 Right side panel Drainage plug Clip Electric box cover Evaporator temperature sensor d3-TH2 Back panel Magnet ring Cable ring Electric box Cable connector Magnet ring Swimming Pool Heat Pump Inverboost C /...
- Page 32 Model: XHPFDPLUS160E / Swimming Pool Heat Pump Inverboost C...
- Page 33 Water inlet temp. sensor d1-TH6 2-ways terminal block Blue rubber ring Right side panel Electric box cover Clip Evaporator temperature sensor d3-TH2 Electric box Back panel Magnet ring Cable ring Magnet ring Cable connector Swimming Pool Heat Pump Inverboost C /...
-
Page 34: Maintenance
6. Loosely reconnect the connection parts for water intake and outlet to/from the heat pump in order to avoid any pollutants being deposited in the pipes. This is only the case when you have no possibility to store the heat pump according to item 5. / Swimming Pool Heat Pump Inverboost C... - Page 35 Notes Swimming Pool Heat Pump Inverboost C /...
- Page 36 Thank you for using ALBIXON products ALBIXON export@albixon.com www.ALBIXON.com Note that the photos used in the manual are illustrative only. Printing and typesetting errors reserved.
