Summary of Contents for Meyer Sound Galileo GALAXY

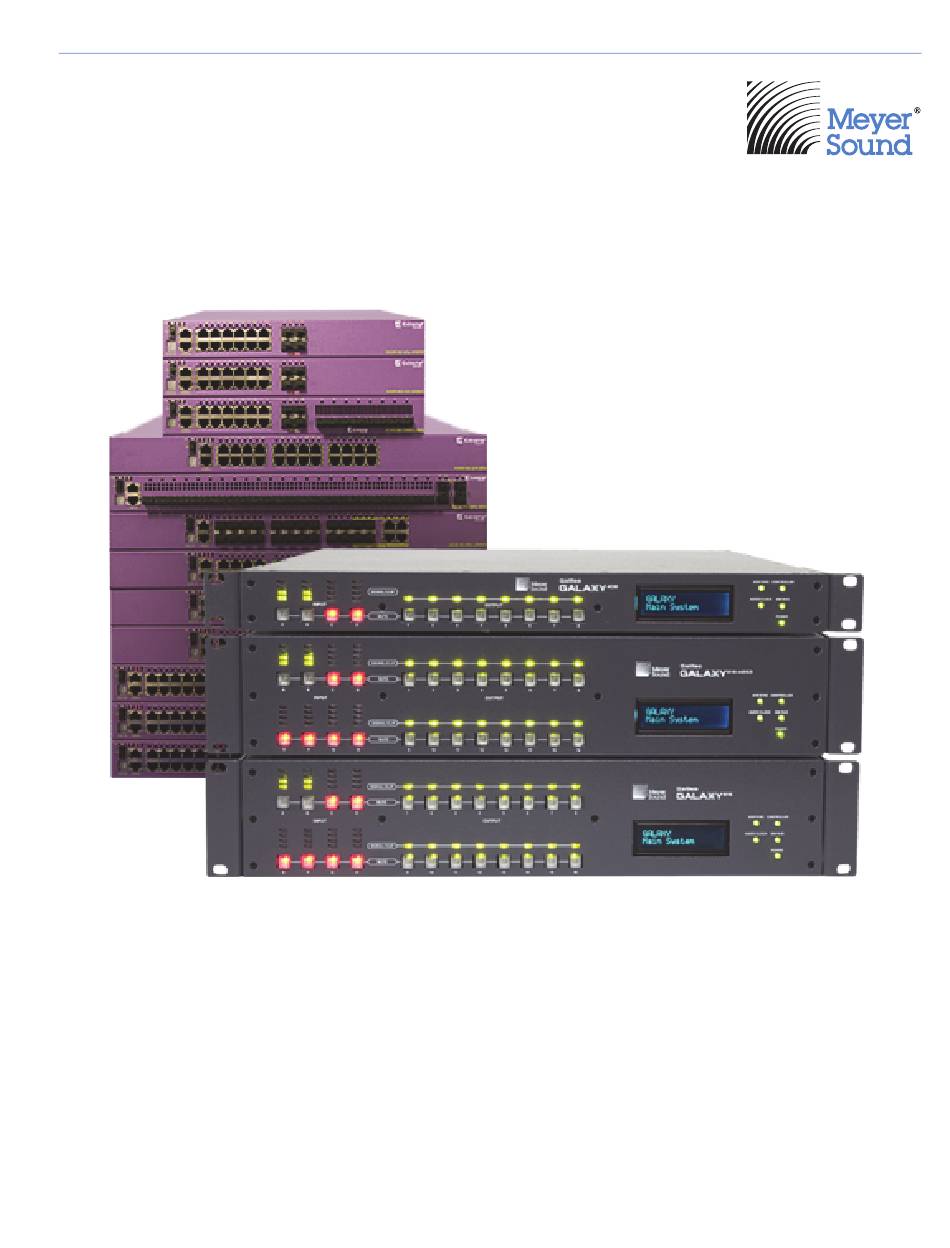

- Page 1 USER GUIDE CREATE Galileo GALAXY AVB Extreme Switch Configuration Keep these important instructions. Check www.meyersound.com for updates.
- Page 2 The contents of this manual are furnished for informational purposes only, are subject to change without notice, and should not be construed as a commitment by Meyer Sound Laboratories Inc. Meyer Sound assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording or otherwise, without prior written permission from Meyer Sound.
-
Page 3: Table Of Contents
GALAXY AVB EXTREME SWITCH CONFIGURATION USER GUIDE CONTENTS Chapter 1: Introduction How to Use This Guide Chapter 2: Extreme Networks AVB Feature Pack Extreme Networks Switch Quickstart Enabling the AVB Feature Pack Configuring the AVB Feature Pack Resetting the AVB Switch Resetting the Switch from a Terminal Window... -
Page 4: Chapter 1: Introduction
CHAPTER 1: INTRODUCTION When building an AVB network with one or more Meyer Sound AVB products, use an AVB-compliant device, preferably one certified by the Avnu Alliance. Click the following link to see the Avnu-certified Extreme Networks Summit Family switches: http://www.extremenetworks.com/... -
Page 5: Chapter 2: Extreme Networks Avb Feature Pack
GALAXY AVB EXTREME SWITCH CONFIGURATION USER GUIDE CHAPTER 2: EXTREME NETWORKS AVB FEATURE PACK Extreme Networks switches do not perform AVB functions out-of-the-box. First purchase and install an Extreme Networks Audio Video Bridging Feature Pack. The AVB Feature Pack includes a voucher that will generate an AVB license key when redeemed. -
Page 6: Extreme Networks Switch Quickstart
CHAPTER 2: EXTREME NETWORKS AVB FEATURE PACK EXTREME NETWORKS SWITCH QUICKSTART The network ports on the G2 Extreme Networks switches do not have an associated IPv4 address. NOTE: This method may not work if a switch has already been configured. If that is the case, program the Management VLAN with the same IPv4 address and subnet as the default VLAN. - Page 7 GALAXY AVB EXTREME SWITCH CONFIGURATION USER GUIDE The next steps will let you to get started quickly but do not enact Security features. Evaluate your network and enact the features you deem necessary. From the Dashboard, click the Next button to continue unless you wish to create custom login settings. In that case, click Configure>Quick Setup Account, update your login settings, then click the Next button.
-
Page 8: Enabling The Avb Feature Pack
CHAPTER 2: EXTREME NETWORKS AVB FEATURE PACK ENABLING THE AVB FEATURE PACK If not already logged in, connect to a network port, and set the user IP to a compatible subnet of the switch. When prompted to log in, type admin for the user Login, leave the Password field blank, and click Sign in (or press Enter). -
Page 9: Configuring The Avb Feature Pack
GALAXY AVB EXTREME SWITCH CONFIGURATION USER GUIDE CONFIGURING THE AVB FEATURE PACK If not already logged in, connect to a network port, and set the user IP to a compatible subnet of the switch. When prompted to log in, type admin for the user Login, leave the Password field blank, and click Sign in (or press Enter). - Page 10 CHAPTER 2: EXTREME NETWORKS AVB FEATURE PACK All AVB-enabled ports on your switch will display (see Figure 1). Figure 1: Enabling AVB ports and displaying status Type the following commands in the order listed: enable snmp access configure snmp add community readonly public configure vlan "Default"...
-
Page 11: Resetting The Avb Switch
Enter. CAUTION: For Meyer Sound devices that support MILAN redundancy, Rapid Spanning Tree Protocol, RSTP, is not recommended. RSTP execution can result in unexpected changes in the network topology that could affect clock and signal propagation and therefore could cause audio dropouts. - Page 12 CHAPTER 2: EXTREME NETWORKS AVB FEATURE PACK To reset the switch from its console port, do the following: Connect the USB to serial adapter to your computer. Insert the serial to RJ45 adapter into the console port of the switch. Use the serial cable to connect both adapters.
- Page 14 Meyer Sound Laboratories Inc. 2832 San Pablo Avenue Berkeley, CA 94702 © 2019 Meyer Sound Laboratories Inc. All rights reserved www.meyersound.com GALAXY AVB Extreme Switch Configuration Guide, PN 05.230.105.01 B T: +1 510 486.1166...
