E L E C T R O N I C C I R C U I T S
MINIATURE STEREO POWER AMPLI. 2 x 0,5 W.

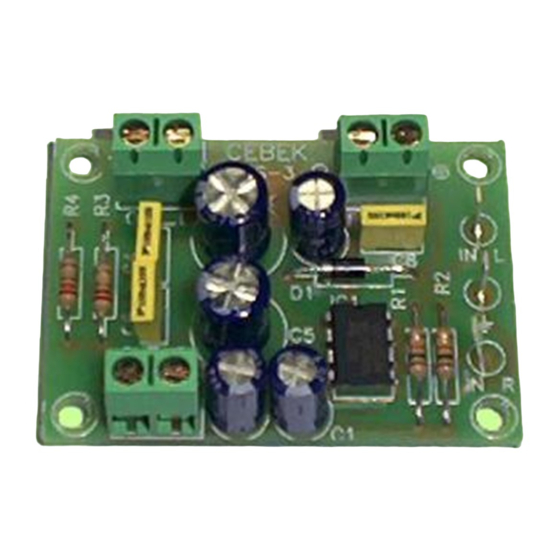

The ES-3 module is a stereo power stage, with a maximum power by channel of 0,5W. It could connected to the mixer
output or to the auxiliary input of a sound device.
It is supplied by 12 VDC and the recommended power supply is the FE-2 module.
Because all the information indicated in this manual instruction, you had to read it.

TECHNICAL CHARACTERISTICS.

Voltage ......................................................................................................... 12 V. D.C.
Minimum Consumption ............................................................................... 10 mA.
Maximum Consumption .............................................................................. 50 mA.
Minimum Input Signal .................................................................................. 0'5 W.
Output Impedance ....................................................................................... 4 - 8 Ohms
Protection Against Polarity Inversion ............................................................. Yes
Sizes .............................................................................................................. 55 x 40 x 15 mm.

OPERATING.

POWER SUPPLY.

The ES-3 module had to be supplied by 12 VDC. Then, we recommend you our FE-2 module which
has been specially design for this circuit needs. Connect the positive terminal of the Power Supply to the positive pin
indicated in the drawing. Then, do the same operation with the negative terminal.
well done .
OPERATING. To connect input signals, you had to use shielded cable and parallel cable for loudspeakers. For the input
and output audio connections, power supply had to be disconnect.
Be careful to not confuse the input and the output audio
Connect the right and left audio inputs according to the drawing. Connect both ground to the central terminal. Do the
same operation with right and left audio outputs and their ground.

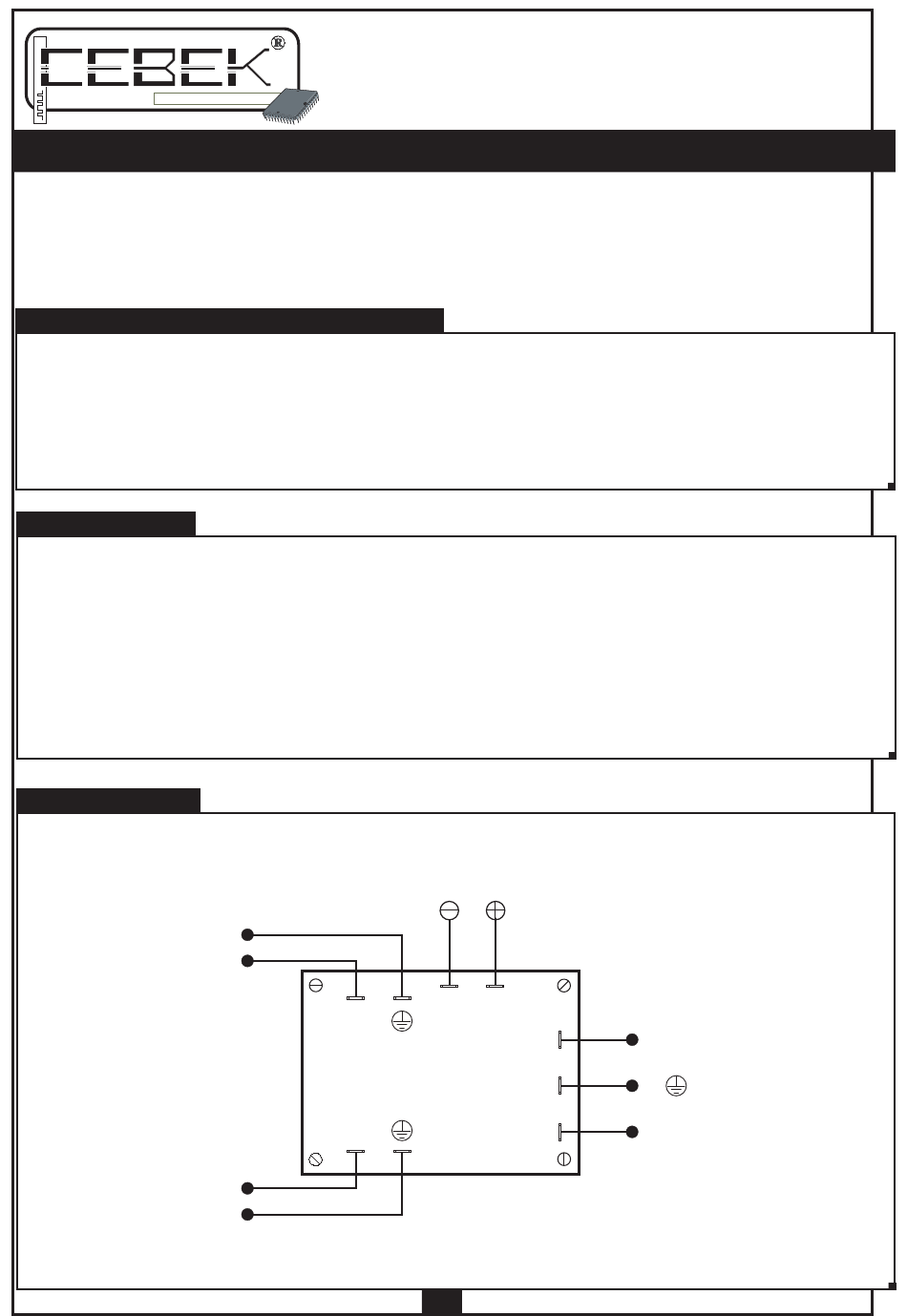

WIRING MAP.

Output Left
Output Right
to not damage the module.
ES-3
1
ES-3
Verify that the assembly has been
Input Left
Input Right
