Xiaomi MIFa Manual

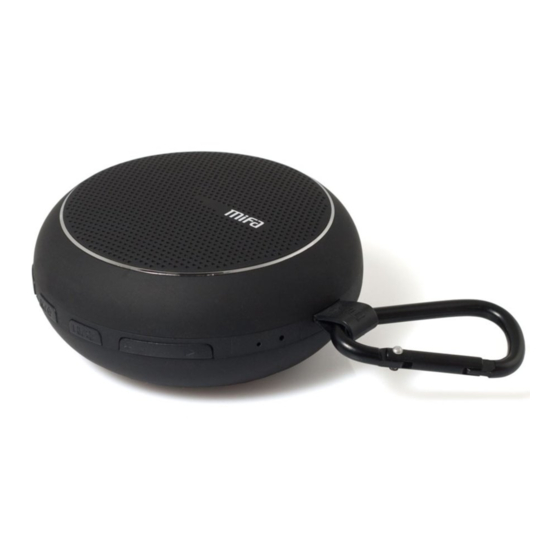

Portable speaker MiFa
Accesories
MIFA speaker
Shackle
Manual
Warranty card
USB cable
Pairing with other device via Bluetooth
Turn on the power. After
the beep, and the phrase
«Bluetooth enabled», the
blue indicator light starts to
On the smartphone find MiFa
flash. The device is ready
F1 device and connect to
to communicate with your
it. The default password is
smartphone.
0000.
Speaker will connect with familiar devices automaticaly. To
unbind speaker from device, long press the Start / Stop button.
And only after that pair it with another device.
Speaker structure
V- Prev.: Short press for previous track, long press for volume
down.
V+ Next.; Short press for next track. long press for volume up.
Red indicator: Blinks when charging is
needed, lights when charges, out when
charged.
Microphone
Start / Stop. Long press - unpair speaker
from a Bluetooth device, short press - to pair
again.
M: Turn-off. Short press to turn on Bluetooth mode,
press twice to enter the SD card mode, press three
times to enter the USB mode, long press for 3
seconds to switch on / off.
Incoming calls button. Short press o answer, long press to
deny.
Characteristics
Type of device Portable Bluetooth speaker
Speaker system Mono
Active
Controls Button
Features One button control, handless control,
Bluetooth connection, SD-card, USB
sound card mode, card reader.
Memory to 32 GB flash card support
Power 1100 mAh battery
Charger 5V 500 mA adaptor, USB connection
Ouput power 3 W, 4 Ohm
Freq range 80 - 18 000 Hz
Bluetooth 2.1 +EDR
USB USB 2.0, support USB 1.1
Formats ape, flac, wma, wav, mp3
Reset to factory settings
Blue: blinks: Connect
with Bluetooth, burns
constantly-connected;
Flashes slowly -
pause;
Quickly blinks -
playback mode or
maximum volume.
To charge the
battery, connect
an adapter to 5V,
500mA DC or
computer via USB.
1. MiFa F1 speaker is not connected to a Bluetooth device.
Reset the speaker. When asked, set password 0000.
2. Playbaqck stucks.
Check Bluetooth connection, range (to 10 m.), reset speaker if
needed.
3. File format is not supported.
Check type of the SD-card file system (supports FAT32). Also
check music file formats. Speaker supports ape, flac, wma, wav,
mp3 files with any bitrate.
4. Indicator shows connection is on, but music is no playing.
Check a volume of speaker, or play and pause mode.
Interfaces
Turn off the speaker,
insert a SD-card,
connect the speaker to
a computer. You can
then upload the files to a
memory card.
USB sound card Mode. To connect
the speaker with computer, press M.
Now, you can play music from your
computer.
Insert an SD-card, press M button to
enter the card mode to play music.
