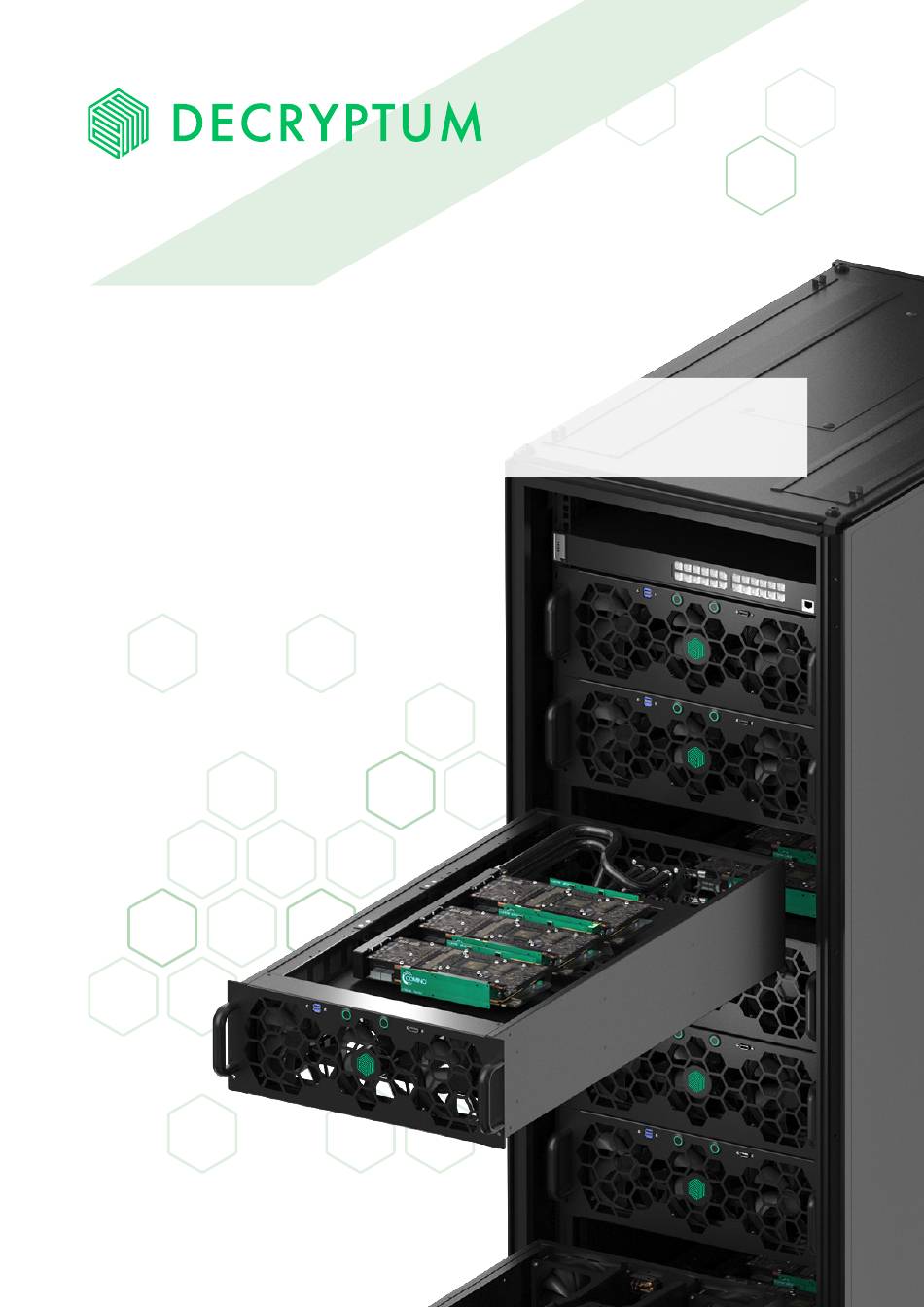

DECRYPTUM
PR 2080TI/12 4U
USER MANUAL
CMNO LTD. 2019
DECRYPTUM PR 2080TI/12 4U. USER MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PR 2080TI/12 4U and is the answer not in the manual?

Questions and answers

Related Manuals for DECRYPTUM PR 2080TI/12 4U

Summary of Contents for DECRYPTUM PR 2080TI/12 4U

  • Page 1 DECRYPTUM PR 2080TI/12 4U USER MANUAL CMNO LTD. 2019 DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 2 Congratulations on purchasing your DECRYPTUM Professional Computing Device. We are pleased to welcome you as a customer. These user instructions contain all safety information and instructions necessary for using your DECRYPTUM PR 2080TI/12 4U. Before using your device, please familiarise yourself with all relevant information.

  • Page 3: Table Of Contents

    OVERVIEW UNPACKING AND CHECKING THE CONTENTS SETTING UP STARTING UP THE DEVICE THE LIST OF ACTIONS IN CASE OF GPU FAILURE POWER SUPPLY UNIT LED INDICATORS DECRYPTUM PR 2080TI/12 4U. USER MANUAL...

  • Page 4: Unpacking And Checking The Contents

    Unpack the devices — computing unit and cooling unit (free cooler). Check if the package contains all of the components ordered (Pic.1): • DECRYPTUM PR 2080TI/12 4U main unit x1 A • Free cooler x1 B • Tubings with Quick Disconnect Couplings x2 C •...

  • Page 5: Setting Up

    Quick Disconnect Couplings (QDC) (see Pic.2). Respectively connect blue to blue and red to red QDC on the devices and hoses. QDC should be installed tightly, until a typical click. Blue to blue to red Pic.2 DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 6 SETTING UP Connect the free cooler to the main unit using the supplied switching cable (see Pic.3) Pic.3 WARNING IT IS FORBIDDEN TO TURN ON THE MAIN UNIT WITHOUT CONNECTING THE FREE COOLER TO IT! DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 7 (see Pic.4) Pic.4 WARNING THE FREE COOLER MUST BE CONNECTED TO A 220V NETWORK BEFORE TURNING ON THE COMPUTING UNIT. AN UNCONNECTED FREE COLLER UNIT CAN CAUSE DAMAGE TO THE COMPLEX! DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 8 <18°C, to position II if the temperature is >18°C. Pic.5 Make sure that the free cooler power button is in position Connect the monitor and keyboard to the computing unit. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...

  • Page 9: Starting Up The Device

    (see Pic.7) find the faulty card according to the connection slot numbers in the BIOS screen. Error (Red color) Pic.6 Pic.7 WARNING TO REPAIR A FAULTY GPU, DISCONNECT THE MAIN UNIT FROM THE 220V POWER SUPPLY. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...

  • Page 10: The List Of Actions In Case Of Gpu Failure

    If none of the abovementioned steps help, contact your Comino representative for troubleshooting. Pic.8 Pic.9 After each of the above mentioned steps, connect the com- puting unit to the 220v network and try to switch it on. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 11 — (RMB on the faulty GPU — remove the device) and reboot the operating system. If after rebooting and re-installing the drivers automatically the card in the device manager continues to display with an exclamation mark, you should contact your Comino representative to fix the problem. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...

  • Page 12: Power Supply Unit

    Electricity works must be coordinated with a certified electrician. Unauthorized works can cost you your life. The created line-to-line connection must only be used to connect Decryptum PR 2080Ti/12 4U and must not be used in everyday life. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 13 Branch circuit breakers If one branch is supplying 2 or 3 PMs, please use C25 circuit breaker. For supplying each PM separately, please install C16 circuit breaker in each branch. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 14 The power supply should be provided with a reliable protective earth ground. All sec- ondary return circuits should be connected to protective earth ground. DECRYPTUM PR 2080TI/12 4U. USER MANUAL...

  • Page 15: Led Indicators

    AC cord unplugged or DC power lost. Orange Attention required! Power supply critical event causing a shutdown: UVP, OVP, OCP, OTP*. * — Under Voltage Protection, Over Voltage Protection, Over Current Protection, Over Temperature Protection. Table 2 DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
  • Page 16 Manufactured by CMNO LTD. for Passware, Inc. 800 West El Camino Real, Suite 180 Mountain View, CA 94040 DECRYPTUM PR 2080TI/12 4U. USER MANUAL...
