MISUMI MP-550 Manual

Simple Style PVR Mamual
MP-550
Specification
M o d l e M P - 5 5
AV recorder resolution 640x480(VGA) / max 30 fps.
External Memory SD Card memory slot (support up to 32 GB)
Compression
MPEG 4 ASF file
Video
Synchronized audio & video recording/ playback
Video Output
TV out /AV in (NTSC/PAL)
AV In Mode ,
Function
Rec Mode ,
SD card Update ,
Snapshot ,
motion detect ,
loop overwrite ,
RTC date and time stamping
Power charge DC 5V(450mA)
PC Interface USB1.1
Dimension 40 x 90 mm
Format SDHC
Improve the SD SDHC Card 4GB ~32GB compatibility MP-550 support for SDHC, SDHC card(OVER 4GB~32GB)
must be special format processing ! through the pc to format SDHC Card Fat32 block size 16k
process:
WINDOWS SYSTEM
1.Click [Start],
2.then click the [running] 'button',
3. [Open] box, type: "diskmgmt.msc", and then click [OK],
then Right-click on SDHC CARD DISK and format block size 16 or 32K

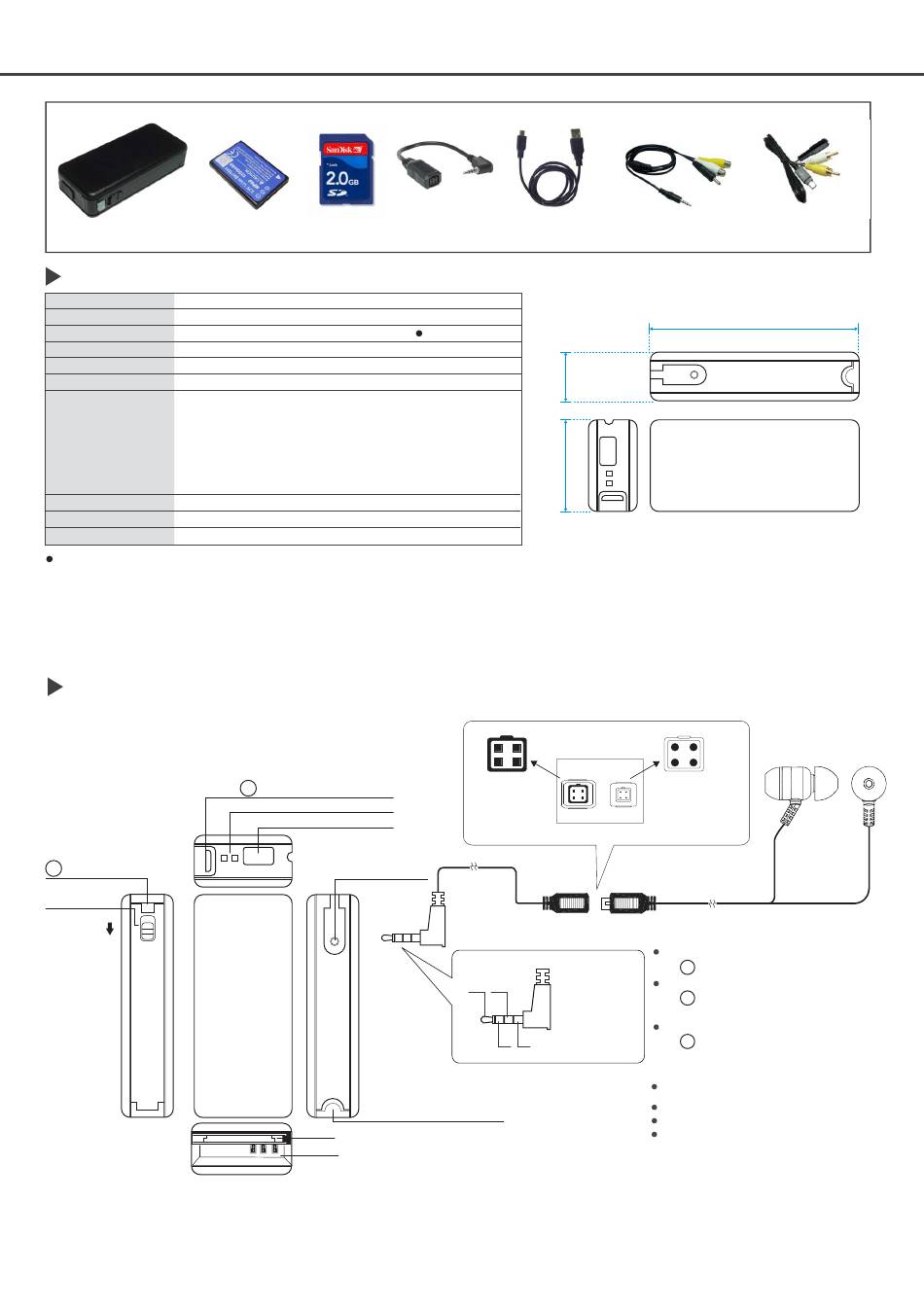

Instruction Drawing & Description
B
Snapshot
Power ON/OFF
ON
OFF
(Charge)
Battery SDHC 2G
0
A
REC / STOP (ONE Key Play)
LED Light
Mini USB
Phone jack (Camera)
Battery cover open / SDHC
SDHC
Battery
AF-224
USB Cable
20
40
1 2
3 4
Enlarge
1. VIDEO 2. DC 5 V
3. GND
Female
Interface for Female Plug
G
P
P:Power DC 5V
G:GND
V:VIDEO
A:AUDIO
A
V
Cable for camera Cable for TV
(model:AF-PDRR12-01) (model:AF-PDRR05)
90
2 1
4 3
2. DC 5 V 1. VIDEO
3. GND
Male
Male Plug Form Camera
(Camera-optional)
REC. MODE
VIDEO REC. /ON
A
press start recording
VIDEO REC. /STOP
press stop recording
A
SNAPSHOT MODE
SNAPSHOT
B
press start snapshot.
LED LIGHT
Blue light:SD Cared not be inserted or SD Cared
Memory Full
Red light:power charge
Red light(flash):recording
Red light(flash one time):Snapshot
unit:mm
