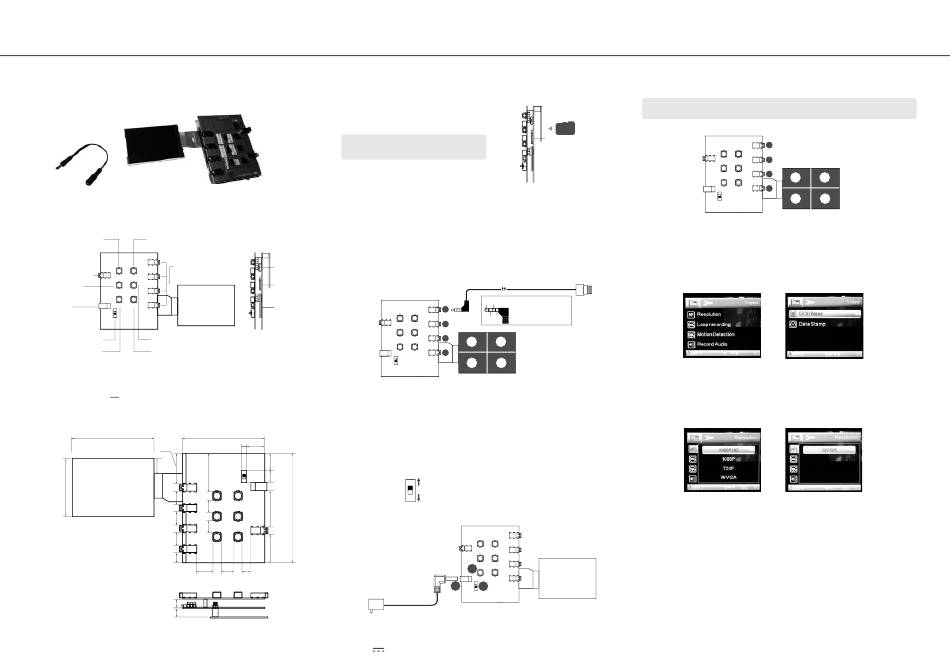

MISUMI MP-RV100 Quick Start Manual

4 Channel Mobile DVR

PACKAGE CONTENTS

OVERVIEW

Up Down
4 channel camera input
AV output (TBD)
(2.5mm phone jack)
(2.5mm phone jack)
REC. / Snapshot
/Play back
2.5" TFT LCD
Power input
DC 6V
Power switch(on/off) Enter
Menu
Working Button
DIMENSION(+0.5mm)
59.6
22.5
11
28
42.6
9.9
8.8
9.9
8.8
9.9
7.4
12
5.88
5.88

STORAGE SLOT

DVR supports microSD card up to 32GB. Use the microSD card to store your photos, videos.
1. Insert the microSD card according to the diagram
and push it until it clicks into place.
"Card error" means micro SD card is not
properly insert.

CONNECT WITH CAMERA

Four channel CVBS videos multiplexing into 720P output with H.264 compression and storage.
(Interface : Ø2.5mm phone jack / DC 5V-150mA power output for camera)
Micro USB(TBD)
Micro SD card slot
2.5" TFT LCD
connector
60
3.8 13.4

Turn DVR ON OR OFF

12.4
1. Insert adapter into DC power jack. (DC 6V/1A Max) power input)
9.08
2. Switch power on.
80
26.65 3. Turn on DVR by press "working button".
21
9.3 5.8
AC Adapter:
input: 100-240V-50/60Hz 0.6A
output: 6V 2A 12w Max
Micro SD card slot
(camera-optional)
P G
P: power G: GND
1
V: video A: audio
V A
2
3 4 3
4
2 1
ON
OFF
3
welcome
1
2

RECORDING MODE

Auto power-on option to start recording video once the auto engine is started.
720p Full HD recording at 30 fps with the latest H.264 technology for high quality videos
at a smaller file size.
1
2
3
4
4
2

RECORDING MODE MENU

Enter recording mode menu:
1. Stop recording by pressing "enter buttom".
2. Enter menu by pressing " menu button".
3. Go back to recording mode by pressing "mode button".

Resolution

1. Choose item by pressing "down buttom", then press "enter button" to confirm function.
2. Press "up button" and "down button" to choose enter menu.

Loop recording

Auto power-on option to start recording video once the auto engine is started.
If the memory card runs out of free memory, it will auto record over the old files.
Motion dectection(TBD), Record audio(TBD), GOD Bless(TBD), Date Stamp(TBD)
3
1
