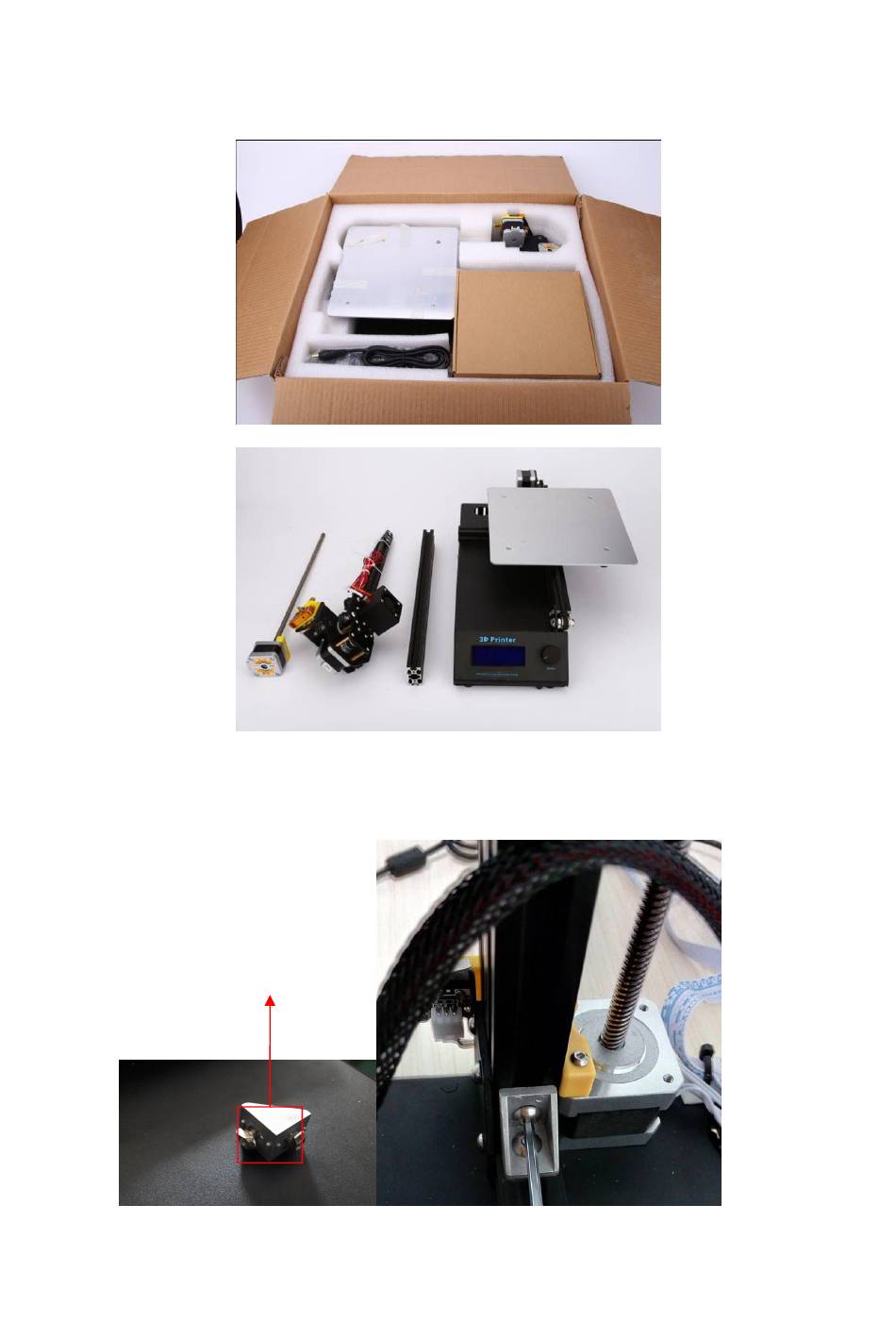

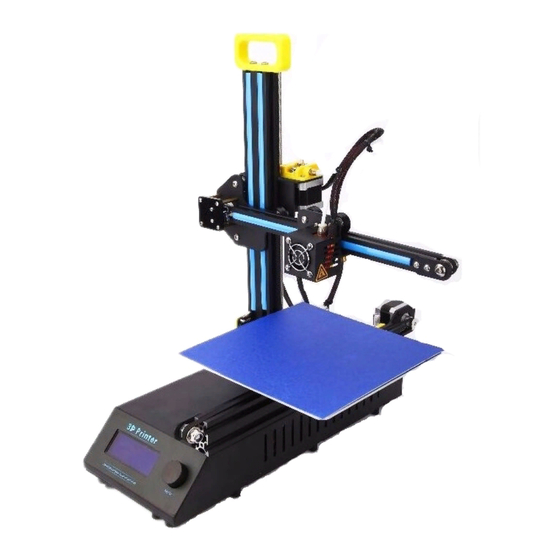

- Page 1 Equipment assembly instructions Open the packaging, accordance packing list, check the parts are intact. II. Z axis assembly 1. Assemble Z Axis Frame Two of Each M5 * 8 screws and M5 T-nuts...
- Page 2 End with Inside Screw upside Holding two planes on the same plane 2. Assembled Z-axis fixed block Four of each M4 * 8 screw and M4 T-nut 3. Install the Z-axis limit switch Two of each M4 * 10 screw and M4 T-nut One M5 * 12 screw...
- Page 3 First locking M4 * 14 Then lock M3 * 16 Prevent the motor end of the Z-axis tilt III. Install X axis Counterclockwise rotation Z-axis screw Pressing Teflon pipe joint, locking Teflon tube...
- Page 4 Install handle M5 * 12 screws IV. Circuit wiring 1. Motherboard wiring diagram...
- Page 5 2. The physical wiring diagram E Extruder Motor X-Axis Limit Switch X-Axis Motor Y-Axis Limit Switch Y-Axis Motor Z-Axis Limit Switch Z-Axis Motor...
- Page 6 3. Motherboard physical wiring diagram V. Install base Nine M3 chassis scr...
- Page 7 VI. Installation Completes...
