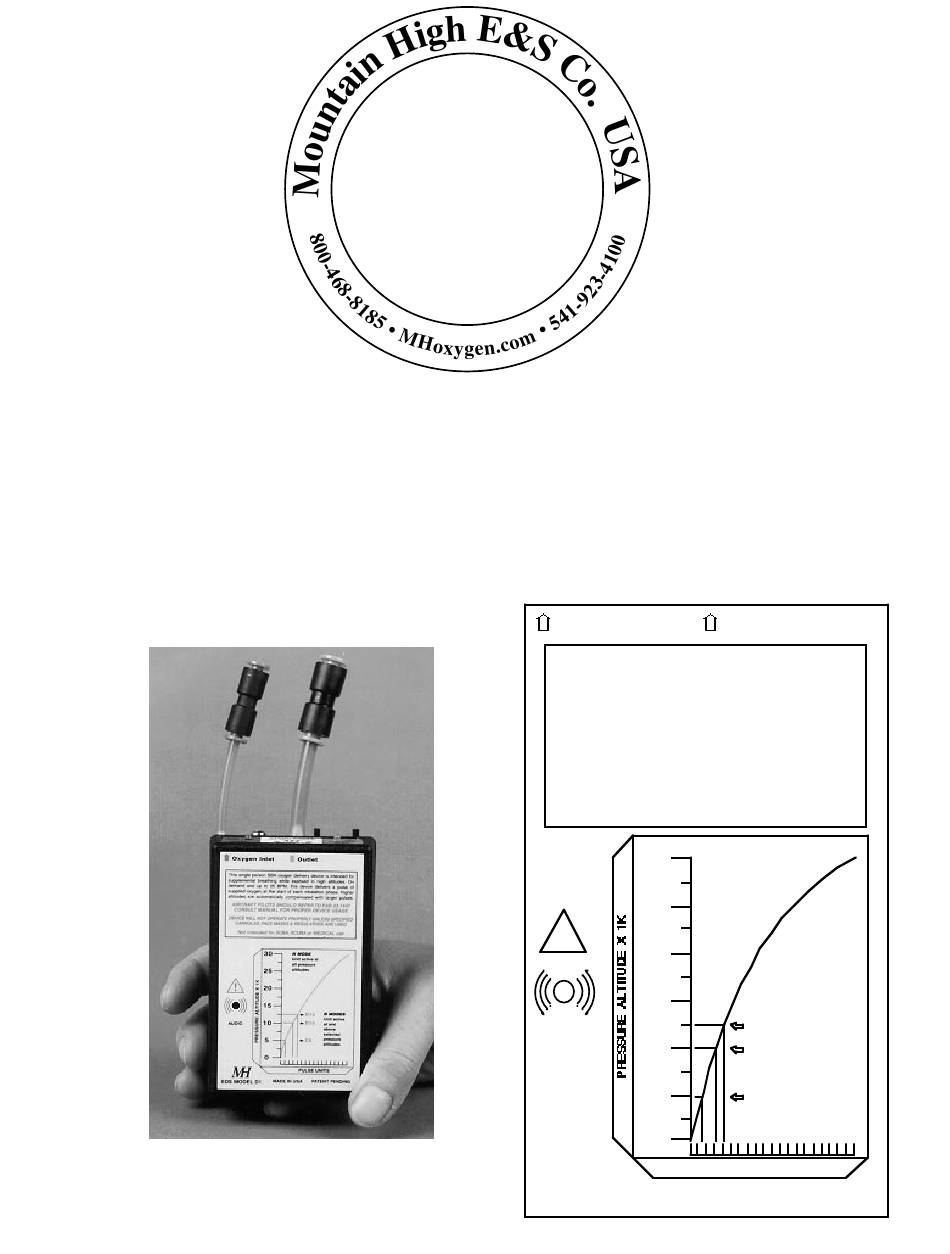

M H
Aviation
Oxygen Systems
Since 1985
OPERATING MANUAL
EDS
Electronic oxygen Delivery System
Featuring our Pulse-Demand technology
Patent Pending
for the
D1
Model
R 1.7
Oxygen
This single person SBA oxygen delivery device is intended for
supplemental breathing while exposed to high altitudes. On
demand and up to 25 BPM, this device delivers a pulse of
supplied oxygen at the start of each inhalation phase. Higher
altitudes are automatically compensated with larger pulses.
AIRCRAFT PILOTS SHOULD REFER TO FAR 23.1447
CONSULT MANUAL FOR PROPER DEVICE USAGE
DEVICE WILL NOT OPERATE PROPERLY UNLESS SPECIFIED
CANNULAS, FACE MASKS & REGULATORS ARE USED
Not intended for SCBA, SCUBA or MEDICAL use
!
AUDIO
M
H
EDSMODELD1
Inlet
O u t l e t
3 0
N MODE
Unit activ e at
all pressure
altitudes
2 5
2 0
1 5
D12
1 0
D10
D MODES
Unit active
at and
abov e
5
D5
s elect ed
pressure
altitudes
0
PULSE UNITS
MADE IN USA
P ATENT P ENDI NG
Advertisement
Table of Contents
Related Manuals for MH EDS-D1
Summary of Contents for MH EDS-D1
- Page 1 Aviation Oxygen Systems Since 1985 OPERATING MANUAL for the Model Electronic oxygen Delivery System Featuring our Pulse-Demand technology Patent Pending R 1.7 Oxygen Inlet O u t l e t This single person SBA oxygen delivery device is intended for supplemental breathing while exposed to high altitudes.
-
Page 2: Notice Of Non Liability
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * W a r r a n t y Mountain High Equipment & Supply Co. warranties your EDS-D1 unit/system against defects from materials and workmanship for long as you own and use it. -
Page 3: How It Works
With new user selectable settings, total apnea alarm and smaller size the new EDS-D1 provides the same reliable operation that users of the EDS-A1 have come to rely upon and more. The EDS-D1 operates on known physiological facts that the breathing cycle of a healthy, non-smoking person is such that about one-third of the time is spent inhaling while two-thirds is spent exhaling and pausing. - Page 4 (fig 1.) This is best done if the unit is held with the battery door facing up at you and out. The EDS-D1 unit uses a standard 9 (nine) volt alkaline battery connector system. This is a very positive- connecting type connector that requires a bit more force to connect and disconnect to the battery.
- Page 5 The EDS-D1 has proven to be very reliable and has been used by many pilots for several years in various types of aviation. The EDS-D1 unit and has no means inside itself to provide a by pass of oxygen in the event of a total failure.
- Page 6 "Night" or "Now" mode The first power on setting advanced from off is the N for "Night" or "Now" setting. At this setting the EDS-D1 will respond to breathing actions at all altitudes with the standard delivery protocol. The EDS-D1 will deliver pulses of oxygen at the effective flow rate of 1.0 liter/min.
- Page 7 If the EDS-D1 unit is used with one of our standard regulators, such as our XCP, XCR, RCV/RCR the R/M setting is intended for times when you may desire to receive oxygen during the (near) full reserve inspiration cycle to manage possible acute dyspnea (shortness of breath) and/or anxiety while under stressful and/or demanding flying conditions.
- Page 8 Display Information There are two high brightness LEDs on the EDS model D1. The green LED indicates positive oxygen flow for every breath. The red LED indicates any flow fault or apnea conditions and blinks for low battery conditions. FLOW FAULT ALARM The EDS model D1 will produce an optical (red LED) and audible flow fault alarm from the following reasons: 1.
-
Page 9: Life Expectancy
To clear a clogged valve follow these steps: 1 Remove the 6mm blue union from the outlet side of the EDS-D1 unit and replace it with a 4mm to 6mm reducing union. 4 mm. to 6 mm. reducing union kit 2. -
Page 10: Front View
25% RH @ +25° C. Max.: 100% RH @ +50° C. near condensing Allowable vibration during operation: Random vibration 5 to 500 Hz, 15 minutes per axis @ 2.5 g. (rms.) sin wave; Physical characteristics (EDS-D1 unit only): Height Outlet Width: 2.60" (6.60 cm.) Height A: 4.10"... - Page 11 IMPORTANT EDS INLET use with an EDS unit PRESSURE NOTICE TEST-SET If The EDS-D1 unit(s) will not be used with the XCR, XCP, micro-lite PN MHTG3060 system or EDS-STR regulator the alternate regulator must be able to with 0-4 bar (0-60 psig) pressure gauge deliver a dynamic (flowing) pressure of 1 bar (15 psig.
- Page 12 Complete single and multi-place carry-on EDS system packages are available along with padded fabric carry/strap-down harnesses for most of our kevlar-fiber and aluminum cylinders For size and weight critical applications our µ-lite (micro-lite) valve and regulator system with our new light-weight and small 'S' series cylinders offer compactness and capability never offered before.
