- Page 1 7th Edition Eclipse Double & Single Gate Controller ® ® with Eclipse Operating System (EOS) MC : Controller for Double and Single Gates Setup and Technical Information Includes latest Intelligent Technology www.elsema.com...
- Page 2 Elsema Pty Ltd shall not be liable for any injury, damage, cost, expense or any claim whatsoever to any person or property which may result from improper use or installation of this product.
-
Page 3: Table Of Contents
Menu 13 – i-Learning ..........................................28 28 Menu 14 – Password Menu 14 – Password ..........................................28 28 Menu 15 – Operational Records Menu 15 – Operational Records....................................28 28 Menu 16 – Tools Menu 16 – Tools ..............................................29 29 Accessories ........................30 www.elsema.com... -
Page 4: Features
Elsema’s easy options to add remote controls or any type of Photoelectric Beams makes for a very user friendly approach, while avoiding the lockdown approach to accessories. -
Page 5: Part Number Part Number

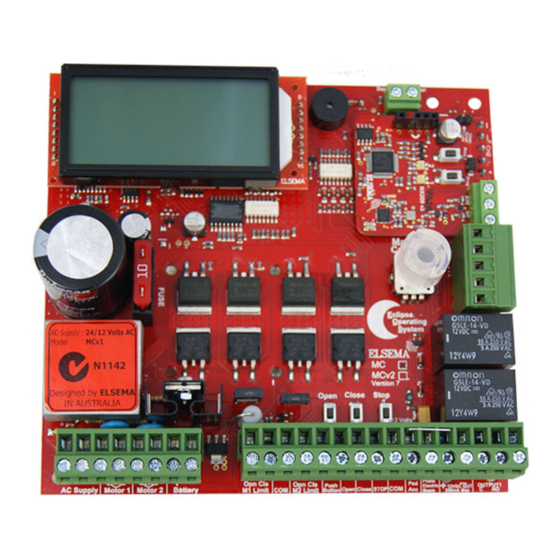

MPPT charger & 12 Volt 15.0Ah backup battery 40W solar panel. MC is suitable for motors up to 120 Watts. Above 120 Watts use MCv2. MC & MCv2 control card can be used to control automatic gates, doors, boom gates, automated windows & louvres. www.elsema.com... -
Page 6: Menu Structure
Menu Structure Press Master Control for 2 seconds to enter the menu MAIN Auto Close Auto Close Time AC Time with PE Trig SCREEN Pedestrian Access PA Travel Time PA AC Time Input Functions PE Polarity Limit Sw Polarity PE Beam Stops Motor PE Safety Beam Function on Close Cycle Stop &... - Page 7 Reset Max Current Records EXIT 16.7 16.5 16.6 16.3 16.4 Fuse Type : 10 or 15 Amps Travel Timer for Slip Motors Solar Gate Mode Reset Factory Default Test Inputs 16.10 16.9 16.8 EXIT Slow Speed Ramp Down Day / Night Sensitivity www.elsema.com...
-
Page 8: Connection Diagram
DNS Connection : On the top right corner of the control card is a connection for Day and Night Sensor (DNS). This sensor is available from Elsema and is used to detect daylight. This feature can be used to Auto Close the gate at night, turn on the courtesy light or lights on your gates during the night and many more features which require a day and night detection. -
Page 9: Setup Instructions Setup Instructions
The diagram below shows the supply, motors, battery backup and inputs available and the factory default setting for each input. AC Supply : 24/12 Volts AC Model : MC Open Close Stop Designed by ELSEMA Relay IN AUSTRALIA 12 or 24 Volts AC Supply Motor 1... -
Page 10: Limit Switches Limit Switches
Diode* Diode* Diode* Diode* Elsema : Diode FR604 By default the limit switch inputs on the control card are normally closed (NC). This can be changed to normally open (NO) during the setup steps. Double Gate & Door Controller with Eclipse Operating System (EOS) ®... -
Page 11: Setup I-Learning Steps Setup I-Learning Steps
5. Buzzer will indicate learning was successful. If there was no buzzer check all electrical wiring including the power supply then go back to step 1. 6. If you hear the buzzer after the i-Learn, the gate or door is ready for use. www.elsema.com... -
Page 12: Menu 1 - Auto Close Menu 1 - Auto Close
Auto Close and several special Auto Close features each one having its own countdown timers. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 13: Menu 2 - Pedestrian Access Features Menu 2 - Pedestrian Access Features
There are several types of Pedestrian Access modes. Pedestrian Access opens the gate for a short time to allow someone to walk through the gate but does not allow access to a vehicle. Elsema Pty Ltd recommends a Photoelectric Beam should be connected to the control card when any of the Auto Close options are used. -
Page 14: Menu 3 - Input Functions Menu 3 - Input Functions
* 3.4: This option is only available when used for single gate mode Motor 2 Open Limit terminal can be used to wire Elsema’s safety bump strip on a single gate application. Its functions are the same as it’s set in menu 12.7. -
Page 15: Menu 4 - Photoelectric Beam Menu 4 - Photoelectric Beam
The factory default for the PE beam input is “normally closed” but this can be changed to normally open in menu 3. Elsema Pty Ltd recommends a Photoelectric Beam to be connected to the control card when any of the Auto Close options are used. -
Page 16: Menu 5 - Relay Output Functions Menu 5 - Relay Output Functions
Menu 5 – Relay Output Functions The control card has two relay outputs, Output 1 and Output 2. The user can change the function of these outputs to lock / brake, courtesy light, service call, strobe (Warning) light, locking actuator or gate open (gate not fully closed) indicator. - Page 17 Used to alert installers or owners when service is due for the gate. Using Elsema’s GSM receiver allows installers or owners to get a SMS message & a phone call when the service is due.
- Page 18 Master Control Unfiltered DC Output Output voltage depends on supply voltage + if DC 12VAC/DC Output 2 C 24VAC/DC or 240VAC supply Output 2 NC Depends on the light - if DC Output 2 NO Strobe (Warning) Light when Opening or Closing The relay output is activated whenever the gate are operating.
-
Page 19: Menu 6 - Relay Output Modes Menu 6 - Relay Output Modes
6.1.3 Open Pre-Lock / Brake Activation This sets the time the output is activated before the motor starts in the open direction. Factory default is Off. www.elsema.com... - Page 20 Menu 6.2 – Courtesy Light The relay output in the courtesy mode can be adjusted from 2 seconds to 18 hours. This sets the time the courtesy light is activated after the gate has stopped. Factory default is 1 minute. Factory Menu No.
- Page 21 Also the control card outputs can be configured to be activated if the number of cycles is completed. Connecting Elsema’s GSM receiver to the output allows owners to get a phone call & SMS message when the service is due.
-
Page 22: Menu 7 - Special Features Menu 7 - Special Features
Menu 7 – Special Features The control card has many special features that can all be customised to your specific application. Factory Menu No. Special Features Adjustable Default Remote Control Open Only Off / On Holiday Mode Off / On Energy Saving Mode Off / On Automatic Stop &... -
Page 23: Menu 8 - Leaf Delay Menu 8 - Leaf Delay
8.3 Close Leaf Delay on Mid Stop By default motor 1 will always have delay when closing even if the gate is not fully open. When disabled both motor 1 and motor 2 will start closing at the same time only when not fully open. www.elsema.com... -
Page 24: Menu 9 - Motor 1 Obstruction Menu 9 - Motor 1 Obstruction
Menu 9 – Motor 1 Obstruction Detect Margins This sets the current sensitivity margin above the normal run current to trip the gate if an obstruction is detected. Different obstruction margins can be set for the open and close direction. Also the response time is adjustable. -
Page 25: Menu 10 - Motor 2 Obstruction Menu 10 - Motor 2 Obstruction
For high margin settings the supply transformer should be large enough to supply the high margin current. If the gate hits an object on closing it will automatically stop and then re-open. If the gate hits an object on opening it will automatically stop. www.elsema.com... -
Page 26: Menu 11 - Motor Speed, Slow Speed Area And Reverse Time Menu 11 - Motor Speed, Slow Speed Area And Reverse Time
Menu 11 – Motor Speed, Slow Speed Area and Reverse Time Motor Speed, Slow Speed Factory Menu No. Adjustable Area and Reverse Time Default 11.1 Open Speed 50% to 125% 11.2 Close Speed 50% to 125% 11.3 Open and Close Slow Speed 25% to 65% 11.4 Open Slow Speed Area... -
Page 27: Menu 12 - Anti-Jam And Braking Menu 12 - Anti-Jam And Braking
After an obstruction has occurred while opening, the gate will either stop, reverse for 2 seconds or reverse fully. 12.7 Closing Direction : Gate Movement after Obstruction After an obstruction has occurred while closing, the gate will either stop, reverse for 2 seconds or reverse fully. www.elsema.com... -
Page 28: Menu 13 - I-Learning Menu 13 - I-Learning
This will allow the user to enter a password to prevent unauthorised users from entering the control card settings. User must remember the password. The only way to reset a lost password is to send the control card back to Elsema. To delete a password select Menu 14.2 and press Master Control. -
Page 29: Menu 16 - Tools Menu 16 - Tools
This allows you to use the controller with travel timers. Motor 1 and 2 can have separate travel timers up to 120 seconds. Used for Hydraulic Motors. 16.9 Slow Speed Ramp Down Time This allows you to change the time it takes the gate to change its speed from fast to slow. www.elsema.com... -
Page 30: Accessories
Solar Panels Pre-made Inductive Loops & Loop Detectors Elsema has a range of Saw-Cut and Direct Burial loops. They are pre-formed with recommended loop sizes for commercial or domestic applications and makes installation quick and easy. - Page 31 The receiver can also be password protected from unauthorised access. Repeater/ booster for PentaFOB remotes ® Flashing Lights Elsema has several flashing lights to act as a warning when the gate or doors is in operation. PentaFOB Programmer ® Flashing Lights...
- Page 32 Keyring remote controls Sliding gate Swinging gate motor kits motor kits Sliding gate Swinging gate motor kits motor kits Motor control cards & Kits ELSEMA PTY LTD 31 Tarlington Place Smithfield, NSW 2164 Australia 02 9609 4668 www.elsema.com...
