Summary of Contents for Saber Compact SB-16

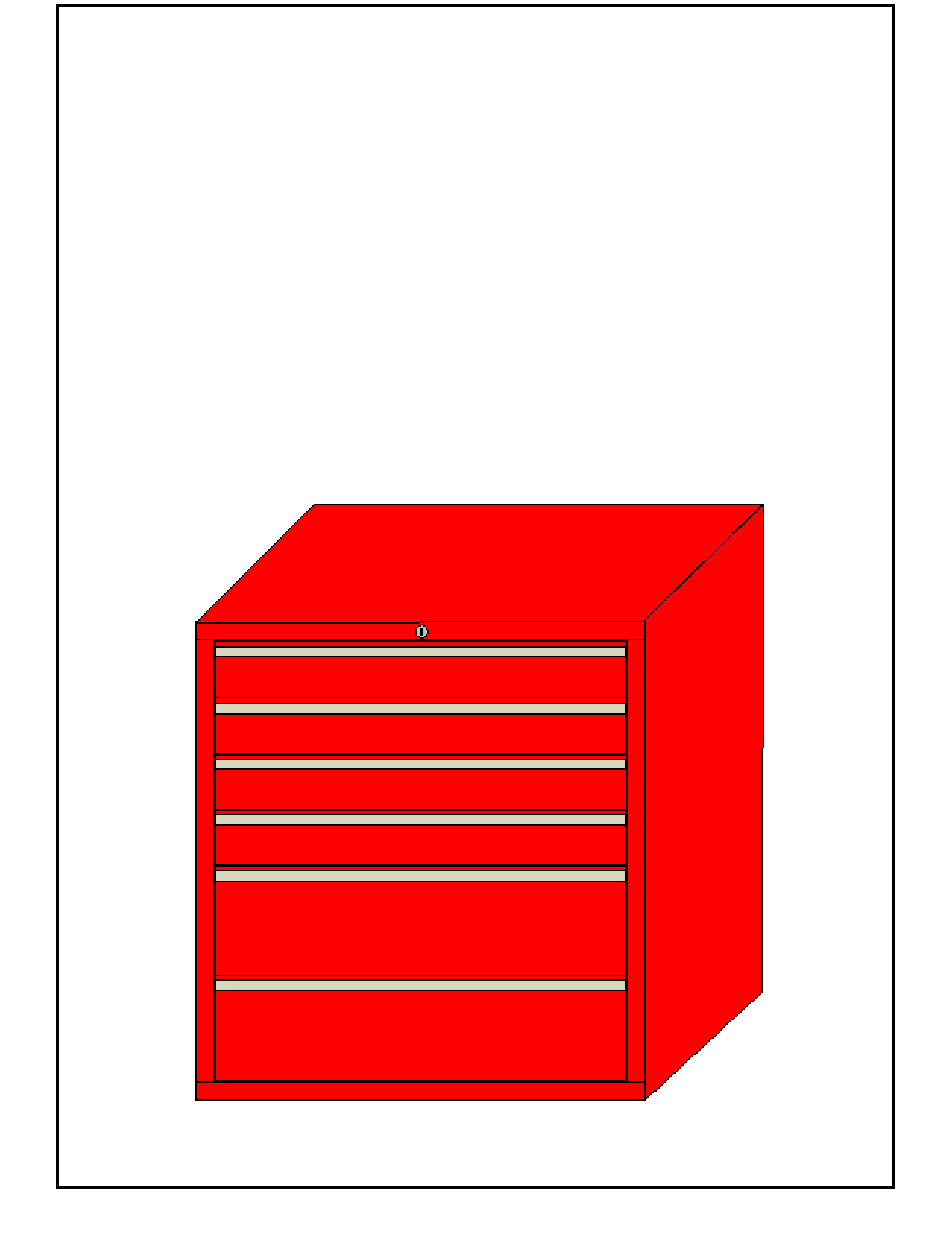

- Page 1 HEAVY DUTY STEEL CABINET ASSEMBLY INSTRUCTIONS SIX DRAWER BASE CABINET 12-2013...
-
Page 2: Parts List
Parts List SIX DRAWER BASE CABINET Part No Description Qty Image Part No Description Image 20 inch SB-14 Cabinet SLD-01 Full Extend Body Slides DW-180 Large Handle Screws Drawer Screws Washers DW-90 Small AP-DW Full Length Drawer Handles Hex Bolt for LK-001 Lock M6-20... - Page 3 Six Drawer Base Cabinet Hardware 4 M6-20 Bolts 4 6MM Nuts 4 Large Washers 4 Wood Screws 24 Handle Screws 24 Handle Washers 6 Aluminum Drawer Pulls Lock & Keys Number 001 Page 3...
-
Page 4: Tools Required
Six Drawer Base Cabinet TOOLS REQUIRED 10 mm Ratchet/Socket Phillips Screw Driver 10 mm Open End Wrench Tape Measure BEFORE YOU BEGIN: Thoroughly Clean the Assembly Area Remove Personal Items that Can Scratch the Cabinet Finish - Watches, Belt, Rings, etc. ... - Page 5 Six Drawer Base Cabinet Label Each Drawer STEP 1 - continued Remove Drawers from Cabinet Body Page 5...
-
Page 6: Important Note
Six Drawer Base Cabinet STEP 2 Attach Aluminum Pulls securely to Drawer Face with Machine Screws. Repeat for all remaining drawers Aluminum Pull Parts Magnum 6 x Aluminum Pulls AP-DW 24 x Machine Screws 24 x Washers IMPORTANT NOTE Do Not Store Keys in Cabinet If keys are locked in cabinet after assembly, drawers can be opened by turning the cabinet upside down. - Page 7 Six Drawer Base Cabinet STEP 3 Move cabinet into its final position. Fasten Adjacent Cabinet Mount Parts cabinet to wall STUDS and/or adjacent cabi- 4 x M6-20 Hex Head Bolts nets as 4 x 6 mm Hex Nuts required. Wall Mount Parts 4 x Drywall Screws 4 x Fender Washers STEP 4...
-
Page 8: Warranty Information
Six Drawer Base Cabinet CARE AND CLEANING WATER BASED ONLY USE A CLEANING SOLUTION TO WIPE DOWN CABINET SURFACES DO NOT USE SOLVENTS AS THEY MAY DAMAGE THE CABINET FINISH OPTIONAL LEGS IMPORTANT NOTE Do not slide cabinet into position with full weight on legs, the shear force may break or damage the leg. - Page 9 CABINET WALL MOUNTING All cabinet models have be designed and structurally reinforced for Wall Mounting. Cabinets elevated above the floor allow easy cleaning and access underneath. In addition to a more professional look and finish, wall mounting eliminates the dust balls around the legs and the inevitable rusting on the leg leveling threads.
