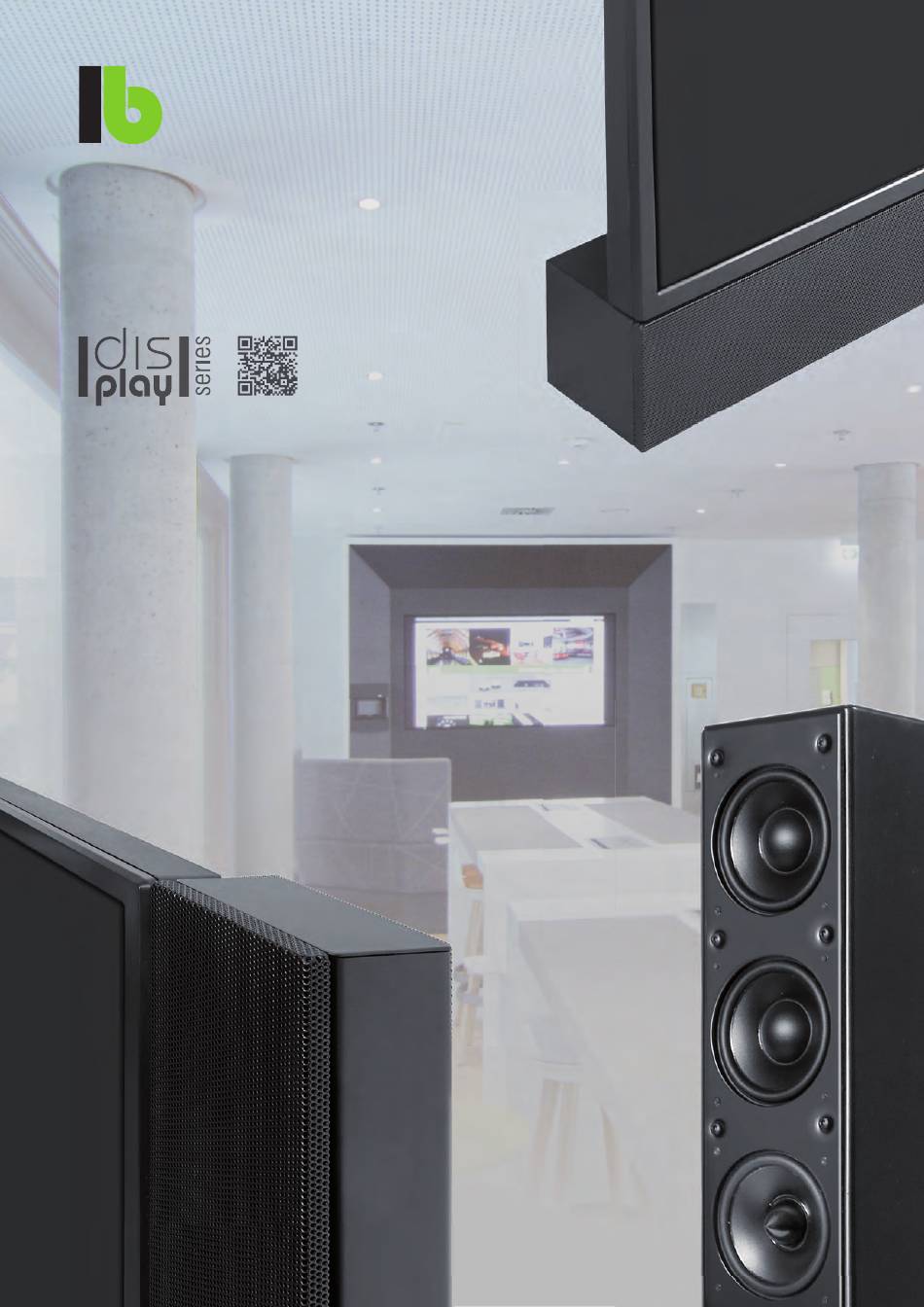

  • Page 1 Operation Manual Display Speakers and Soundbars...
  • Page 2 Important Safety Information THIS UNIT MUST BE EARTHED! CAUTION! Service and repair work must only be carried out by qualified personnel. Do not open the case as there is a risk of electric shock. There are no controls or components inside the device that require Fuse 0,5 A slow you to open the case.

  • Page 3: Table Of Contents

    Content Operation Manual Display Speakers and Soundbars DL Series: Display Speakers Models (overview) ............... 4 Mounts (overview) ............... 5 Technical Data  DL-A 2.0 / DL 2.0 ............... 6  DL-A 2.2 ..................8 Mounts DL-VESA ..................10  Dimensions ................11 ...

  • Page 4: Dl Series: Display Speakers

    DL Series: Display Speakers Model Version Standard model DL-A 2.0 Height 700 mm Customized version Height on measure DL-A 2.0-900 600 – 900 mm DL-A 2.0-1200 900 – 1200 mm DL-A 2.0-1600 1200 – 1600 mm Standard model Height 700 mm DL 2.0 Customized versions Height on measure...

  • Page 5: Mounts (Overview)

    Mounts for Display Speakers VESA Mounts Mounts for display widths 900 – 1150 mm DL-VESA 1150 DL-VESA 1400 1150 – 1400 mm DL-VESA 1650 1400 – 1650 mm DL-VESA 1900 1650 – 1900 mm DL-VESA 2150 1900 – 2150 mm 2150 –...
  • Page 6 DL-A 2.0 Display Speaker Active Stereo Display Speaker Pair with integrated DSP  Active stereo speaker pair with DSP  Very linear frequency range  Optimized speech intelligibility  2 × 50 watts power capacity  Automatic switch-on  Customized versions with height on measure for display heights from 600 up to 1600 mm ...
  • Page 7 Dimensions DL(-A) 2.0-1600 DL(-A) 2.0-1200 DL(-A) 2.0-900 DL(-A) 2.0 Standard Front Back Sides Lids top/bottom Speaker Connection DL-A 2.0 Speaker Connection Right speaker Backside Left speaker passive aktive DC Cable Lenght Power Supply CCE Power Cord 24V DC 40 watts 1,5 m 2-pole cable with connector Stereo Input Cable...

  • Page 8: Technical Data

    DL-A 2.2 Display Speaker Active Stereo Display Speaker Pair with integrated Subwoofers and DSP  Active 2-way stereo speaker pair with DSP  Very linear frequency range  Optimized speech intelligibility  Integrated subwoofer  2 × 50 + 2 × 100 watts power capacity ...
  • Page 9 Dimensions DL-A 2.2-1600 DL-A 2.2-1200 DL-A 2.2-900 DL-A 2.2 Standard Front Back Sides Lids top/bottom Speaker Connection DL-A 2.2 Speaker Connection Right speaker Backside Left speaker passive aktive DC Cable Lenght Power Supply CCE Power Cord 24V DC 90 watts 1,5 m 4-pole cable with connector Stereo Input Cable...
  • Page 10 DL-VESA | Mount for Display Speakers The DL-VESA mounts are designed to fi x our display speakers of DL series on displays with VESA-points at rear. The mounts are adjustable for diff erent display widths and heights. Model widht of display widht of carrier DL(-A) 2.0 DL-A 2.2 DL-VESA 1150 900 –...
  • Page 11 DL-VESA Dimensions Carrier DL-VESA 1150 DL-VESA 1400 1121 DL-VESA 1650 1371 DL-VESA 1900 1621 DL-VESA 2150 1871 DL-VESA 2400 2121 Extension L-bracket T-bracket left T-bracket right...

  • Page 12: Dl-Vesa

    DL-VESA | Assembly with DL (-A) 2.0 Variante A For 200 – 400 mm VESA standard mounts. Attach the T-shaped brackets directly to the L-shaped brackets; position the T-brackets symmetrically, with the baseplates facing outwards. The L-shaped brackets can be attached forwards or backwards depending on the depth.
  • Page 13 Variante C For asymmetrical VESA standard mounts. Attach the T-brackets directly to the L-brackets; use two identical T-brackets on each side. The L-brackets can be mounted on the front or back of the T-bracket depending on the depth of the display. Variante D For very deep displays.
  • Page 14 DL-VESA | Assembly with DL (-A) 2.0 Variante E For VESA standard mounts under 200 mm. Attach the T-brackets directly to the L-brackets; position the T-brackets symmetrically, with the baseplates facing outwards. Variante F For a VESA standard mounts over 600 mm. Attach the T-brackets directly to the L-brackets;...
  • Page 15 DL-VESA | Assembly with DL-A 2.2 Variante G For flat displays used with deep DL-A 2.2 display speakers, the T-brackets are mounted facing forwards to compensate for the gap. Variante H If you need extra length, use extension plates between the T-brackets and the L-brackets.

  • Page 16: Assembly

    WH 80 | Wall Mount (Pair) The wall mount WH 80 is adjustable for a wall distance from 35 up to 110 mm (two pairs are needed per speaker-pair). Fix the L-brackets A with the provided Fix the L-brackets B on the wall and The speakers can also be fi xed inclined.
  • Page 17 SH 50 | Pivotable Wall Mount The pivotable wall mount SH 50 has a wall distance of 33 mm and is pivotable up to 45°. (Two peaces are needed per speaker pair) Fix the U-bracket on the wall and connect Fix the L-brackets with the provided The speakers can also be swivelt up to 45°...

  • Page 18: Sb Series: Soundbars

    SB Series: Soundbars Model Version Standard model Width 960 mm SB-A 2.0 Customized versions Widht on measure SB-A 2.0-1200 960 – 1200 mm SB-A 2.0-1600 1200 – 1600 mm SB-A 2.0-2000 1600 – 2000 mm SB-A 2.0-2350 2000 – 2350 mm Standard model Width 960 mm SB 2.0...
  • Page 19 Mounts for Soundbars VESA Mount SB-VESA SB-VESA SB-VESA For display sizes approx. 40“ – 100“ inches The SB-VESA universal-mount is designed for fi xing our soundbars on the display with VESA-Points at rear. For alignment to various displays the mounts are adjustable in wide limits.
  • Page 20 SB-A 2.0 Soundbar Active Stereo Soundbar with integrated DSP Active stereo soundbar with DSP  Very linear frequency range  Optimized speech intelligibility  2 × 50 watts power capacity  Automatic switch-on  Customized versions on measure for display widths ...
  • Page 21 Dimensions Individual soundbars with a width from 960 mm up to 2350 mm. SB(-A) 2.0 Standard 960 mm Threads M 6 Custom Width 960 ... 1200 mm SB(-A) 2.0-1200 Threads M 6 SB(-A) 2.0-1600 Custom Width 1200 ... 1600 mm Threads M 6 SB(-A) 2.0-2000 Custom Width 1600 ...

  • Page 22: Sb-A 2.2

    SB-A 2.2 Soundbar Active Stereo Soundbar with integrated Subwoofers and DSP Active 2-way stereo soundbar with DSP  Very linear frequency range  Optimized speech intelligibility  2 × 50 + 2 × 100 watts power capacity  Automatic switch-on ...
  • Page 23 Abmessungen Individual soundbars with a width from 1200 mm up to 2350 mm. SB-A 2.2 Standard 1200 mm Threads M 6 SB-A 2.2-1600 Custom width1200 ... 1600 mm Threads M 6 SB-A 2.2-2000 Custom width 1600 ... 2000 mm Threads M 6 SB-A 2.2-2350 Custom width 2000 ...
  • Page 24 SB-VESA | mount for soundbars The SB-VESA universal-mount is designed for fi xing our soundbars on displays with VESA-(Pattern)-Points at rear. For alignment to various displays the mounts are adjustable in wide limits. Model for display sizes SB(-A) 2.0 SB-A 2.2 SB-VESA 1150 approx.
  • Page 25 Parts of SB-VESA Mount The parts of the SB-VESA mount can be used different, depending on the dimensions of display and speaker model (see page 26 – 29). 2 × L-bracket 2 × Extension 1 × T-bracket left 1 × T-bracket right 6 ×...

  • Page 26: Sb-Vesa

    SB-VESA | Assembly with SB(-A) 2.0 Variante A L-brackets For 200 – 400 mm VESA standard mounts. Hexagon screw M6×16 Belleville washer M6 Attach the T-shaped brackets directly to the L-shaped brackets; position the T-brackets symmetrically, with the baseplates facing outwards. The L-shaped brackets can be attached forwards or backwards depending on...
  • Page 27 Variante C Spacers for the upper VESA points in combination with larger displays. For larger displays attach the L-brackets only to the lower VESA-points. To compensate for the gap, use the 5 mm spacers for the upper VESA-points. Extension Variante D For VESA standard mounts under 200 mm.
  • Page 28 SB-VESA | Assembly with SB(-A) 2.0 Variante E For a VESA standard mounts over 600 mm. Attach the T-brackets directly to the L-brackets; position the T-brackets symmetrically with the baseplates facing inwards. The L-brackets can be attached forwards or back- wards depending on the depth of the display.
  • Page 29 SB-VESA | Assembly with SB-A 2.2 Variante G For flat displays used with deep SB-A 2.2 soundbars, the T-brackets are mounted facing forwards to compensate for the gap. Variante H If you need extra length, use extension plates between the T-brackets and the L-brackets.

  • Page 30: Wh 80 Wall Mount

    WH 80 | Wall Mount (pair) The wall mount WH 80 is adjustable for a wall distance from 35 up to 110 mm (one pair is needed per sounbar). Fix the L-brackets A with the provided screws at the rear of the speaker (hexagon screws M 6 ×...
  • Page 31 WH 80 Dimensions / Assembly L-bracket A Assembly L-bracket B Wall distance from 35 up to 110 mm...
