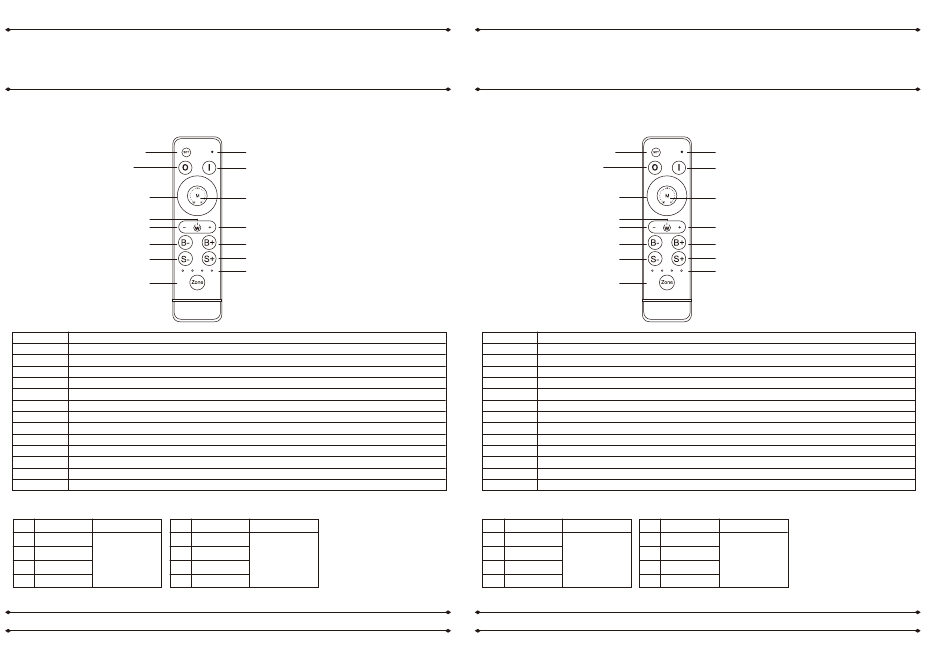

Type 3: Control the RGB LED strip
Set Key
OFF
Colour Ring
White ON/OFF
7 colours hot key -
Brightness - (1024 levels)
Speed -
Zone selection
Name
SET Non function
I Turn on
O
Turn off
Colour ring Static colour options, 64 colours in total
M Dynamic modes, 8 modes in total
W White on/off hot key
-
6 static colours (cyan, purple, yellow, blue, green, red)
+ 6 static colours ( red, green, blue, yellow, purple, cyan)
B- Brightness – for static colours by 1024 levels. Long-press can get fast adjusting.
B+ Brightness + for static colours by 1024 levels. Long-press can get fast adjusting.
S- Speed down for dynamic mode (100 levels). hold on the key to get fast adjusting.
S+ Speed up for dynamic mode (100 levels). hold on the key to get fast adjusting.
Zone Zone selection, hold on the key in 2 seconds to get "all-control"
M mode: 8 dynamic modes as below
No Patterns Remarks No
1 White breathe 5
Speed is adjustable,
2 3 colours jumpy 6
brightness is
3 7 colours jumpy 7
unadjustable
4 3 colours fade 8
The Installation must be carried out by a qualified electrician
Note:
RF signal indicator
ON
Mode
7 colours hot key +
Brightness - (1024 levels)
Speed +
Zone indicator
Description
Patterns Remarks
7 colours fade
Speed is adjustable,
R/G cross fade
brightness is
R/B cross fade
unadjustable
G/B cross fade
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product,
consult a competent electrician
Product technical information and specification may change over time without prior notification. For the latest technical
information please visit our web site www.robus.com or robusdirect.com
Type 4: Control the RGBW LED strip
Set Key
RGB OFF
Colour Ring
W ON/OFF
W brightness -
RGB Brightness - (1024 levels)
Speed -
Zone selection
Name
SET Non function
I RGB Turn on
O
RGB Turn off
Colour ring Static colour options, 64 colours in total
M Dynamic modes, 8 modes in total
W W channel: Turn ON/OFF
-
W channel - : brightness -, 1024 levels, long-press can get fast adjusting
+ W channel + : brightness +, 1024 levels, long-press can get fast adjusting
B- Brightness – for RGB static colours by 1024 levels. Long-press can get fast adjusting.
B+ Brightness + for RGB static colours by 1024 levels. Long-press can get fast adjusting.
S- Speed down for dynamic mode (100 levels). hold on the key to get fast adjusting.
S+ Speed up for dynamic mode (100 levels). hold on the key to get fast adjusting.
Zone Zone selection, hold on the key in 2 seconds to get "all-control"
M mode: 8 dynamic modes as below
No Patterns Remarks No
1 White breathe 5
Speed is adjustable,
2 3 colours jumpy 6
brightness is
3 7 colours jumpy 7
unadjustable
4 3 colours fade 8
The Installation must be carried out by a qualified electrician
Note:
RF signal indicator
RGB ON
Mode
W brightness +
RGB Brightness - (1024 levels)
Speed +
Zone indicator
Description
Patterns Remarks
7 colours fade
Speed is adjustable,
R/G cross fade
brightness is
R/B cross fade
unadjustable
G/B cross fade
