Hardware:
Tools needed:

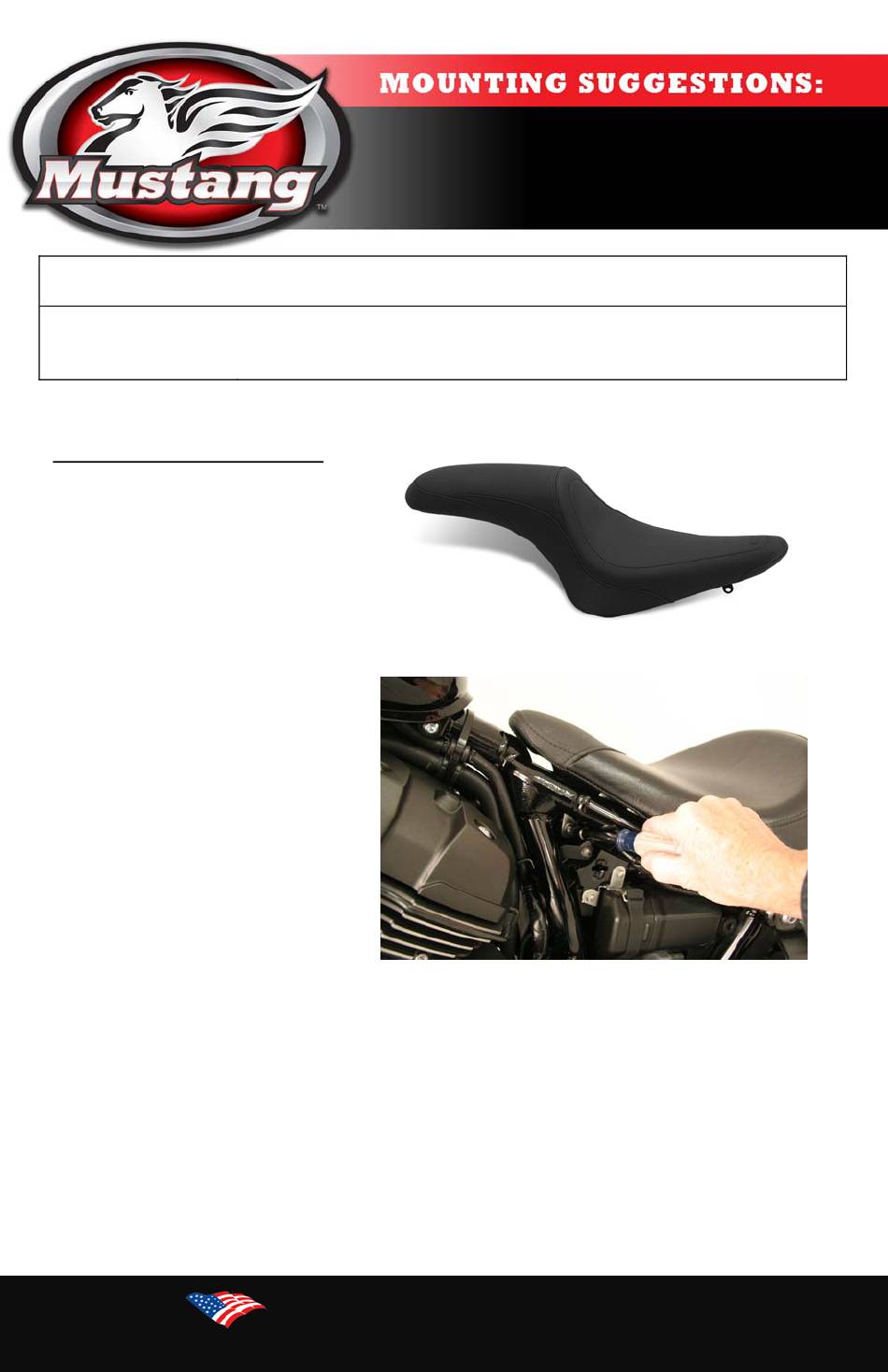

Removal of Stock Seat:
1. Insert the ignition key
into the left side panel
below the seat. Turn the
key clockwise and gently
pull the panel's plunger
pin out of the body to
remove the panel.
2. Using a 10mm socket
wrench, remove the bolt
which secures the
forward seat bracket
from the frame.
3. Lift the nose of the seat and slide forward to remove the solo seat.
Handcrafted in the USA
Rear mounting bracket
10mm socket wrench
4mm Allen wrench
Yamaha
Bolt 2013-2018
One-piece Seat
mustangseats.com
1
