Installing and Cabling the 10BaseFL Mod-MAC (DLXFL)
Introduction
The 10BaseFL Mod-MAC is part of the Mod-MAC product family (which also includes the 100BaseTX and
100BaseFX). It provides connectivity between a DIGITAL MultiSwitch 612EX and a network device using
10BaseFL. The 10BaseFL Mod-MAC is a single-port Ethernet device that operates in the 850 nm window over
fiber optic media at distances of up to 2km. The 10BaseFL Mod-MAC only operates in the DIGITAL MultiSwitch

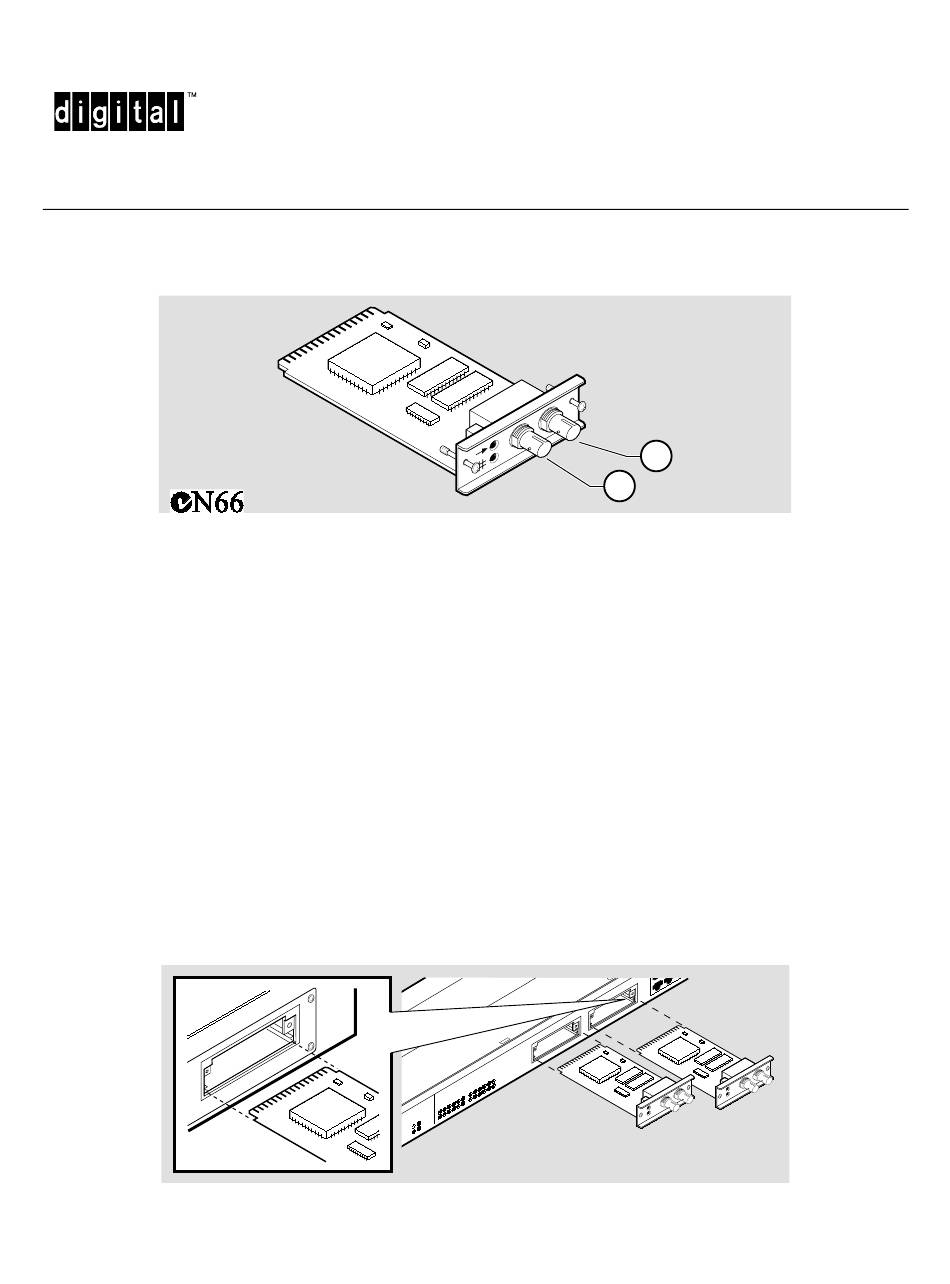

612EX. The 10BaseFL Mod-MAC contains a transmit (1) and receive (2) connector.
Installation Procedure
Before you install a 10BaseFL Mod-MAC, make sure that the module has no power connected to it. The 10BaseFL
Mod-MACs are not hot-swappable. To install the 10BaseFL Mod-MAC, complete the following steps. A Phillips-
head screwdriver is required.
1
Remove the dust cap from the module's modular interface connectors.
2
Hold the 10BaseFL Mod-MAC by its bezel so that it is parallel with a slot opening on the module.
EK-DLXFL-IM. A01
2
1
NPB-0583-96F
NPB-0612-96F
Advertisement
Table of Contents
Related Manuals for Digital Equipment 10BaseFL Mod-MAC
Summary of Contents for Digital Equipment 10BaseFL Mod-MAC
- Page 1 612EX. The 10BaseFL Mod-MAC contains a transmit (1) and receive (2) connector. Installation Procedure Before you install a 10BaseFL Mod-MAC, make sure that the module has no power connected to it. The 10BaseFL Mod-MACs are not hot-swappable. To install the 10BaseFL Mod-MAC, complete the following steps. A Phillips- head screwdriver is required.
- Page 2 Insert the 10BaseFL Mod-MAC and align its sides with the guide in the module’s slot opening. Push the 10BaseFL Mod-MAC into the slot until it is firmly seated inside the module. Align and securely fasten the two Phillips-head screws on the 10BaseFL Mod-MAC bezel.
