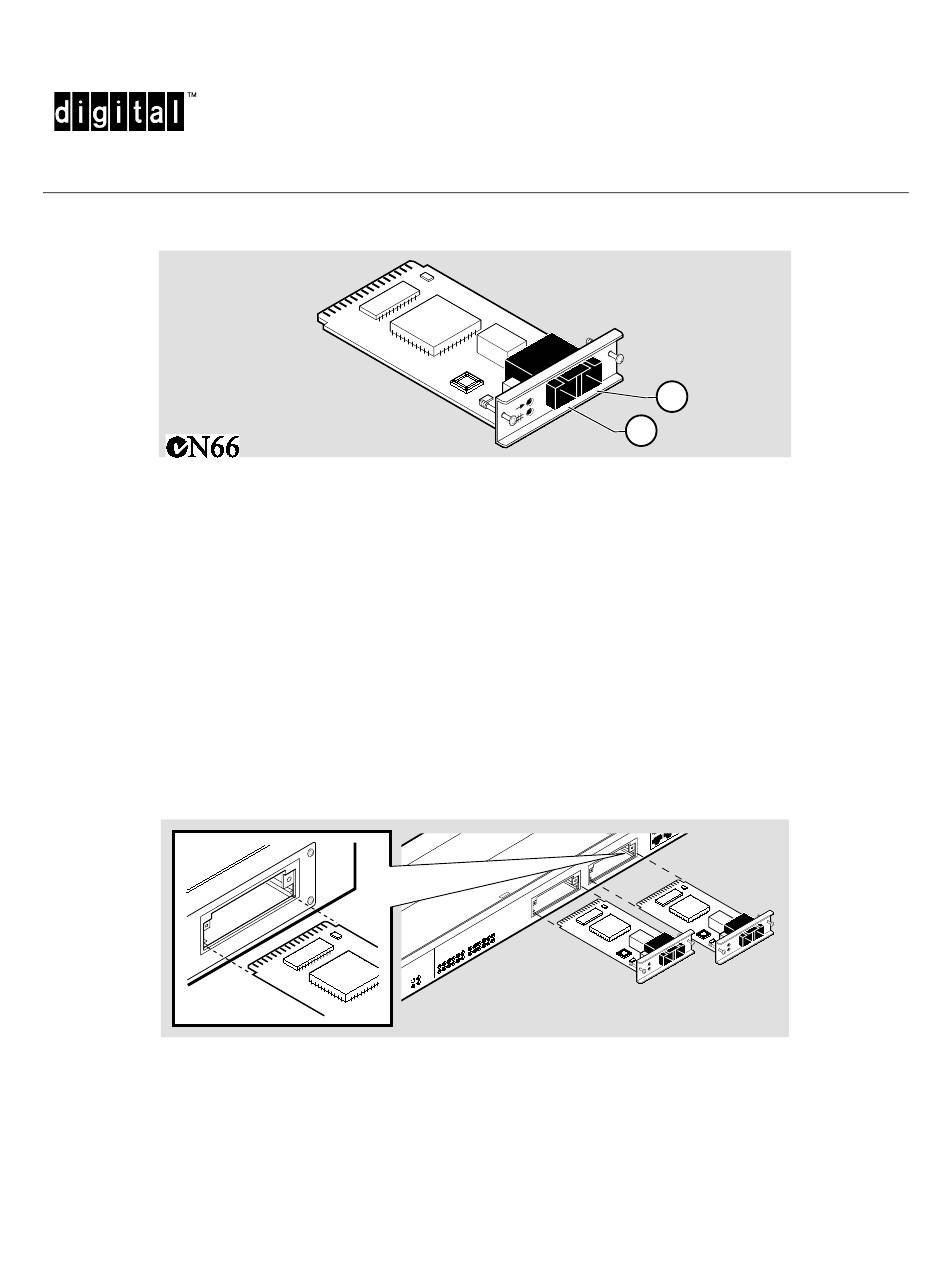

Installing and Cabling the 100BaseFX Mod-MAC (DLXFX)

Introduction

The 100BaseFX Mod-MAC is part of the Mod-MAC product family (which includes the 100BaseTX and
10BaseFL). It provides connectivity between a DIGITAL MultiSwitch 612EX and network devices using
100BaseFX Multimode Fiber (MMF). The 100BaseFX Mod-MAC only operates in the DIGITAL MultiSwitch
612EX. As illustrated above, the 100BaseFX Mod-MAC contains a transmit (1) and receive (2) connector.

Installation Procedure

Before you install a 100BaseFX Mod-MAC, make sure that the module has no power connected to it. The
100BaseFX Mod-MACs are not hot-swappable. To install the 100BaseFX Mod-MAC, complete the following
steps. A Phillips-head screwdriver is required.
1
Remove the dust cap from the module's modular interface connector.
2
Hold the 100BaseFX Mod-MAC by its bezel so that it is parallel with a slot opening on the module.
3
Insert the 100BaseFX Mod-MAC and align its sides with the guide in the module's slot opening.
4
Push the 100BaseFX Mod-MAC into the slot until it is firmly seated inside the module.
5
Align and securely fasten the two Phillips-head screws on the 100BaseFX Mod-MAC bezel.
EK-DLXFX-IM. A01
