CYBEX 13000K004 Installation Instructions

Kit No. 13000K004
Kit No. 13000K005
NOTE: This instruction sheet describes how to install
the 5 lb and 7.5 lb half weight options for the
VR1 series machines.
Tools Required
• 7/32" Allen wrench
• 9/16" Socket or wrench
NOTE: Two people will be required to perform this
procedure.
1. Read and understand all instructions thoroughly
before installing this kit.

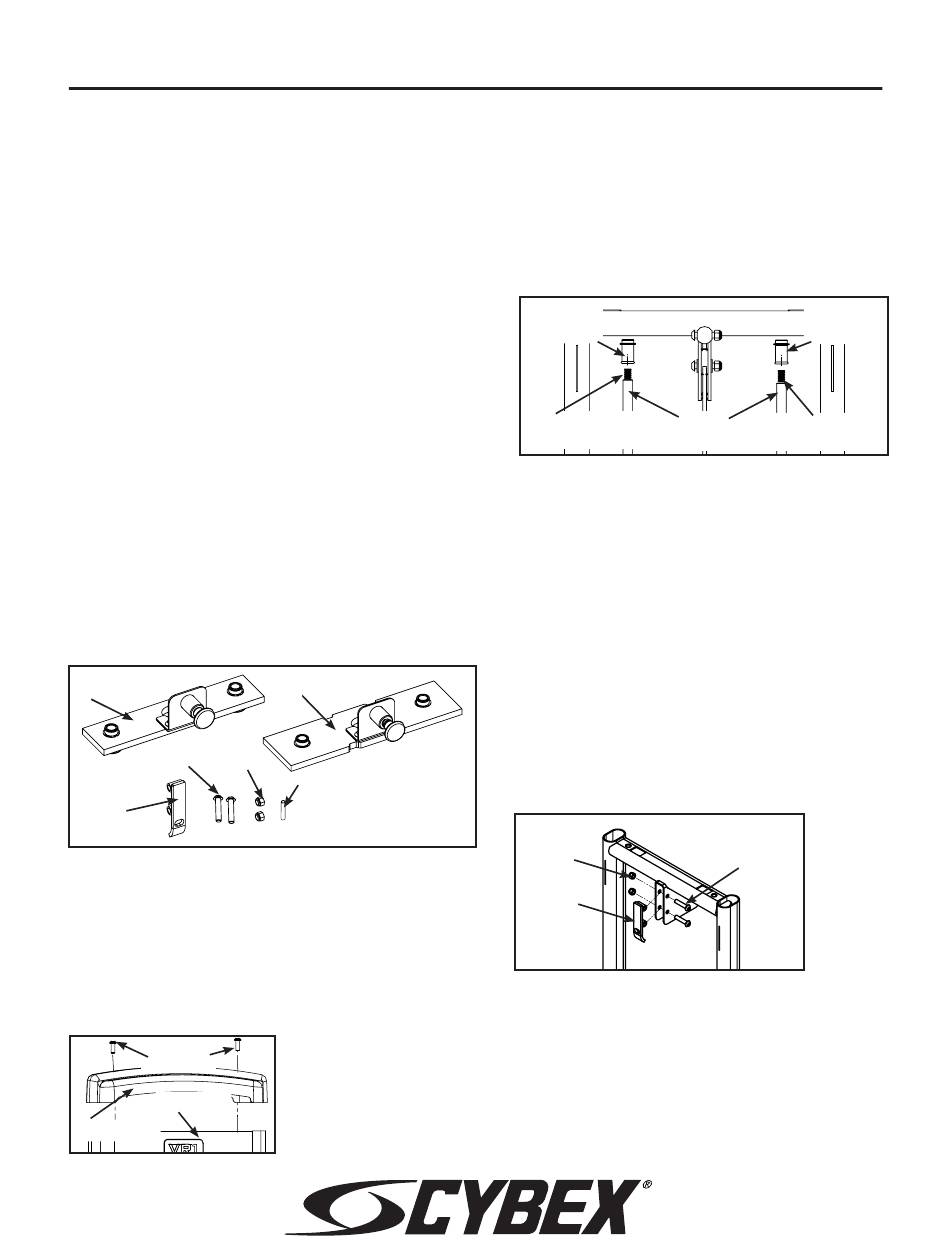

2. Verify kit contents. See Figure 1. NOTE:
Kit will contain either A or B.
A. 5 lb half weight assembly (1)
B. 7.5 lb half weight assembly (1)
C. Latch (1), 13000-208
D. BHSCS .375-16 x 1.75 (2), JC700424
E. Locknut .375-16 nylon, (2), HN704901
F. Roll pin 1.88 x 1.12 (1) HP286819
A
D
E
C
Figure 1
3. Remove panel.
A. Using a 7/32" Allen wrench, remove the
two Button Head Socket Cap Screws
(BHSCS) and top cap and set aside.
See Figure 2.
BHSCS
Panel
Top Cap
Figure 2
5 LB and 7.5 LB HALF WEIGHT
• Punch
• Hammer
B
F
B. Carefully lift panel up and out of machine.
C. Slide spring loaded guide rod cap down
guide rod until cap is clear of frame. NOTE:
Guide rod cap is spring loaded. See Figure 3.
Guide
Rod Cap
Compression
Spring
Figure 3
D. Slowly release grasp of guide rod cap. See
Figure 3. NOTE: Guide rod cap contains
a compression spring that will fly if grasp is
not released slowly.
F. Remove guide rod caps and set aside.
4. Install latch.
A. Locate latch (C), two BHSCS (D) and two
locknuts (E) from kit.
B. Using a 7/32" Allen wrench and 9/16" wrench
or socket, install latch (C) as shown in
Figure 4.
E
C
Figure 4
Installation Instructions
Guide
Rod Cap
Guide
Compression
Rods
Spring
D
