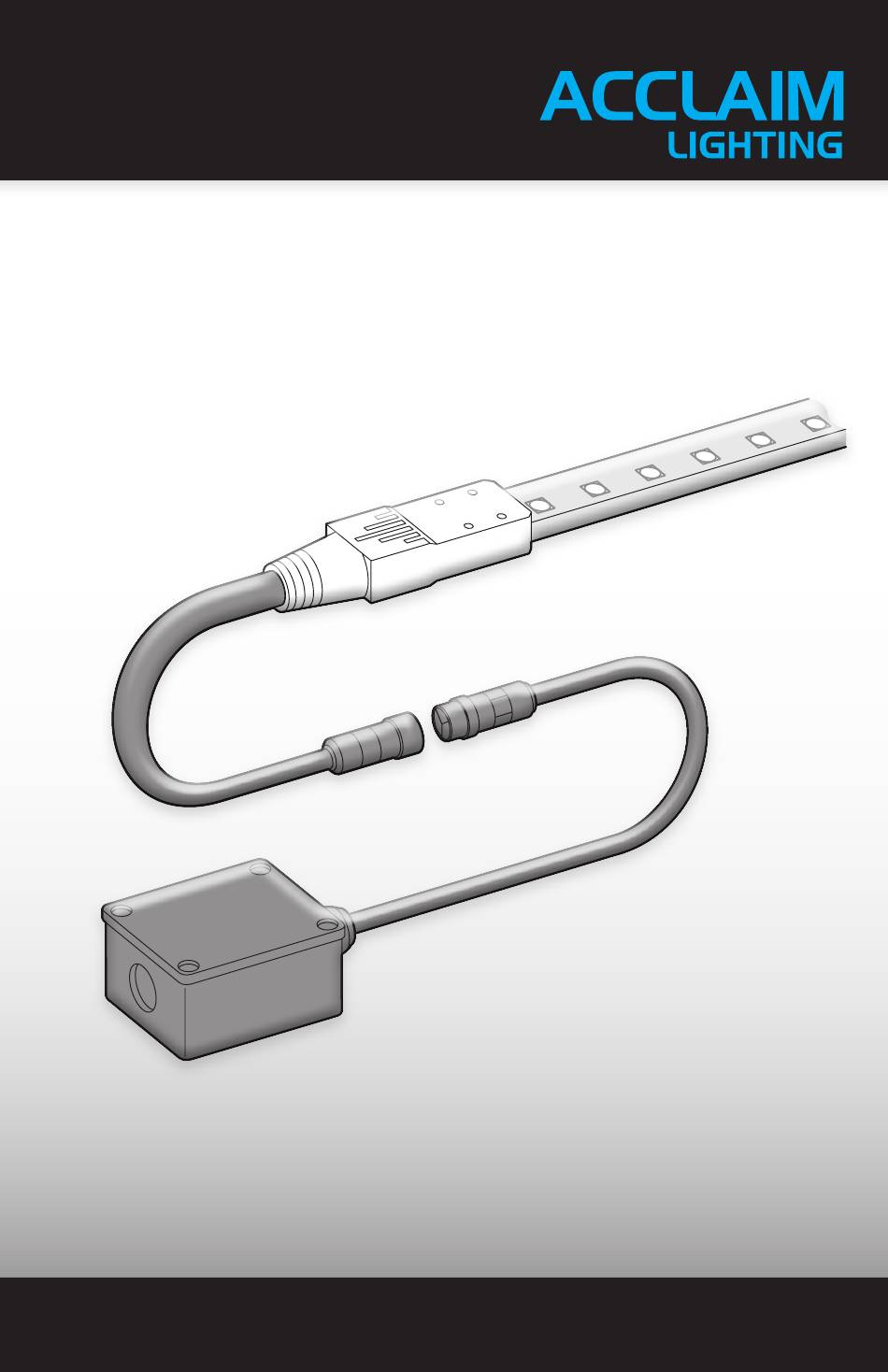

- Page 1 Flex 120 User guide...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............2 Welcome Safety Maintenance Cleaning Supplied items Accessories INSTALLATION ............4 Mounting Connections Dimming control FURTHER INFORMATION ........8 Troubleshooting Specifications Limited product warranty www.acclaimlighting.com... -
Page 4: Introduction
INTRODUCTION WELCOME Welcome to Flex 120 from Acclaim Lighting. Flex 120 is a low profile, exterior rated linear LED strip that can be directly powered from AC mains dimmers to fit seemlessly with existing control systems. Fully sealed lengths are supplied from 1.64 feet (0.5m) up to 65 feet (20m), with custom lengths also available to order. -
Page 5: Supplied Items
SUPPLIED ITEMS Flex 120 strip with connection box and feed cables ACCESSORIES Low profile aluminum channel 1.64’ (0.5m) [FACCH500] 3.28 (1m) [FACCH1000] 6.56’ (2m) [FACCH2000] Tall profile aluminum channel 1.64’ (0.5m) [FACTPC500] 3.28 (1m) [FACTPC1000] 6.56’ (2m) [FACTPC2000] Lenses for all channels... -
Page 6: Installation
• Flex 120 strips MUST NOT be cut after manufacture - doing so will expose mains level power rails and will void your warranty. • Flex 120 strips are rated at IP66 for wet and dry locations, however, they must not be installed where water can accumulate. - Page 7 Flex 120 strips. Once the Flex 120 strip is in place you can fit the lens(es), if used. Insert the lens at one end of the channel and gently press it down until it clicks into place. Then run your hand along the lens to clip the remainder into place.
-
Page 8: Connections
CONNECTIONS Each Flex 120 strip is supplied with an IP66-rated connection box. The box has a Ø0.87” (22mm) opening for a suitable conduit fixing and includes a 10’ (3m) feed cable with IP67 output connector. The connector links directly with the one fitted to each Flex 120 strip. -
Page 9: Dimming Control
DMX OR 0-10V CONTROL Additionally, Flex 120 strips can be controlled by either DMX or 0-10V (source or sink) inputs by using the optional Acclaim Lighting UDM (Universal Dimming Module): DMX or 0-10V... -
Page 10: Further Information
FURTHER INFORMATION TROUBLESHOOTING NO LIGHT OUTPUT IS VISIBLE WHEN EXPECTED. • Check that power is correctly applied to the fixture and that there is no damage to the power input cord. • If external DMX control is being used, check that the DMX address set within the fixture matches that being output by the controlling source device. -
Page 11: Specifications
SPECIFICATIONS Colors 2700K, 3000K, 3500K, 4000K, 5000K, Red, Green, Blue or Amber Photometrics Up to 371 lumens per 1.64’ (0.5m) section, CRI >80 Beam angle Lumen maintenance (L 50,000 hours (25 Operating voltage 120VAC Power consumption 3.8W per foot, 12.4W per meter Control ELV (reverse phase) or sinewave dimming, 0-10V*, DMX* * requires the use of the optional UDM module) -
Page 12: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 13 www.acclaimlighting.com...
- Page 14 www.acclaimlighting.com...
