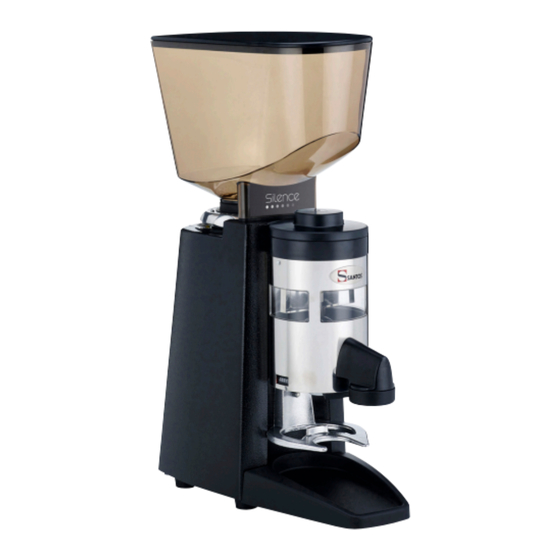

Santos Coffee Grinder
Model Santos 40
Item 44638
Instruction Manual
Revised - 01/21/2020
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Santos 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan Santos 40

Summary of Contents for Omcan Santos 40

  • Page 1 Santos Coffee Grinder Model Santos 40 Item 44638 Instruction Manual Revised - 01/21/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model Santos 40 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 6 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Guideline 2002/96/EC (WEEE) – part Professional Equipment – so that it can be either recycled or dismantled in order to reduce any impact on the environment. For more information, please contact your Retailer or Omcan. For eliminating or recycling components of equipment, please contact a specialized company or...

  • Page 6: Technical Specifications

    1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

  • Page 7: Operation

    Operation ASSEMBLY AND PREPARATION (FIG. A) 1. Clip the ground coffee collector (3) onto the base (4). 2. Put the dose measurer lid (24) in place. 3. Put the bean container (2) in place on the grinder body adjustment nut (5). 4.

  • Page 8: Maintenance

    Operation ADJUSTING THE MEASURED DOSE OF GROUND COFFEE The dose measurer should be cleaned regularly to prevent conglomerated blocks of coffee on the cross bars from affecting the dose measurer setting. The machine is factory-set for a measure of approximately 7g. 1.
  • Page 9 Maintenance SPARE PARTS This machine requires no specific maintenance. The bearings are lubricated for life. If work is required to replace worn parts such as the grindstones or the electric or other components, refer to the parts list. For all spare part orders state: •...

  • Page 10: Troubleshooting

    Maintenance 15. Unscrew the “adjustment nut” (5) by 5 to 10 notches. 16. With coffee, adjust the ground coffee setting (see “Coffee grinding adjustment” section). Troubleshooting Carefully determine the reason for the machine stopping. In all circumstances, if the problem persists, disconnect the electric power supply (unplug the mains supply lead plug (10)) and call on someone from the maintenance department or contact an approved SANTOS dealer.
  • Page 11 Check that the bean container shutter is in the open position. • Replace the grindstones. • Check the dose measurer seal is properly positioned. REFERENCE Manufacturer Model Item Number Model Number Description Number Santos Silent Bar Espresso Coffee Grinder 44638 Santos 40 40AV1N 40AV1 120V/60/1 cULus...
  • Page 12 Figure Drawings...
  • Page 13 Figure Drawings...

  • Page 14: Parts Breakdown

    Parts Breakdown Model Santos 40 44638...
  • Page 15 Parts Breakdown Model Santos 40 44638 Item No. Description Position Item No. Description Position Item No. Description Position Set of 2 Santos Grinding Discs High Stator Only 1 Phase 100-120V 50/60Hz 40947 00001B 69803 40515B 69834 Brown Painted Base for 40AV1N...
  • Page 16 Parts Breakdown Model Santos 40 44638 Item No. Description Position Item No. Description Position Item No. Description Position Cap Nut H M 8 Stainless Steel for 69857 Rubber Buffer Diam. 12 H 4 for 40AV1N 40746 69871 40768A 40854 Medium Spider for 40AV1N...

  • Page 17: Electrical Schematics

    Electrical Schematics Model Santos 40 44638...

  • Page 18: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 19: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
