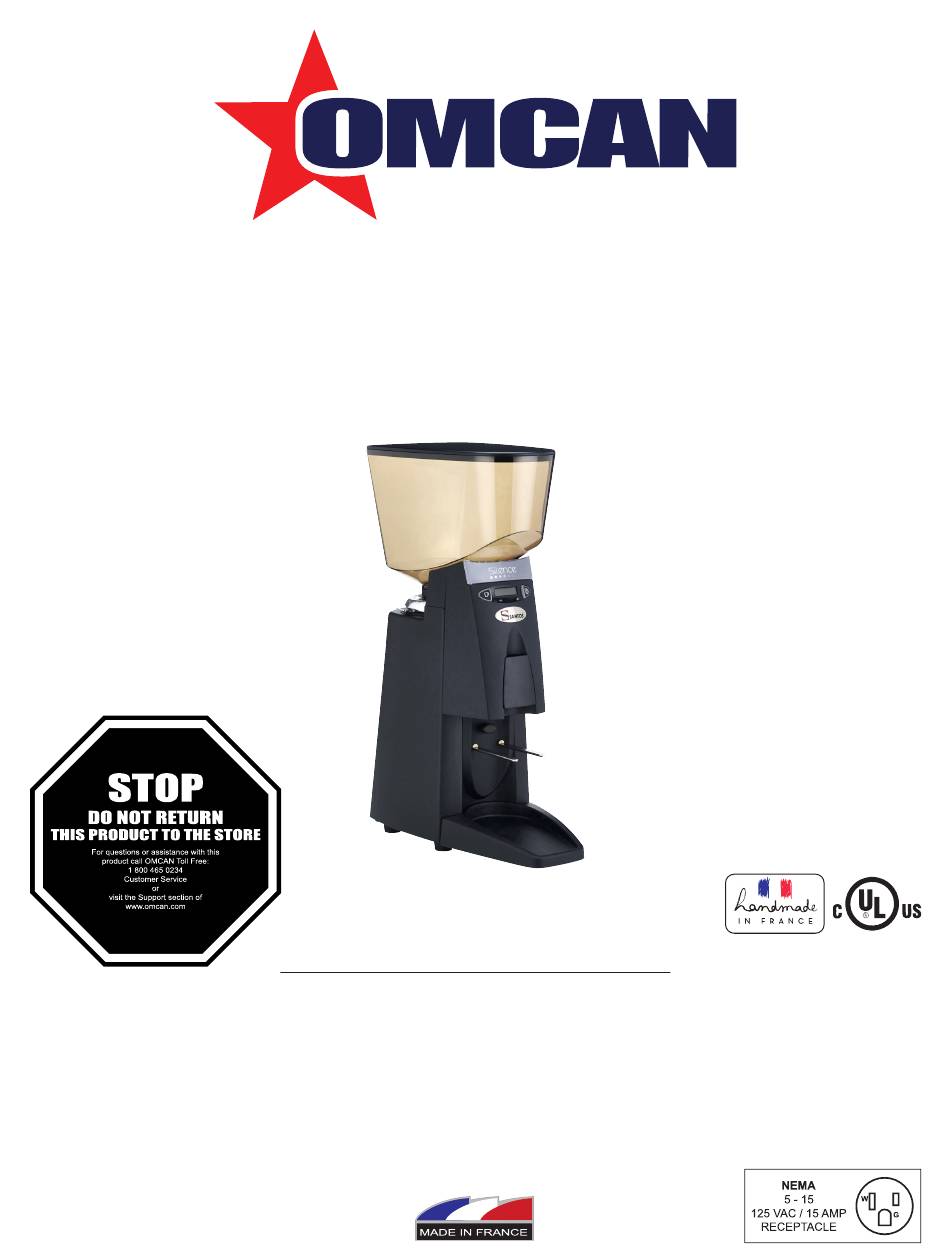

- Page 1 Santos Coffee Grinder Model Santos 55 Item 44637 Instruction Manual Revised - 01/21/2020 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model Santos 55 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Operation --------------------------------------------------------------------------------------- 7 - 10 Maintenance --------------------------------------------------------------------------------- 11 - 12 Troubleshooting ----------------------------------------------------------------------------- 12 - 14... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 9. Unplug the appliance before carrying out any work on it: cleaning, maintenance or repair. 10. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a Omcan approved dealer or a person with similar qualifications to avoid any danger.
- Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 7: Technical Specifications
Technical Specifications Model Santos 55 Power 800 W Output Up to 25 kgs. / hour Variable Speed 2800 - 3500 RPM Electrical 120V / 60Hz / 1Ph Dimensions 8” x 16” x 23” / 203 x 406 x 584mm Packaging Dimensions 18”... -
Page 8: Operation
Operation changing the display mode. Note: On turning on the power or after having changed the timer values, “mode 1” is automatically active. Operating either of the 2 measure selection keys, or changing the timers, activates the active display mode before the appliance stops. MODE 1: DISPLAY OF THE TOTAL MEASURES DISTRIBUTED The Total counter cannot be reset;... - Page 9 Operation GRINDING ADJUSTMENT CARE: Changing the grinding setting will always require resetting the timers. See the information chart in the next section. Note: Never operate the machine with the two grindstones in contact. Letting the grindstones come into contact may result in the grindings jamming in the grinder unit and premature wear of the grindstones.
- Page 10 Operation Explanatory notes for the table: For example: you have made your grinding setting, which corresponds to “Notch 6” on the grinding adjustment nut (5). If you want to obtain a 7g measure of coffee, you will need to set the value of the timer to between 080 and 090 for an espresso type coffee.
-
Page 11: Maintenance
The electrical specifications (16) recorded under the machine. REPLACING THE GRINDSTONES IMPORTANT: always replace both 2 grindstones (9) at the same time. Use Omcan grindstones. Please refer to the specifications table of the machine to order the reference of the set of grindstones to match your machine. -
Page 12: Troubleshooting
In all circumstances, if the problem persists, disconnect the electric power supply (unplug the mains supply lead plug (10)) and call on someone from the maintenance department or contact an approved Omcan dealer. Where appropriate, do not forget to close the bean container shutter (6) before removing the container. - Page 13 “reset” position, allow the machine to cool down before repeating the operation. If the problem persists, turn the machine electric power off (unplug the mains power lead (10)) and call on someone from the maintenance department or contact an approved Omcan dealer. THE GROUND COFFEE DOSE MEASUREMENT IS NOT CONSISTENT •...
- Page 14 2 buttons (20 or 21). • Select one of the 2 buttons (20 or 21). REFERENCE Manufacturer Model Item Number Model Number Description Number Santos Bar Espresso Coffee Grinder 55V1 44637 Santos 55 55V1 120V/60/1 cULus...
- Page 15 Figure Drawings...
- Page 16 Figure Drawings...
-
Page 17: Parts Breakdown
Parts Breakdown Model Santos 55 44637... - Page 18 Parts Breakdown Model Santos 55 44637 Item No. Description Position Item No. Description Position Item No. Description Position Set of 2 Santos Grinding Discs High 40947 00001B 69622 Silentbloc for 55V1 55537 69659 Painted Base Black for 55V1 55651 Output for 55V1...
- Page 19 Parts Breakdown Model Santos 55 44637 Item No. Description Position Item No. Description Position Item No. Description Position 69691 Screw CBX 4x12 Auto for 55V1 55832 69694 Tamper Washer for 55V1 55845 69698 Screw CBX 4x25 Auto for 55V1 55851...
-
Page 20: Electrical Schematics
Electrical Schematics Model Santos 55 44637... -
Page 21: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 22 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 23: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
